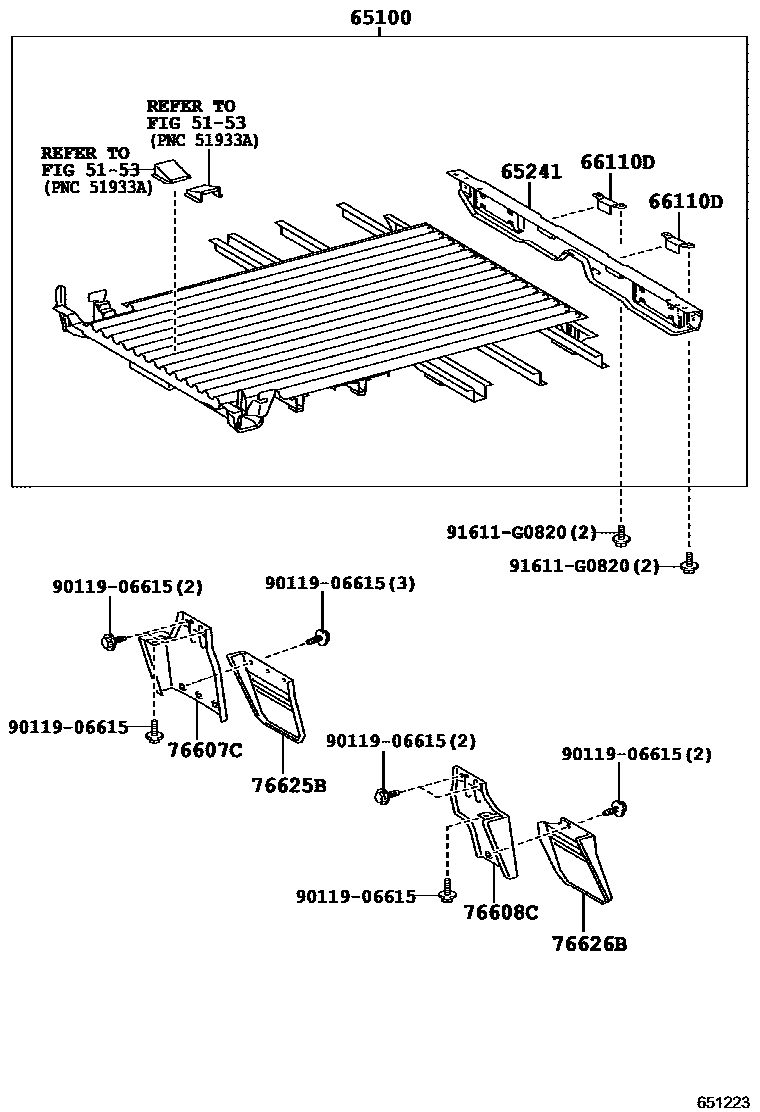

REAR BODY FLOOR & FENDER

5153SPARE WHEEL CARRIER

→ Go to FIG 51-53

65100FLOOR ASSY, REAR BODY

main65100-60430iGRJ79201408-201507

65241SILL, REAR CROSS

main65240-90K02iGRJ79201408-201507

66110DHINGE ASSY, TAIL GATE

main66110-95014×2iGRJ79201408-201507

76607CMUDGUARD SUB-ASSY, REAR BODY, RH

main76607-60300iGRJ79201408-201507

76608CMUDGUARD SUB-ASSY, REAR BODY, LH

main76608-60300iGRJ79201408-201507

76625BMUDGUARD, REAR BODY, RH

main76625-60100iGRJ79201408-201507

76626BMUDGUARD, REAR BODY, LH

main76626-60100iGRJ79201408-201507

9011906615

main90119-06615

91611G0820

main91611-G0820

10 parts on this diagram · 1 diagram in section
