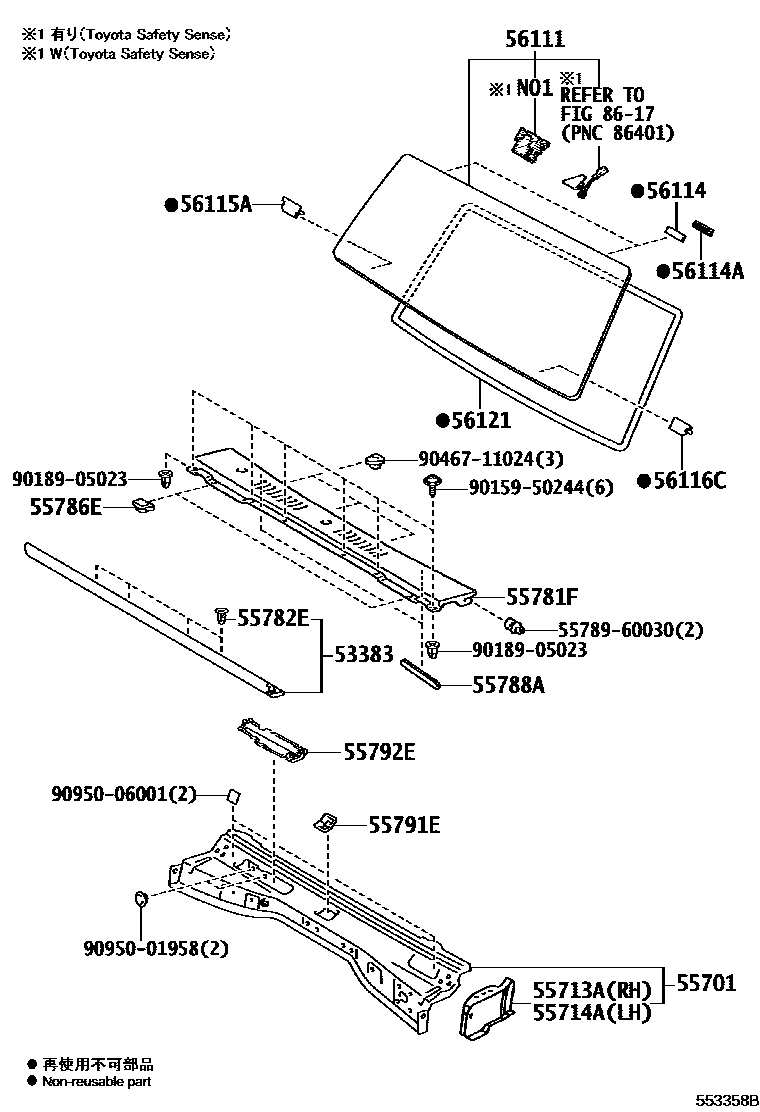

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-60090iGRJ7#201408-201507

55701PANEL SUB-ASSY, COWL

main55700-60D00iGRJ7#201408-201507

55713APANEL, COWL TOP SIDE, RH

main55713-60090iGRJ7#201408-201507

55714APANEL, COWL TOP SIDE, LH

main55714-60090iGRJ7#201408-201507

55781FLOUVER, COWL TOP VENTILATOR

main55781-60041iGRJ7#201408-201507

55782EPROTECTOR, COWL TOP VENTILATOR LOUVER

main55782-60070×4iGRJ7#201408-201507

55786EPLATE, COWL TOP VENTILATOR LOUVER

main55786-60020×2iGRJ7#201408-201507

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55785-60080×2iGDJ76202311

main55788-60050×2iGRJ7#201408-201507

55791ECOVER, HEATER DUCT HOLE

main55791-90K00iGRJ7#201408-201507

55792ECOVER, HEATER AIR DUCT HOLE, NO.2

main55792-60050iGRJ7#201408-201507

56111GLASS, WINDSHIELD

main56101-60K11iGDJ76202311

main56111-60B12iGRJ7#201408-201507

56114RETAINER, WINDSHIELD GLASS

main56114-60020×2iGRJ7#201408-201507

main56114-60021×2iGDJ76202311

56114ARETAINER, BACK WINDOW GLASS

main64819-60060×2iGRJ7#201408-201507

main64819-60061×2iGDJ76202311

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-60030iGRJ7#201408-201507

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-60020iGRJ7#201408-201507

56121WEATHERSTRIP, WINDSHIELD

main56121-60140iGRJ7#201408-201507

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

5578960030SEAL, COWL TOP TO LOUVER

main55789-60030

9015950244

main90159-50244

9018905023

main90189-05023

9046711024

main90467-11024

9095001958

main90950-01958

9095006001

main90950-06001

23 parts on this diagram · 1 diagram in section
