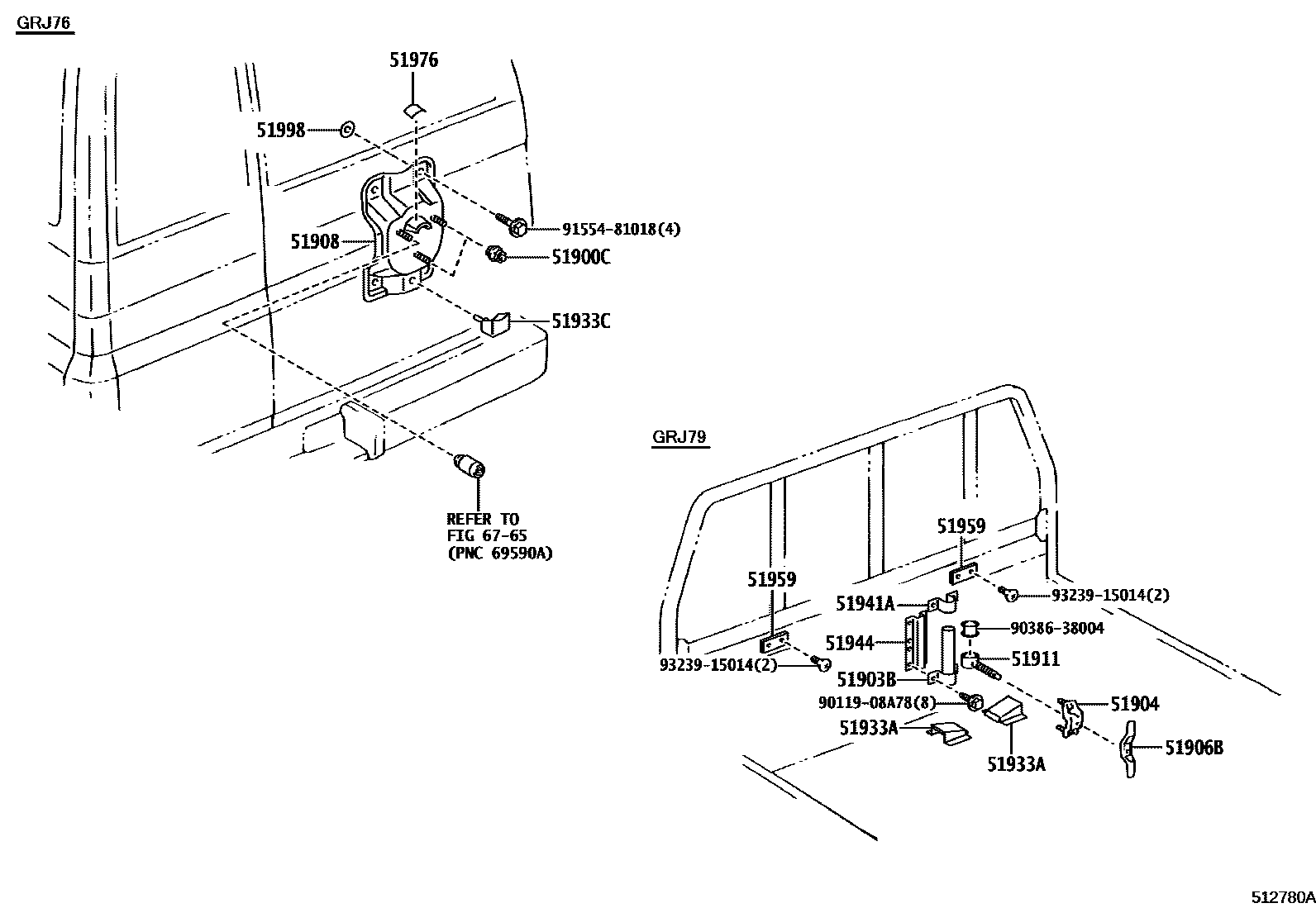

SPARE WHEEL CARRIER

0001 1 0002 1

51900CNUT, SPARE WHEEL, HUB

main90942-01103×2iGRJ76201408-201507

main90942-01127×2iGDJ76202311

51903BCARRIER SUB-ASSY, SPARE WHEEL

main51903-90K00iGRJ79201408-201507

51904BRACKET SUB-ASSY, SPEARE WHEEL CARRIER

main51904-60050iGRJ79201408-201507

51906BHANDLE SUB-ASSY, SPARE WHEEL CARRIER

main51906-90K06iGRJ79201408-201507

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-60160iGRJ76201408-201507

main51908-60240iGDJ76202311

51911BOLT ASSY, SPARE WHEEL MOUNTING

main51901-60020iGRJ79201408-201507

51933ASTOPPER, SPARE WHEEL, NO.1

main51933-90K00×2iGRJ79201408-201507

51933CSTOPPER, SPARE WHEEL

main51933-90K01iGRJ76201408-201507

51941ABRACKET, SPARE WHEEL CARRIER

main51941-90K02iGRJ79201408-201507

51944BRACKET, SPARE WHEEL CARRIER, NO.2

main51944-90K00iGRJ79201408-201507

51959CUSHION, SPARE WHEEL

main66443-90K00×2iGRJ79201408-201507

51976FILM, SPARE WHEEL CARRIER, NO.2

main51976-60020iGRJ76201408-201507

main51976-60050iGDJ76202311

51998PAD, SPARE WHEEL BRACKET

main51998-90K01×4iGRJ76201408-201507

6765LOCK CYLINDER SET

→ Go to FIG 67-65

9011908A78

main90119-08A78

9038638004

main90386-38004

9155481018

main91554-81018

9323915014

main93239-15014

18 parts on this diagram · 2 diagrams in section
