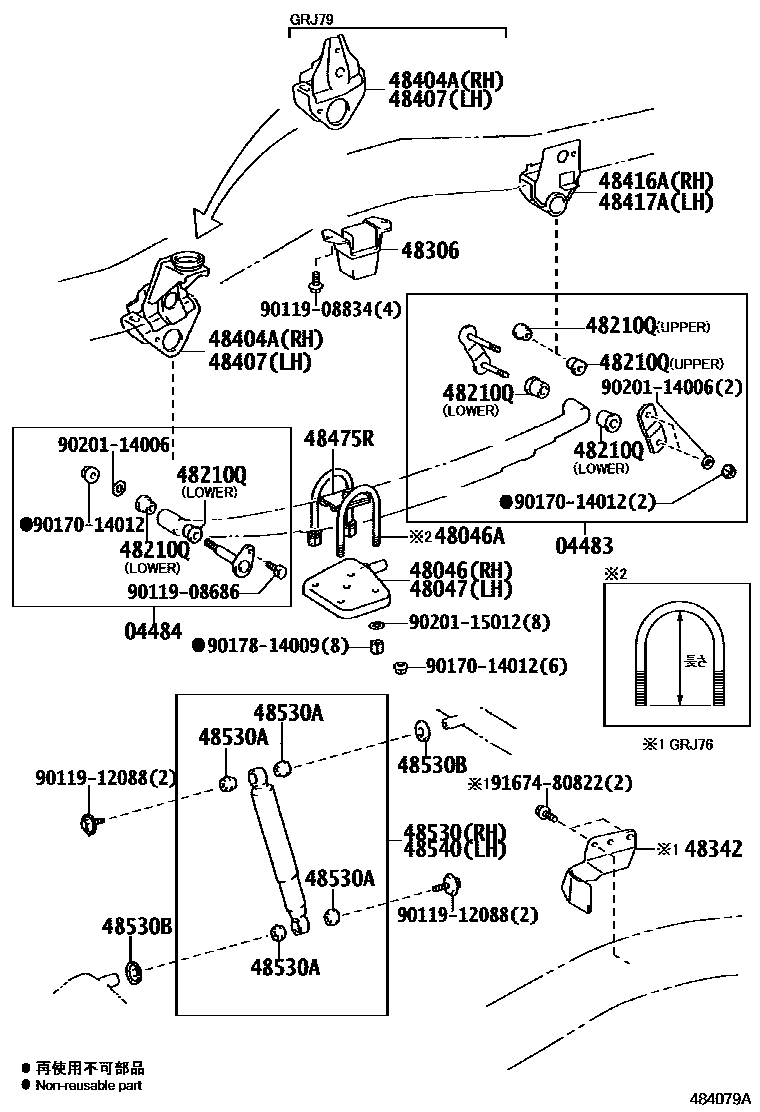

Toyota LAND CRUISER — REAR SPRING & SHOCK ABSORBER
48046ABOLT, U(FOR REAR SPRING)
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210SPRING ASSY, REAR RH
48210QBUSH(FOR REAR SPRING SHACKLE)
48306BUMPER SUB-ASSY, REAR SPRING
48342COVER, BUMPER, REAR
48404ABRACKET SUB-ASSY, SPRING, NO.3 RH
48416ABRACKET, SPRING, NO.4 RH
48417ABRACKET, SPRING, NO.4 LH
48475RPLATE, DISTANCE(FOR REAR)
48530ABSORBER ASSY, SHOCK, REAR RH
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48540ABSORBER ASSY, SHOCK, REAR LH
9011908686
9011908834
9011912088
9017014012
9017814009
9020114006
9020115012
9167480822
26 parts on this diagram · 5 diagrams in section
REAR SPRING & SHOCK ABSORBER for Toyota LAND CRUISER
This section contains 47 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota LAND CRUISER. Key components include: SHACKLE KIT, REAR SPRING, PIN KIT, REAR SPRING, SEAT SUB-ASSY, SPRING U BOLT, RH, BOLT, U(FOR REAR SPRING), SEAT SUB-ASSY, SPRING U BOLT, LH.
