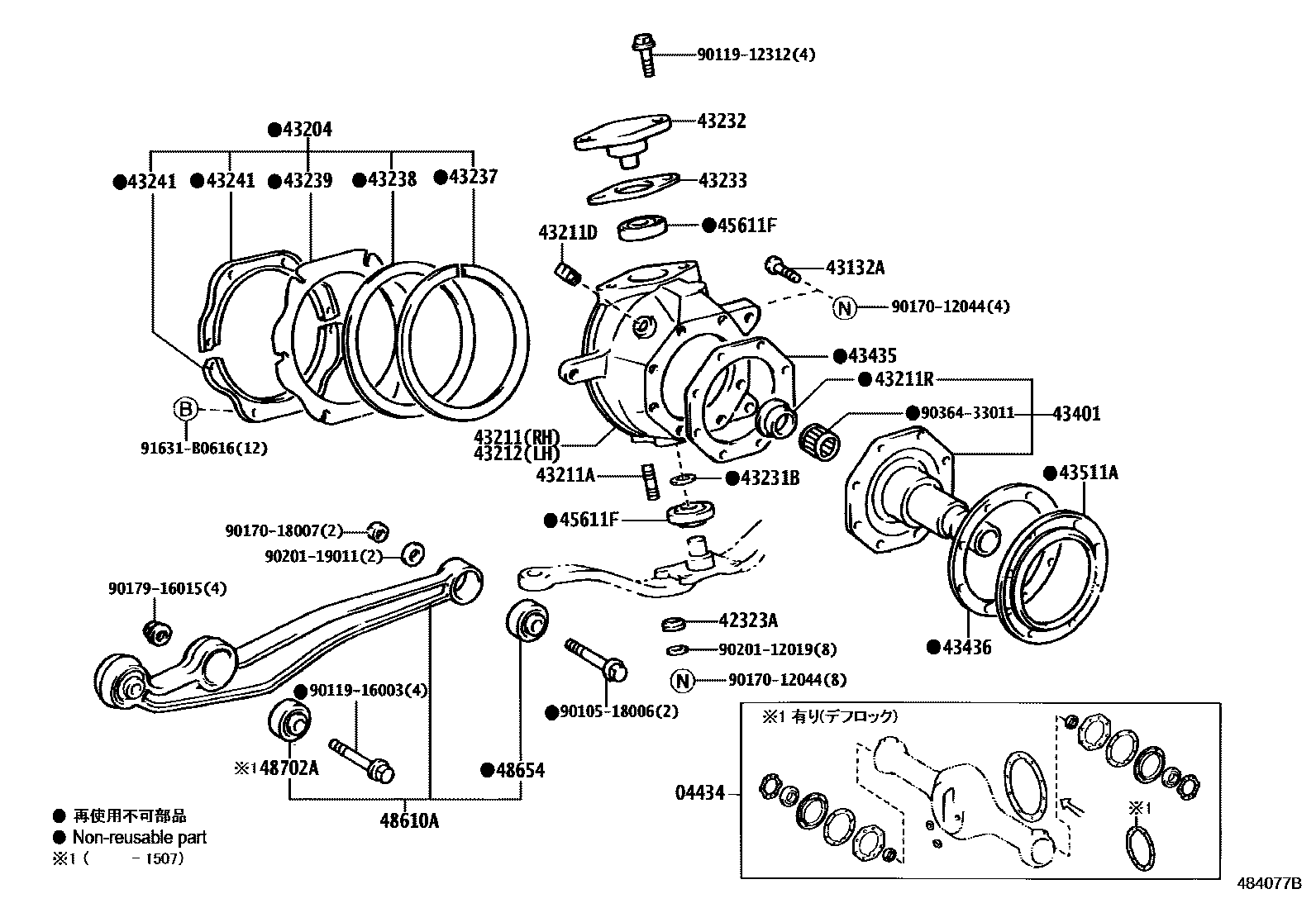

FRONT AXLE ARM & STEERING KNUCKLE
04434GASKET KIT, FRONT AXLE OVERHAUL
42323AWASHER, CONE (FOR STEERING KNUCKLE ARM)
43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
43204SEAL SUB-ASSY, STEERING KNUCKLE OIL
43211ABOLT, STUD (FOR STEERING SET)
43211DPLUG (FOR STEERING KNUCKLE)
43211RBUSH (FOR STEERING KNUCKLE)
43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
43232CAP, STEERING KNUCKLE BEARING
43233SHIM, STEERING KNUCKLE ADJUST, NO.1
43237RING, STEERING KNUCKLE OIL SEAL, INNER
43238SEAL, STEERING KNUCKLE OIL, INNER
43239SEAL, STEERING KNUCKLE OIL, OUTER
43241COVER, STEERING KUNCKLE OIL SEAL
43401SPINDLE SUB-ASSY, STEERING KNUCKLE
43435GASKET, KNUCKLE SPINDLE
43436GASKET, KNUCKLE SPINDLE OIL RETAINER
43511ASEAL, DUST (FOR FRONT AXLE HUB)
45611FBEARING(FOR STEERING KNUCKLE ARM)
48610AARM ASSY, LEADING, FRONT
48654BUSH, LOWER ARM
48702ABUSH SUB-ASSY, LEADING ARM, NO.1
9010518006
main90105-18006
9011912312
main90119-12312
9011916003
main90119-16003
9017012044
main90170-12044
9017018007
main90170-18007
9017916015
main90179-16015
9020112019
main90201-12019
9020119011
main90201-19011
9036433011
main90364-33011
91631B0616
main91631-B0616
34 parts on this diagram · 2 diagrams in section
