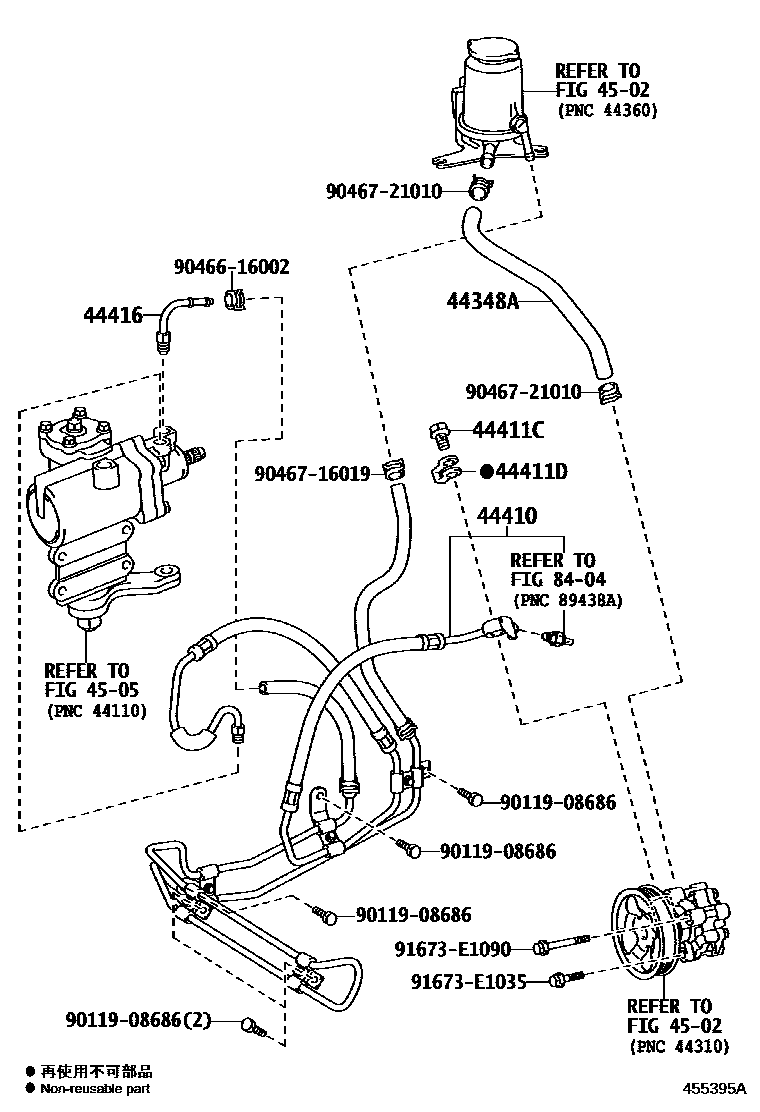

POWER STEERING TUBE

0001 1 0002 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60460iGRJ7#201408-201507

main44348-60530iGDJ76202311

44410TUBE ASSY, PRESSURE FEED

main44410-60830iGRJ7#201408-201507

main44410-60C40iGDJ76202311

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iGRJ7#201408-201507

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iGRJ7#201408-201507

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60410iGRJ7#201408-201507

main44416-60530iGDJ76202311

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011908686

main90119-08686

9046616002

main90466-16002

9046716019

main90467-16019

9046721010

main90467-21010

91673E1035

main91673-E1035

91673E1090

main91673-E1090

14 parts on this diagram · 2 diagrams in section
