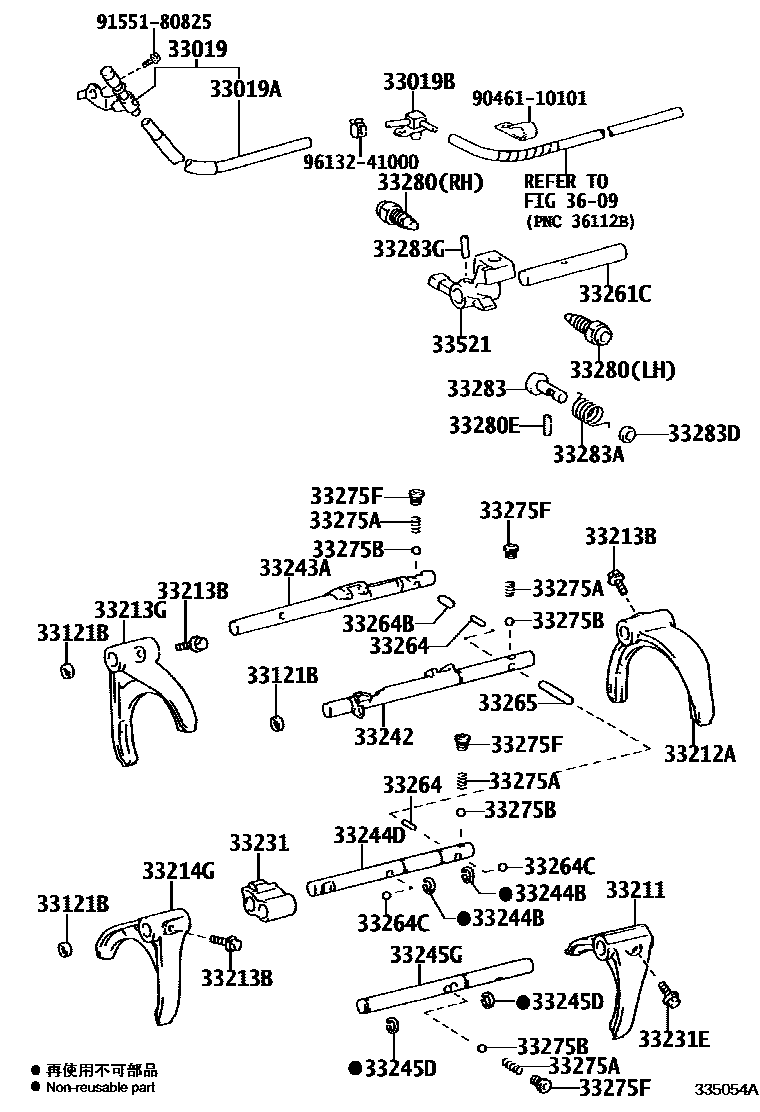

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33019BREATHER SUB-ASSY, TRANSMISSION
33019AHOSE(FOR TRANSMISSION BREATHER)
33019BWAY(FOR TRANSMISSION BREATHER HOSE)
33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)
33211FORK, REVERSE SHIFT
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33231HEAD, REVERSE SHIFT
33231EBOLT(FOR REVERSE SHIFT HEAD)
33242SHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33244DSHAFT, GEAR SHIFT FORK, NO.3
33245DRING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33261CSHAFT, SHIFT & SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
33264CBALL (FOR SHIFT INTERLOCK)
33265PIN, SHIFT INTERLOCK, NO.2
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33275BBALL, SHAFT DETENT
33275FPLUG (FOR SHIFT DETENT BALL)
33280EPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33283PIN, REVERSE RESTRICT, NO.1
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521HOUSING, SHIFT LEVER
3609TRANSFER CASE & EXTENSION HOUSING
9046110101
main90461-10101
9155180825
main91551-80825
9613241000
main96132-41000
36 parts on this diagram · 1 diagram in section
