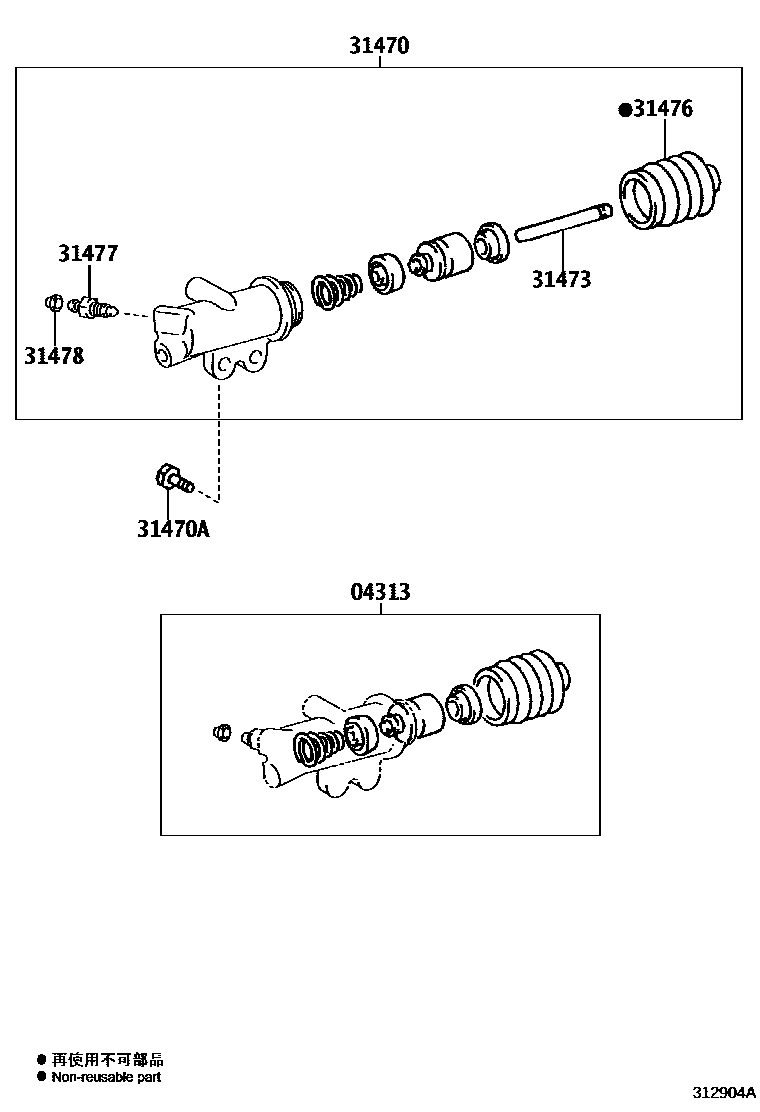

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-34011iGRJ7#201408-201507

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35181iGRJ7#201408-201507

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iGRJ7#201408-201507

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-35060iGRJ7#201408-201507

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-36010iGRJ7#201408-201507

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGRJ7#201408-201507

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGRJ7#201408-201507

7 parts on this diagram · 1 diagram in section
