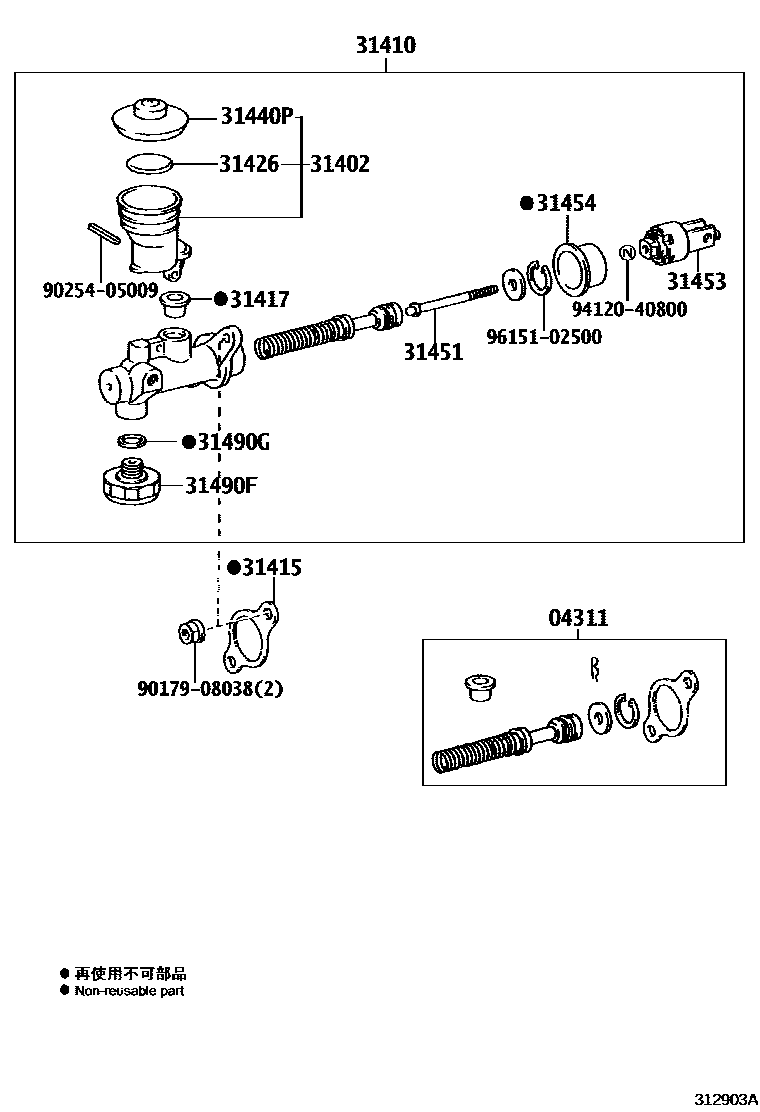

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-60100iGRJ7#201408-201507

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-60070iGRJ7#201408-201507

31410CYLINDER ASSY, CLUTCH MASTER

main31410-60590iGRJ7#201408-201507

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iGRJ7#201408-201507

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iGRJ7#201408-201507

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGRJ7#201408-201507

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iGRJ7#201408-201507

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35070iGRJ7#201408-201507

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iGRJ7#201408-201507

31454BOOT, CLUTCH MASTER CYLINDER

main31454-60020iGRJ7#201408-201507

31490FACCUMULATOR ASSY, MASTER CYLINDER

main31490-12010iGRJ7#201408-201507

31490GGASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)

main90430-16005iGRJ7#201408-201507

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

9615102500

main96151-02500

16 parts on this diagram · 1 diagram in section
