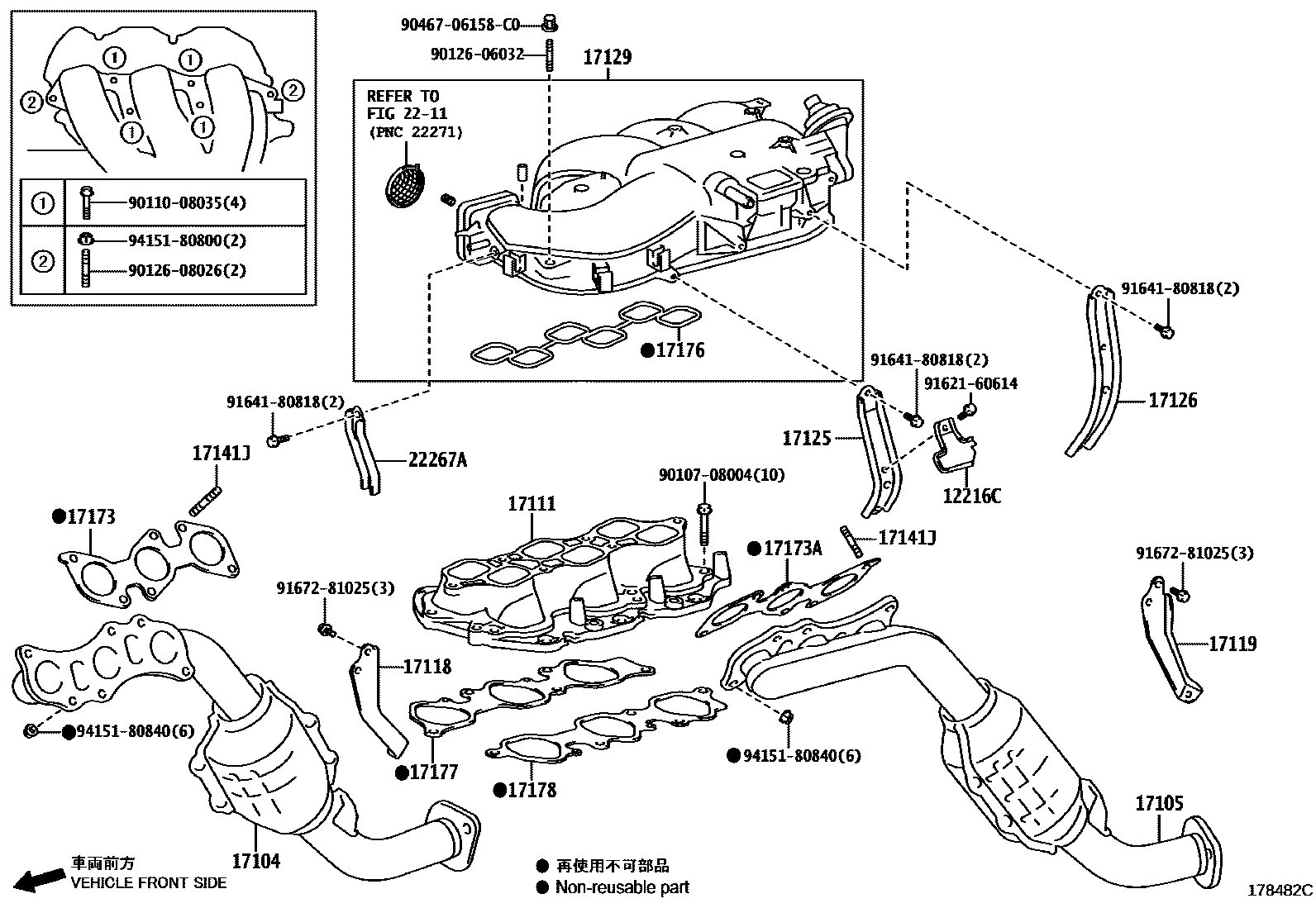

MANIFOLD
12216CPLATE, OIL BAFFLE
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17111MANIFOLD, INTAKE
17119STAY, MANIFOLD, NO.2
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17129TANK, INTAKE AIR SURGE
17141MANIFOLD, EXHAUST
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
2211
22267ABRACKET, THROTTLE BODY
9010708004
main90107-08004
9011008035
main90110-08035
9012606032
main90126-06032
9012608026
main90126-08026
9046706158C0
main90467-06158C0
9162160614
main91621-60614
9164180818
main91641-80818
9167281025
main91672-81025
9415180800
main94151-80800
9415180840
main94151-80840
28 parts on this diagram · 4 diagrams in section
