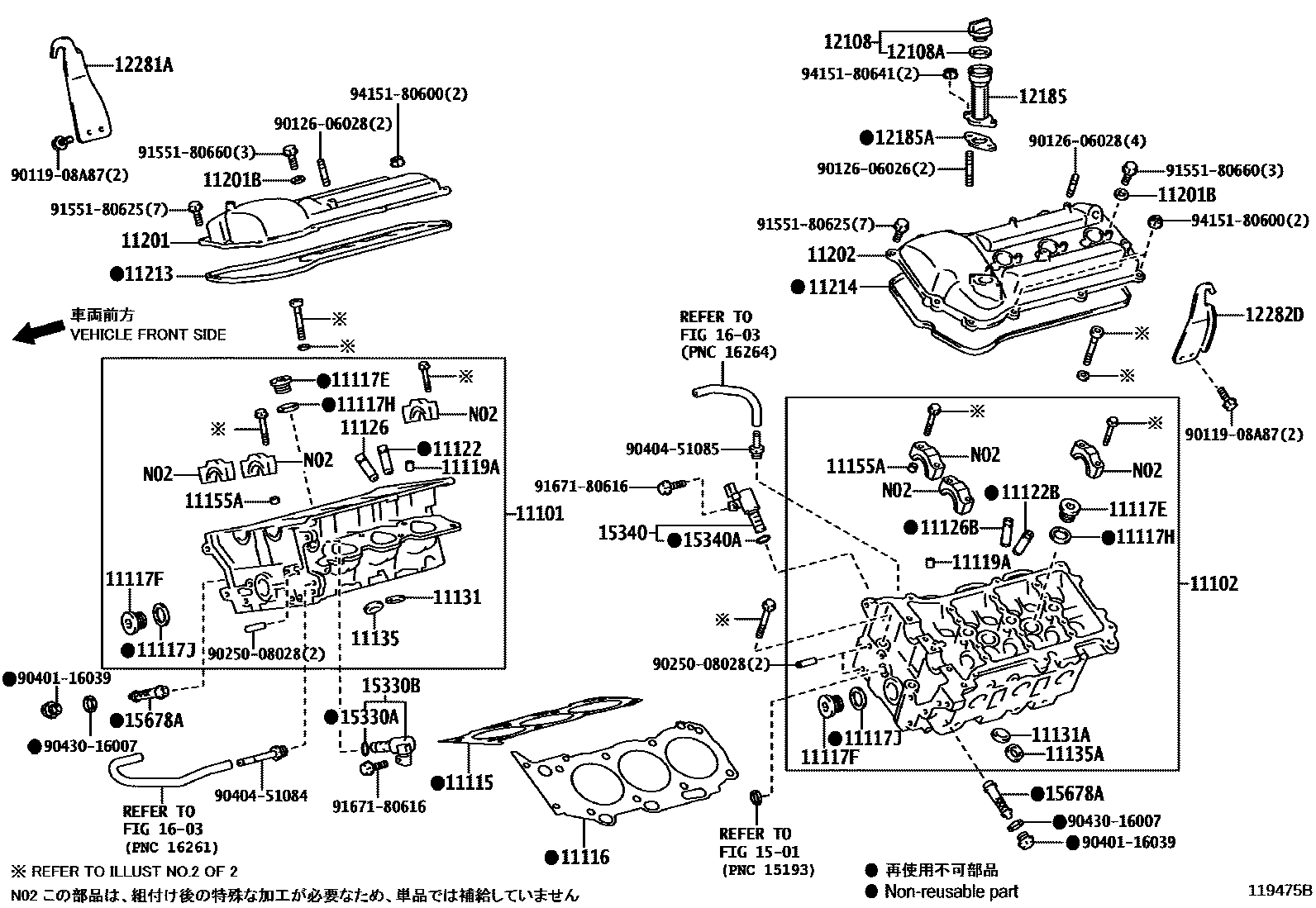

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11102HEAD, CYLINDER, LH
sub11102-39236
11115GASKET, CYLINDER HEAD
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11119APIN, STRAIGHT, NO.1
11126BUSH, EXHAUST VALVE GUIDE
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
11131SEAT, INTAKE VALVE
11131ASEAT, INTAKE VALVE, NO.2
11135SEAT, EXHAUST VALVE
11135ASEAT, EXHAUST VALVE, NO.2
11155APIN, RING W/HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11202COVER SUB-ASSY, CYLINDER HEAD, LH
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12185HOUSING, OIL FILLER CAP
12185AGASKET, OIL FILLER CAP HOUSING
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
1501
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH
15340VALVE ASSY, CAM TIMING OIL CONTROL, LH
15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
1603
9011908A87
main90119-08A87
9012606026
main90126-06026
9012606028
main90126-06028
9025008028
main90250-08028
9040116039
main90401-16039
9040451084
main90404-51084
9040451085
main90404-51085
9043016007
main90430-16007
9155180625
main91551-80625
9155180660
main91551-80660
9167180616
main91671-80616
9415180600
main94151-80600
9415180641
main94151-80641
49 parts on this diagram · 3 diagrams in section
