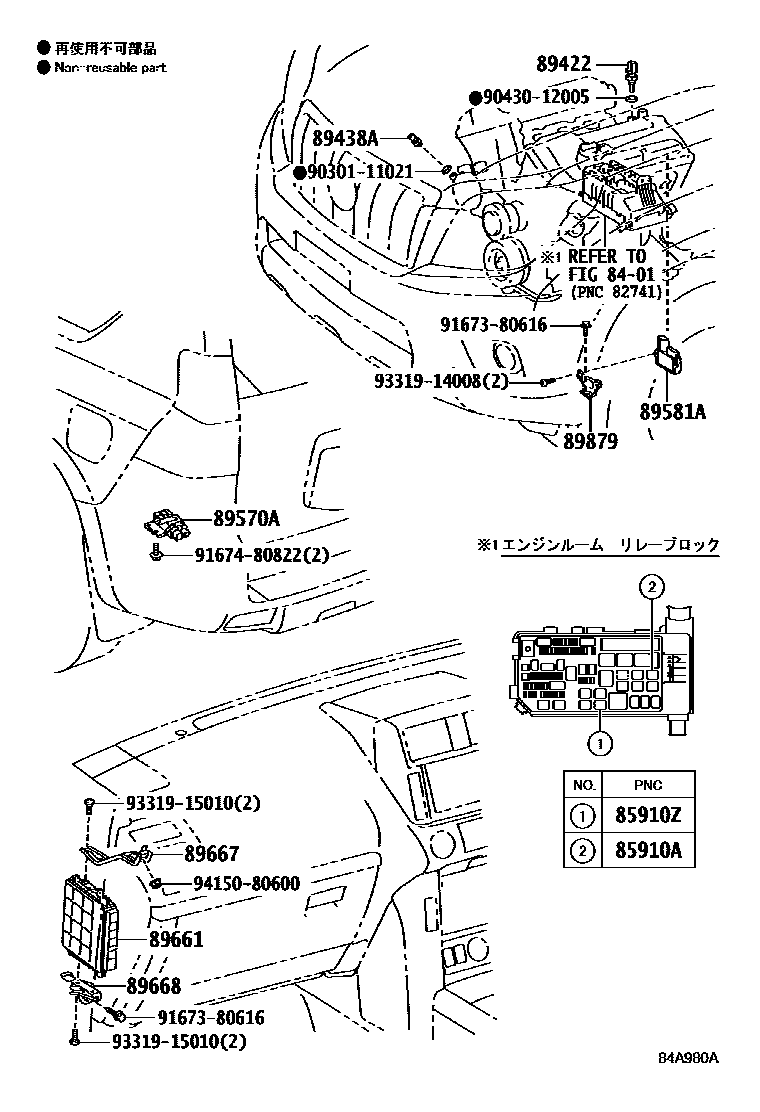

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iGRJ15#,TRJ150200908-201308

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iGRJ15#200908-201308

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iTRJ150201506

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iTRJ150200908-201308

main89438-71010iTRJ150201611-201708

main89448-34020iGRJ15#201308-201506

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60170iGRJ150201308-201506

main89570-60180iGRJ151201308-201506

89581ADRIVER, AIR INJECTION CONTROL

main89581-60010iGRJ15#,TRJ150200908-201308

89661COMPUTER, ENGINE CONTROL

main89661-60M40iTRJ150200908-201308

main89661-60N70iGRJ15#200908-201210

main89661-60U10iGRJ15#201210-201308

main89661-60V90iGRJ15#201308-201506

main89661-60X00iTRJ150201308-201506

main89666-60B40iTRJ150201506

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60280iGRJ15#,TRJ150200908-201308

main89667-60290iTRJ150201506

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60260iGRJ15#,TRJ150200908-201308

main89668-60310iTRJ150201506

89879BRACKET, INJECTOR DRIVER

main89589-60040iGRJ15#,TRJ150200908-201308

9030111021

main90301-11021

9043012005

main90430-12005

9167380616

main91673-80616

9167480822

main91674-80822

9331914008

main93319-14008

9331915010

main93319-15010

9415080600

main94150-80600

18 parts on this diagram · 2 diagrams in section
