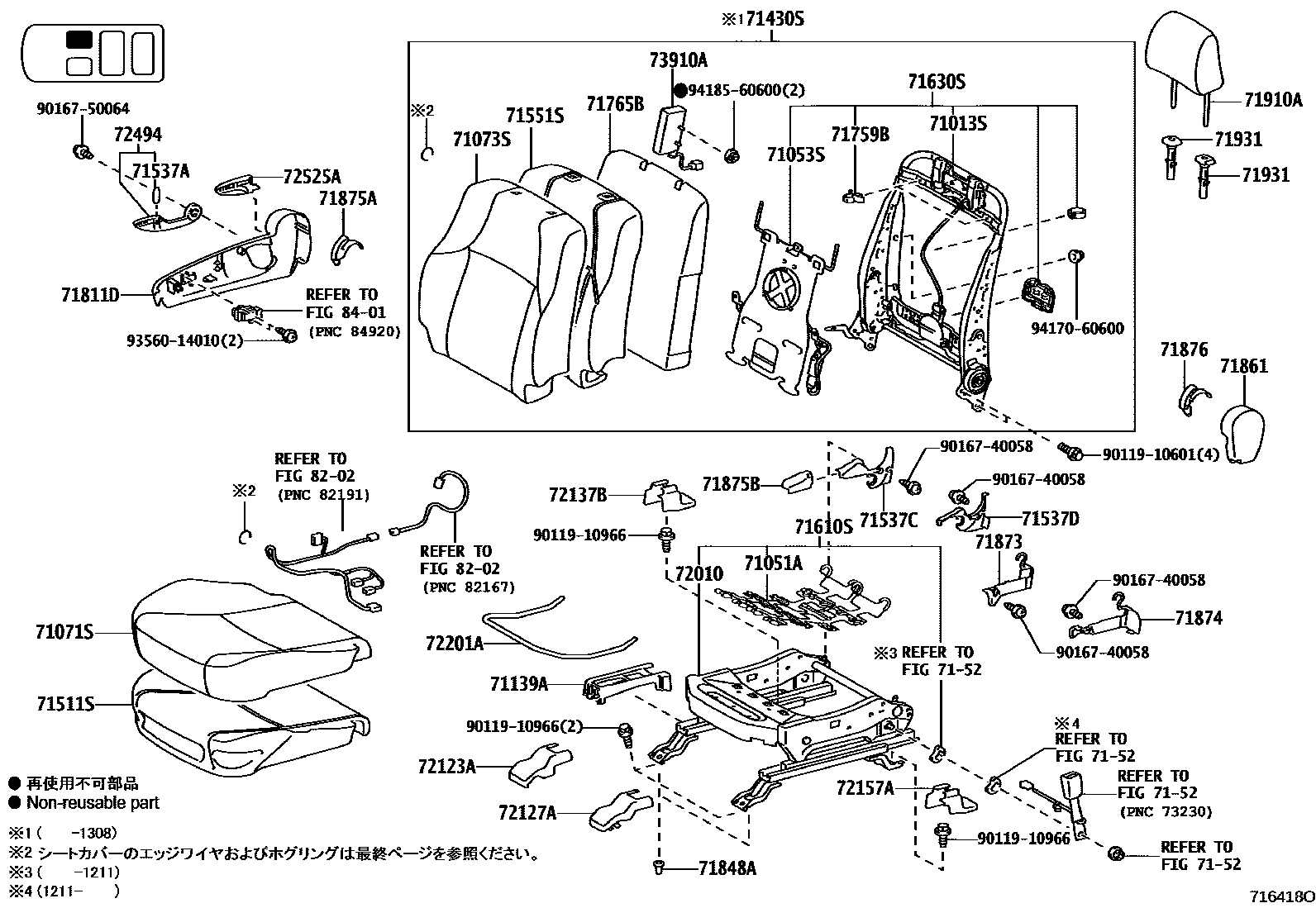

SEAT & SEAT TRACK

0001 1������ 0002 1������,��(�������) 0003 1������� 0004 1�������,��(�������) 0005 1�� ��� RH 0006 1�� ��� LH 0007 1�� NO.1 ��� RH 0008 1�� NO.1 ��� LH 0009 1�� NO.2 ��� RH 0010 1�� NO.2 ��� LH 0011 1�� NO.2 ������ ��� RH 0012 1�� NO.2 ������ ��� LH 0013 1�������������� & �������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-60340iGRJ150,TRJ150200908-201308

main71013-60400iGRJ151201308-201506

main71013-60390iGDJ150,TRJ150..07S201608-201708

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47060iGRJ15#,TRJ150201308-201506

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main72750-47010iGRJ15#,TRJ150200908-201006

main72750-60080iGRJ15#,TRJ150201308-201506

main72750-60110iGRJ15#,TRJ150201007-201012

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-60C90-A1supersedes 71071-60C81-A1iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201201

main71071-60C90-C1supersedes 71071-60C81-B1iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201201

main71071-60C91-A2iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151201202-201302

main71071-60C91-C2iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151201202-201302

main71071-60D00-A3iGRJ150,TRJ150..TX200908-201308

IVORY,TRIM0#

main71071-60D00-B2iGRJ150,TRJ150..TX200908-201308

MD.GRAY,TRIM1#

main71071-60G60-A0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151201302-201308

main71071-60G60-C0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151201302-201308

main71071-60K30-A5iGDJ150,TRJ150201506-201708

FLAXEN,TRIM0#

main71071-60K30-B1iTRJ150201408-201506

SILVER,TRIM23

main71071-60K30-C5iTRJ150201408-201506

BLACK,TRIM22

main71071-60L10-A0supersedes 71071-60K30-A5iGRJ150,TRJ150; GRJ151201308-201402

main71071-60L10-A1iGRJ150,TRJ150; GRJ151201402-201405

main71071-60L10-A2iGRJ150,TRJ150; GRJ151201405-201506

main71071-60L10-C1supersedes 71071-60K30-C4iGRJ150,TRJ150; GRJ151201308-201402

main71071-60L10-C2iGRJ150,TRJ150; GRJ151201402-201405

main71071-60L10-C3iGDJ151; TRJ150;GDJ150..07S201506-201602

main71071-60L11-A2iGDJ151; TRJ150;GDJ150..07S201603-201607

main71071-60L11-C3iGDJ151; TRJ150;GDJ150..07S201603-201607

main71071-60L12-A2iGDJ150,TRJ150..07S; GDJ151; TRJ150;GDJ150..07S201608-201708

main71071-60L12-C3iGDJ150,TRJ150..07S; GDJ151; TRJ150..05S201608-201708

main71071-60C80-A1iGRJ150..TZ; TRJ150..07S200908-201010

main71071-60C80-B1iGRJ150..TZ; TRJ150..07S200908-201010

main71071-60C81-A1iGRJ150..TZ; TRJ150..07S201011-201308

main71071-60C81-B1iGRJ150..TZ; TRJ150..07S201011-201308

main71071-60L12-E0iGDJ150,TRJ150..07S201608-201708

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-60A50-A3supersedes 71073-60A90-A3iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

main71073-60A50-C3supersedes 71073-60A90-B3iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

main71073-60B40-A6iGRJ150,TRJ150..TX200908-201308

IVORY,TRIM0#

main71073-60B40-B1iGRJ150,TRJ150..TX200908-201308

MD.GRAY,TRIM1#

main71073-60G60-A2supersedes 71073-60G70-A5iGRJ150,TRJ150; GRJ151201308-201405

main71073-60G60-A3iGDJ151; TRJ150;GDJ150..07S201506-201607

main71073-60G60-C3iGRJ150,TRJ150; GRJ151201308-201405

main71073-60G60-C4iGRJ150,TRJ150; GRJ151201405-201506

main71073-60G61-A3iGDJ150,TRJ150..07S; GDJ151; TRJ150;GDJ150..07S201608-201708

main71073-60G61-C4iGDJ150,TRJ150..07S; GDJ151; TRJ150..05S201608-201708

main71073-60G70-A5iGDJ150,TRJ150201506-201708

FLAXEN,TRIM0#

main71073-60G70-B0iTRJ150201408-201506

SILVER,TRIM23

main71073-60G70-C6iGDJ150,TRJ150201506-201708

BLACK,TRIM2#

main71073-60A90-A3iGRJ150..TZ; TRJ150..07S200908-201308

main71073-60A90-B3iGRJ150..TZ; TRJ150..07S200908-201308

main71073-60G61-E0iGDJ150,TRJ150..07S201608-201708

71139ACOVER, FRONT SEAT LEG, NO.1

main71139-60030-A0iGRJ15#,TRJ150200908-201308

IVORY,TRIM0#

main71139-60030-A2iGDJ15#,TRJ150201506-201708

FLAXEN,TRIM0#

main71139-60030-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main71139-60030-C0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-60B30-A4iGRJ151200908-201011

IVORY,TRIM0#

main71430-60B30-B3iGRJ151200908-201011

BLACK,TRIM1#

main71430-60B50-A9iGRJ150,TRJ150..TX200908-201012

IVORY,TRIM0#

main71430-60B50-B6iGRJ150,TRJ150..TX200908-201012

BLACK,TRIM1#

main71430-60F60-A0iGRJ150,TRJ150..TX201012-201308

IVORY,TRIM0#

main71430-60F60-B0iGRJ150,TRJ150..TX201012-201308

BLACK,TRIM1#

main71430-60F80-A0iGRJ151201012-201308

IVORY,TRIM0#

main71430-60F80-B0iGRJ151201012-201308

BLACK,TRIM1#

main71430-60D00-A3iGRJ150..TZ; TRJ150..07S200908-201012

main71430-60D00-B3iGRJ150..TZ; TRJ150..07S200908-201012

main71430-60D20-A4iGRJ150..TZ; GRJ150..TZ;TRJ150..07S200908-201012

main71430-60D20-B3iGRJ150..TZ; GRJ150..TZ;TRJ150..07S200908-201012

main71430-60F70-A0iGRJ150..TZ; TRJ150..07S201012-201308

main71430-60F70-B0iGRJ150..TZ; TRJ150..07S201012-201308

main71430-60F90-A0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S201012-201308

main71430-60F90-B0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S201012-201308

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-60450supersedes 71511-60390iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

main71501-60520supersedes 71511-60440iGDJ151; TRJ150;GDJ150..07S201506-201708

main71511-60440iGDJ150,TRJ150201506-201611

main71511-60441iGDJ150,TRJ150201612-201708

main71511-60390iGRJ150..TZ; TRJ150..07S200908-201308

7152SEAT BELT

→ Go to FIG 71-52

71537APROTECTOR, FRONT SEAT CUSHION

main71537-47040iGDJ150,TRJ150201506-201708

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-47010-A0iGRJ15#,TRJ150200908-201308

IVORY,TRIM0#

main71537-47010-A4iGRJ15#,TRJ150201308-201506

FLAXEN,TRIM0#

main71537-47010-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main71537-47010-C0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71538-47010-A0iGRJ15#,TRJ150200908-201308

IVORY,TRIM0#

main71538-47010-A4iGDJ15#,TRJ150201506-201708

FLAXEN,TRIM0#

main71538-47010-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main71538-47010-C0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-60360iGDJ151; TRJ150;GDJ150..07S201606-201708

main71551-60530supersedes 71551-60570iGRJ15#..TZ,TZG; TRJ150..07S200908-201308

main71551-60570iGDJ150,TRJ150201506-201708

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-60390iGRJ151200908-201211

main71610-60391iGRJ151201211-201308

main71610-60392iGDJ151201605-201611

main71610-60393iGDJ151201612-201708

main71610-60410iGRJ150,TRJ150200908-201211

main71610-60411iGDJ150,TRJ150201506-201708

main71610-60350iGRJ150..TZ; GRJ150..TZ;TRJ150..07S200908-201211

main71610-60351iTRJ150;GDJ150..07S201506-201604

main71610-60352iGDJ150,TRJ150..07S201608-201611

main71610-60353iGDJ150,TRJ150..07S; TRJ150;GDJ150..07S201612-201708

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-60350iGRJ150,TRJ150200908-201012

main71630-60380iGRJ151200908-201012

main71630-60440iGRJ150,TRJ150201012-201308

main71630-60460iGRJ151201012-201308

main71630-60370iGRJ150..TZ; GRJ150..TZ;TRJ150..07S200908-201012

main71630-60450iTRJ150;GDJ150..07S201506-201708

71759BHOOK, FRONT SEATBACK

main71759-47010×4iGRJ15#,TRJ150200908-201308

71765BPROTECTOR, FRONT SEATBACK, RH

main71765-60080iGDJ15#,TRJ150201506-201708

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-60320-A0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

main71811-60320-A3supersedes 71811-60330-A3iGRJ150,TRJ150; GRJ151201308-201506

main71811-60320-C0supersedes 71811-60330-C0iGRJ150,TRJ150; GRJ151201308-201506

main71811-60330-A0iGRJ150,TRJ150200908-201308

IVORY,TRIM0#

main71811-60330-A3iGDJ150,TRJ150201506-201708

FLAXEN,TRIM0#

main71811-60330-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main71811-60330-C0iGDJ150,TRJ150201506-201708

BLACK,TRIM2#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-33010×2iGDJ15#,TRJ150201506-201708

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-60140-A0iGRJ15#,TRJ150200908-201308

IVORY,TRIM0#

main71861-60140-A3iGDJ15#,TRJ150201506-201708

FLAXEN,TRIM0#

main71861-60140-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main71861-60140-C0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040iGDJ150,TRJ150201506-201708

main71873-60030supersedes 71873-47040iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-60030iGDJ15#,TRJ150201506-201708

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-47030-A0iGRJ150,TRJ150200908-201308

IVORY,TRIM0#

main71875-47030-A3iGDJ150,TRJ150201506-201708

FLAXEN,TRIM0#

main71875-47030-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main71875-47030-C0iGDJ150,TRJ150201506-201708

BLACK,TRIM2#

main71875-60210-A0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

main71875-60210-A3supersedes 71875-47030-A3iGDJ151; TRJ150;GDJ150..07S201506-201708

main71875-60210-C0supersedes 71875-47030-C0iGRJ150,TRJ150; GRJ151201308-201506

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60200supersedes 71875-60220iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151201002-201308

main71875-60200-A0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201002

main71875-60200-C0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201002

main71875-60220iGRJ150,TRJ150201002-201308

main71875-60220-A0iGRJ150,TRJ150200908-201002

IVORY,TRIM0#

main71875-60220-B0iGRJ150,TRJ150200908-201002

MD.GRAY,TRIM1#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-47030-A0iGRJ150,TRJ150200908-201308

IVORY,TRIM0#

main71876-47030-A3iGDJ150,TRJ150201506-201708

FLAXEN,TRIM0#

main71876-47030-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main71876-47030-C0iGDJ150,TRJ150201506-201708

BLACK,TRIM2#

main71876-60210-A0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

main71876-60210-A3supersedes 71876-47030-A3iGDJ151; TRJ150;GDJ150..07S201506-201708

main71876-60210-C0supersedes 71876-47030-C0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

71910AHEADREST ASSY, FRONT SEAT

main71910-60740-A2×2supersedes 71910-60730-A1iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201012

main71910-60740-C3×2supersedes 71910-60730-B1iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201012

main71910-60750-A5×2iGRJ150,TRJ150..TX200908-201012

IVORY,TRIM0#

main71910-60750-B3×2iGRJ150,TRJ150..TX200908-201012

MD.GRAY,TRIM1#

main71910-60870-A0×2iGRJ150,TRJ150..TX201012-201308

IVORY,TRIM0#

main71910-60870-B0×2iGRJ150,TRJ150..TX201012-201308

MD.GRAY,TRIM1#

main71910-60890-A0×2supersedes 71910-60880-A0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151201012-201308

main71910-60890-C0×2supersedes 71910-60880-B0iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151201012-201308

main71910-60B60-A2×2iGDJ150,TRJ150201506-201708

FLAXEN,TRIM0#

main71910-60B60-C2×2iGDJ150,TRJ150201506-201708

BLACK,TRIM2#

main71910-60B80-A2×2supersedes 71910-60B60-A2iGRJ150,TRJ150; GRJ151201308-201506

main71910-60B80-C2×2supersedes 71910-60B60-C2iGRJ150,TRJ150; GRJ151201308-201506

main71910-60730-A1×2iGRJ150..TZ; TRJ150..07S200908-201012

main71910-60730-B1×2iGRJ150..TZ; TRJ150..07S200908-201012

main71910-60880-A0×2iGRJ150..TZ; TRJ150..07S201012-201308

main71910-60880-B0×2iGRJ150..TZ; TRJ150..07S201012-201308

main71910-60B80-E0×2iGDJ150,TRJ150..07S201608-201708

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A1×2iGRJ15#,TRJ150200908-201308

main71930-47020-A7×2iGRJ15#,TRJ150201308-201506

main71930-47020-B0×2iGRJ150,TRJ150200908-201308

main71930-47020-C0×2iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

main71931-47020-A1×2iGRJ15#,TRJ150200908-201308

main71931-47020-A7×2iGRJ15#,TRJ150201308-201506

main71931-47020-B0×2iGRJ150,TRJ150200908-201308

main71931-47020-C0×2iGRJ150..TZ; GRJ150..TZ;TRJ150..07S; GRJ151200908-201308

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-60350iGRJ150,TRJ150200908-201211

main72010-60352iGRJ150,TRJ150201211-201308

main72010-60360iGRJ151200908-201211

main72010-60363iGRJ151201308-201506

main72010-60330iGRJ150..TZ; GRJ150..TZ;TRJ150..07S200908-201211

main72010-60333iGRJ150..TZ; GRJ150..TZ;TRJ150..07S201211-201308

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-60120-A0iGRJ15#,TRJ150200908-201308

IVORY,TRIM0#

main72123-60120-A2iGDJ15#,TRJ150201506-201708

FLAXEN,TRIM0#

main72123-60120-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main72123-60120-C0iGRJ150..TZ; GRJ151200908-201308

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-60100-A0iGRJ15#,TRJ150200908-201308

IVORY,TRIM0#

main72127-60100-A2iGRJ15#,TRJ150201308-201506

FLAXEN,TRIM0#

main72127-60100-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main72127-60100-C0iGDJ15#,TRJ150201506-201708

BLACK,TRIM2#

72137BCOVER, SEAT TRACK, RH

main72137-60140-A0iGRJ15#,TRJ150200908-201308

IVORY,TRIM0#

main72137-60140-A2iGRJ15#,TRJ150201308-201506

FLAXEN,TRIM0#

main72137-60140-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main72137-60140-C0iGRJ150..TZ; GRJ151200908-201308

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-60150-A0iGRJ15#,TRJ150200908-201308

IVORY,TRIM0#

main72157-60150-A2iGDJ15#,TRJ150201506-201708

FLAXEN,TRIM0#

main72157-60150-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main72157-60150-C0iGRJ150..TZ; GRJ151200908-201308

72201AHANDLE SUB-ASSY, SEAT TRACK RH

main72211-60210iGDJ150,TRJ150201506-201708

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-47010-A0iGRJ150,TRJ150200908-201308

IVORY,TRIM0#

main72494-47010-A3iGDJ150,TRJ150201506-201708

FLAXEN,TRIM0#

main72494-47010-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main72494-47010-C0iGRJ150,TRJ150201308-201506

BLACK,TRIM2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-A0iGRJ150,TRJ150200908-201308

IVORY,TRIM0#

main72525-47010-A3iGRJ150,TRJ150201308-201506

FLAXEN,TRIM0#

main72525-47010-B0iGRJ150,TRJ150200908-201308

MD.GRAY,TRIM1#

main72525-47010-C0iGDJ150,TRJ150201506-201708

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-60030iGRJ15#,TRJ150200908-201308

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011910601

main90119-10601

9011910966

main90119-10966

9016740058

main90167-40058

9016750064

main90167-50064

9356014010

main93560-14010

9417060600

main94170-60600

9418560600

main94185-60600

45 parts on this diagram · 13 diagrams in section
