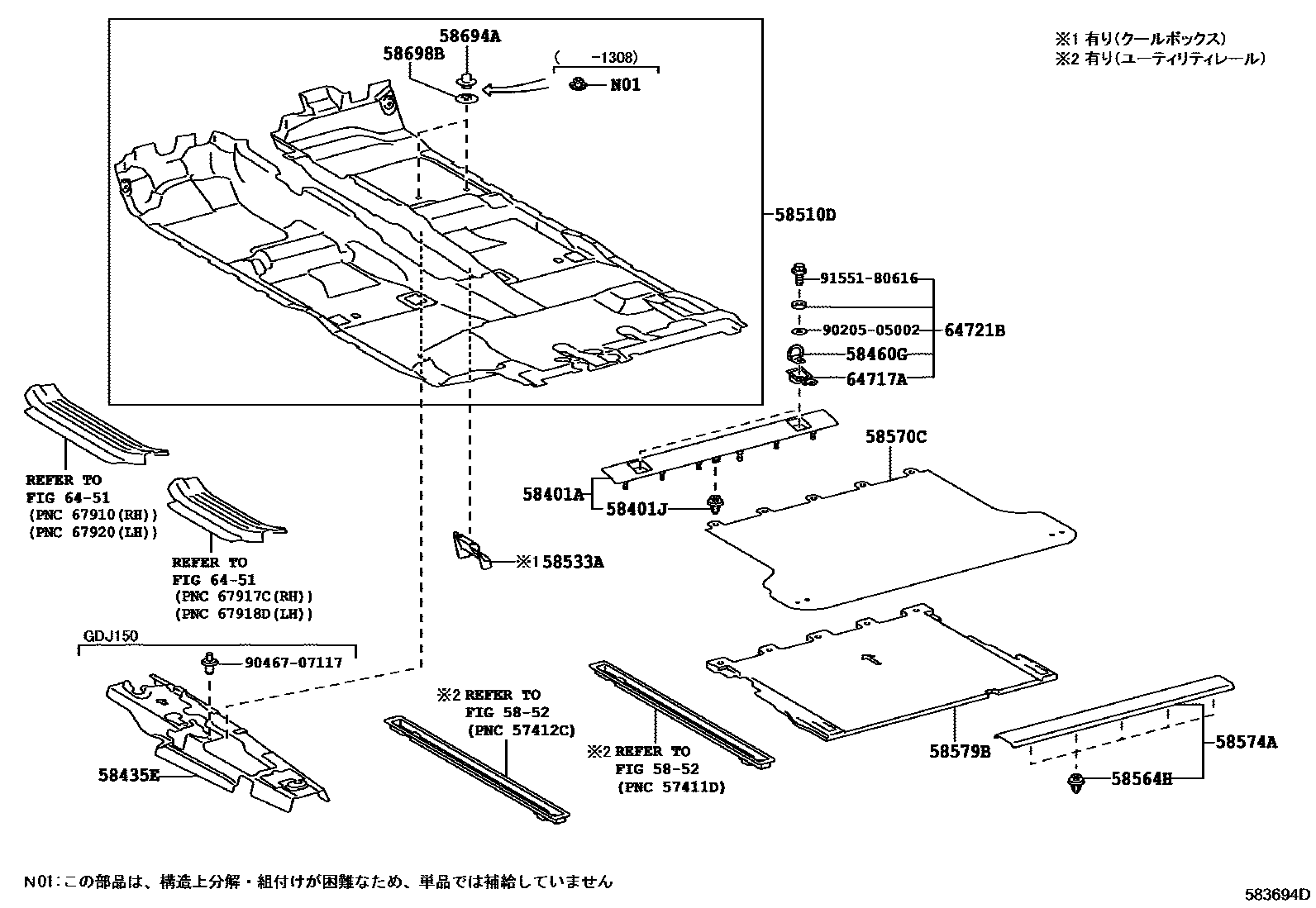

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58401ABOARD SUB-ASSY, DECK, NO.1

main58401-60010-A1iTRJ150..05S200908-201308

IVORY,TRIM0#

main58401-60010-A3iTRJ150..05S201308-201406

FLAXEN,TRIM0#

main58401-60010-B0iTRJ150..05S200908-201308

MD GRAY,TRIM1#

main58401-60010-C2iTRJ150..05S201406-201506

main58401-60030-A0iGDJ150,TRJ150..05S201506-201708

main58401-60030-C0iTRJ150..05S201406-201506

58401JCLIP(FOR DECK BOAD)

main90467-07210-C0iTRJ150..05S200908-201308

BLACK

58435ESILENCER, FRONT FLOOR, CENTER

main58435-60040iGDJ15#201506

58460GSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33010×2iTRJ150..05S200908-201308

58510DCARPET ASSY, FLOOR, FRONT

main58510-60J30-A1iTRJ150..05S200908-201308

IVORY,TRIM0#

main58510-60J30-B0iTRJ150..05S200908-201308

MD GRAY,TRIM1#

main58510-60J50-A1iGRJ15#,TRJ150..07S200908-201308

IVORY,TRIM0#

main58510-60J50-B0iGRJ15#,TRJ150..07S200908-201308

MD GRAY,TRIM1#

main58510-60W70-A1iGDJ150,TRJ150..05S201506-201708

FLAXEN,TRIM0#

main58510-60W70-C1iTRJ150..05S201308-201506

BLACK,TRIM2#

main58510-60W90-A1iGRJ15#,TRJ150..07S201308-201506

FLAXEN,TRIM0#

main58510-60W90-C1iGRJ15#,TRJ150..07S201308-201506

BLACK,TRIM2#

main58510-60J60-A1iGRJ15#..TZ,TZG200908-201308

main58510-60J60-B0iGRJ15#..TZ,TZG200908-201308

main58510-60X00-A1iGDJ151201506-201708

main58510-60X00-C1iGRJ15#201308-201506

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-60041-A1iGRJ15#..TZ,TZG200908-201205

main58533-60041-B1iGRJ15#..TZ,TZG200908-201205

main58533-60042-A1iGRJ15#..TZ,TZG201206-201305

main58533-60042-B1iGRJ15#..TZ,TZG201206-201305

main58533-60043-A1iGRJ15#..TZ,TZG201306-201308

main58533-60043-A3iGRJ15#201308-201506

main58533-60043-B1iGRJ15#..TZ,TZG201306-201308

main58533-60043-C1iGRJ15#201308-201506

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-09206×5iGRJ15#,TRJ150201308-201506

58570CCARPET ASSY, REAR FLOOR

main58570-60B90-A1supersedes 58570-60D00-A0iTRJ150..05S200908-201308

main58570-60B90-A3supersedes 58570-60D00-A0iTRJ150..05S201308-201506

main58570-60B90-B0supersedes 58570-60B80-B0iTRJ150..05S200908-201308

main58570-60B90-C1supersedes 58570-60D00-C0iTRJ150..05S201308-201506

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-60120-A0iTRJ150..05S200908-201308

IVORY,TRIM0#

main58574-60120-A1iTRJ150..05S201308-201506

FLAXEN,TRIM0#

main58574-60120-B0iTRJ150..05S200908-201308

MD.GRAY,TRIM1#

main58574-60120-C0iGDJ150,TRJ150..05S201506-201708

BLACK,TRIM2#

main58574-60130-A0iGRJ15#,TRJ150..07S200908-201308

IVORY,TRIM0#

main58574-60130-A1iGRJ15#,TRJ150..07S201308-201506

FLAXEN,TRIM0#

main58574-60130-B0iGRJ15#,TRJ150..07S200908-201308

MD.GRAY,TRIM1#

main58574-60130-C0iGRJ15#,TRJ150..07S201308-201506

BLACK,TRIM2#

58579BPAD, REAR FLOOR

main58579-60010iTRJ150..05S200908-201308

main58579-60020iGDJ150,TRJ150..05S201707-201708

58694APLATE, MAT SET, UPPER

main58694-76010×2iGDJ15#,TRJ150201506

58698BPLATE, MAT SET, LOWER

main58698-76010×2iGRJ15#,TRJ150201308-201506

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-60030-A0×2iTRJ150..05S200908-201308

IVORY,TRIM0#

main64717-60030-A1×2iTRJ150..05S201308-201506

FLAXEN,TRIM0#

main64717-60030-B0×2iTRJ150..05S200908-201308

MD.GRAY,TRIM1#

main64717-60030-C0×2iGDJ150,TRJ150..05S201506-201708

BLACK,TRIM2#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-60010-A0×2iTRJ150..05S200908-201308

IVORY,TRIM0#

main64721-60010-A1×2iGDJ150,TRJ150..05S201506-201708

FLAXEN,TRIM0#

main64721-60010-B0×2iTRJ150..05S200908-201308

MD.GRAY,TRIM1#

main64721-60010-C0×2iTRJ150..05S201308-201506

BLACK,TRIM2#

9020505002

main90205-05002

9046707117

main90467-07117

9155180616

main91551-80616

19 parts on this diagram · 2 diagrams in section
