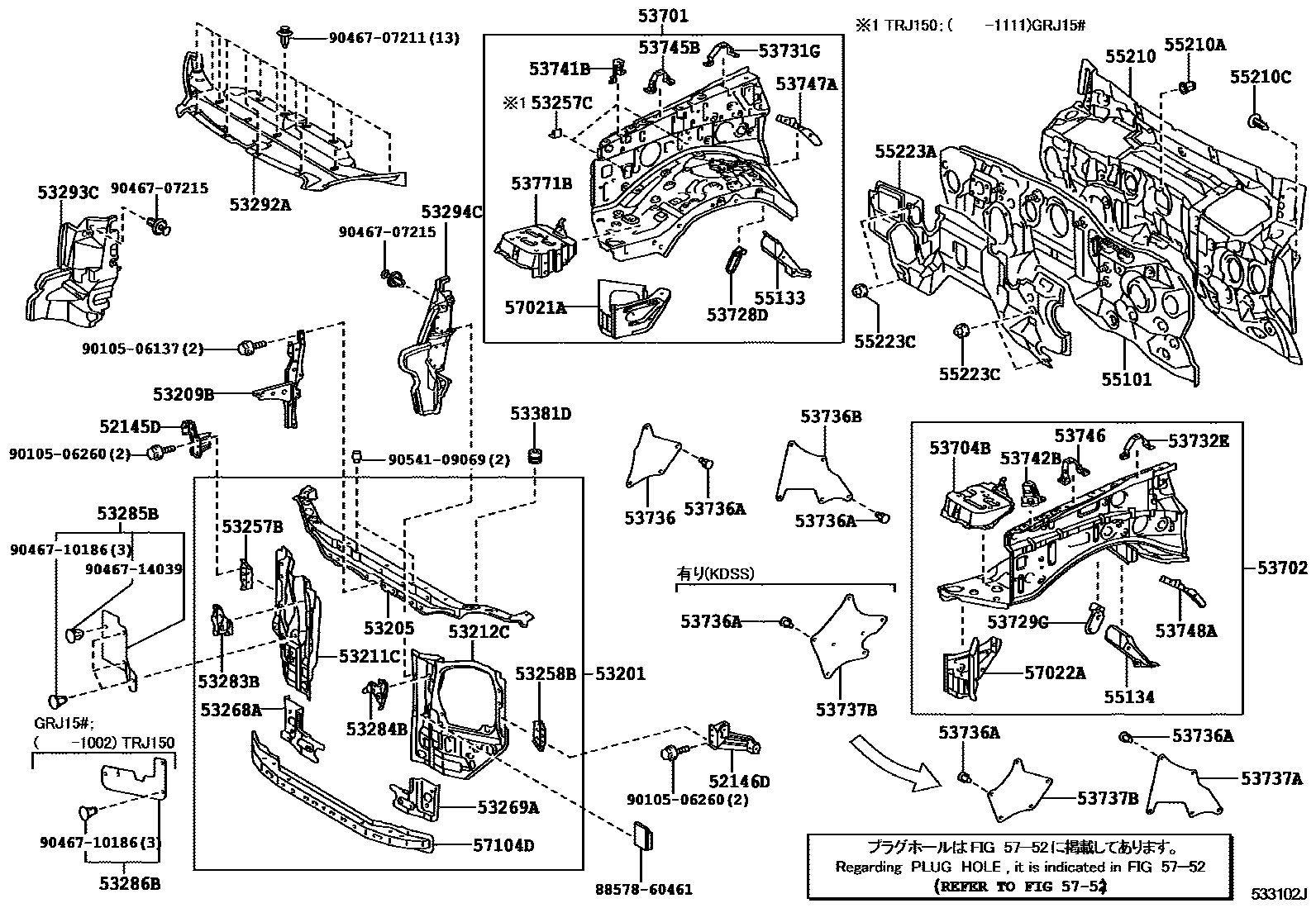

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main53803-60080iGRJ15#,TRJ150200908-201308

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main53804-60060iGRJ15#,TRJ150200908-201308

53201SUPPORT SUB-ASSY, RADIATOR

main53201-60170iGRJ15#,TRJ150200908-201308

main53201-60171iGRJ15#,TRJ150201409-201506

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-60070iGRJ15#,TRJ150200908-201308

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-60140iGRJ15#,TRJ150200908-201211

main53209-60141iGRJ15#,TRJ150201212-201308

main53209-60150iGRJ15#,TRJ150201308-201506

53211CSUPPORT, RADIATOR, RH

main53211-60240iGRJ15#,TRJ150200908-201305

main53211-60241iGRJ15#,TRJ150201306-201308

main53211-60242iGRJ15#,TRJ150201409-201506

53212CSUPPORT, RADIATOR, LH

main53212-60200iGRJ15#,TRJ150200908-201305

main53212-60201iGRJ15#,TRJ150201306-201308

main53212-60202iGRJ15#,TRJ150201409-201506

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-60070iGRJ15#,TRJ150200908-201308

53257CBRACKET, RADIATOR SUPPORT TO FRONT FENDER, NO.2

main53257-35030×2iGRJ15#200908-201111

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53257-60070iGRJ15#,TRJ150200908-201308

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-35040iGRJ15#,TRJ150200908-201308

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-35040iGRJ15#,TRJ150200908-201308

53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH

main53283-60050iGRJ15#,TRJ150200908-201308

53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH

main53284-60010iGRJ15#,TRJ150200908-201308

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-60140iGRJ15#,TRJ150200908-201308

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-60110iGRJ15#200908-201308

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-60080iGRJ15#,TRJ150200908-201308

main53292-60110iGRJ15#,TRJ150201308-201506

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-60090iGRJ15#,TRJ150200908-201003

main53293-60091iGRJ15#,TRJ150201004-201308

main53293-60160iGRJ15#,TRJ150201308-201506

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-60100iGRJ15#,TRJ150200908-201003

main53294-60101iGRJ15#,TRJ150201004-201308

main53294-60160iGRJ15#,TRJ150201308-201506

53381DBUMPER, HOOD TO FRONT SHROUD

main90541-15004×2iGRJ15#,TRJ150200908-201308

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-60720iTRJ150201308-201309

main53701-60C70iGRJ15#201308-201309

main53701-60E30iTRJ150201310-201501

main53701-60E50iGRJ15#201310-201501

main53701-60F00iGDJ15#201506-201610

main53701-60F01iGDJ15#201611

main53701-60F21iTRJ150201501-201506

main53701-60F41iGRJ15#201501-201506

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-60A50iGRJ15#,TRJ150201308-201309

main53702-60B20iGRJ15#,TRJ150201310-201501

main53702-60B50iTRJ150201506

main53702-60B60iGDJ15#201506

main53702-6A300iGRJ15#,TRJ150200908-201010

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-35082iGRJ15#,TRJ150200908-201010

main53704-60050iGDJ15#,TRJ150201506-201705

main53704-60060iGDJ15#,TRJ150201706

53728DBRACKET, FENDER APRON, RH

main53728-35060iGRJ15#,TRJ150200908-201308

53729GBRACKET, FENDER APRON, LH

main53728-35060iGRJ15#,TRJ150200908-201010

53731GREINFORCEMENT, FRONT FENDER APRON, RH

main53731-60080iGRJ15#,TRJ150200908-201308

53732EREINFORCEMENT, FRONT FENDER APRON, LH

main53732-60070iGRJ15#,TRJ150201011-201308

53736SEAL, FRONT FENDER APRON, RH

main53735-35150iGRJ15#,TRJ150200908-201308

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10186×19iGRJ15#..TZ,TZG; GRJ150,TRJ150..TX; GRJ150..TX200908-201308

53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH

main53885-60030iGRJ15#,TRJ150200908-201308

main53886-60030iGDJ15#201506

53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH

main53885-60030iGRJ15#201308-201506

main53886-60030iTRJ150200908-201308

53737BSEAL, FRONT FENDER APRON, LH

main53736-35150iGRJ150,TRJ150..TX200908-201308

main53736-60130iGDJ151201506

53741BPLATE, FENDER APRON REINFORCE, RH

main53741-60010iGRJ15#,TRJ150201308-201506

53742BPLATE, FENDER APRON REINFORCE, LH

main53742-60010iGRJ15#,TRJ150200908-201010

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-60050iGRJ15#,TRJ150200908-201308

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-60060iGRJ15#,TRJ150200908-201010

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-60020iGRJ15#,TRJ150201308-201506

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-60010iGRJ15#,TRJ150201011-201308

53771BSUPPORT, BATTERY CARRIER, RH

main53703-35042iGRJ15#,TRJ150200908-201308

main53703-60050iGDJ15#201506-201610

main53703-60051iGDJ15#201611-201708

main53703-60061iGRJ15#,TRJ150201501-201506

main53703-60080iTRJ150201706-201708

55101PANEL SUB-ASSY, DASH

main55101-60D50iGRJ15#,TRJ150200908-201308

main55101-60J20iGDJ15#,TRJ150201506

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-60060iGRJ15#,TRJ150200908-201308

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-60070iGRJ15#,TRJ150200908-201010

55210INSULATOR ASSY, DASH PANEL

main55210-60250iGRJ15#,TRJ150200908-201304

main55210-60251iGRJ15#,TRJ150201305-201308

main55210-60320iTRJ150201506

main55210-60330iGDJ15#201506

55210ACLIP

main90467-06155iGRJ15#,TRJ150200908-201308

55210CCLIP

main90467-08186-C0×2iGRJ15#,TRJ150200908-201308

BLACK

main90467-08186-C3×2iGDJ15#,TRJ150201610-201708

BLACK

55223AINSULATOR, DASH PANEL, OUTER

main55223-35083iGRJ15#,TRJ150200908-201011

main55223-35084iGRJ15#,TRJ150201012-201308

main55223-60460iTRJ150201506

main55223-60470iGDJ15#201506

55223CCLIP

main90467-06169×4iGRJ15#,TRJ150200908-201012

main90467-06206-C0×4iGRJ15#,TRJ150201101-201308

BLACK

57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-35060iGRJ15#,TRJ150200908-201308

57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-35050iGRJ15#,TRJ150200908-201010

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-35061iGRJ15#,TRJ150200908-201308

5752HOLE PLUG

→ Go to FIG 57-52

8857860461PAKING, COOLER AIR DUCT

main88578-60461

9010506137

main90105-06137

9010506260

main90105-06260

9046707211

main90467-07211

9046707215

main90467-07215

9046710186

main90467-10186

9046714039

main90467-14039

9054109069

main90541-09069

59 parts on this diagram · 2 diagrams in section
