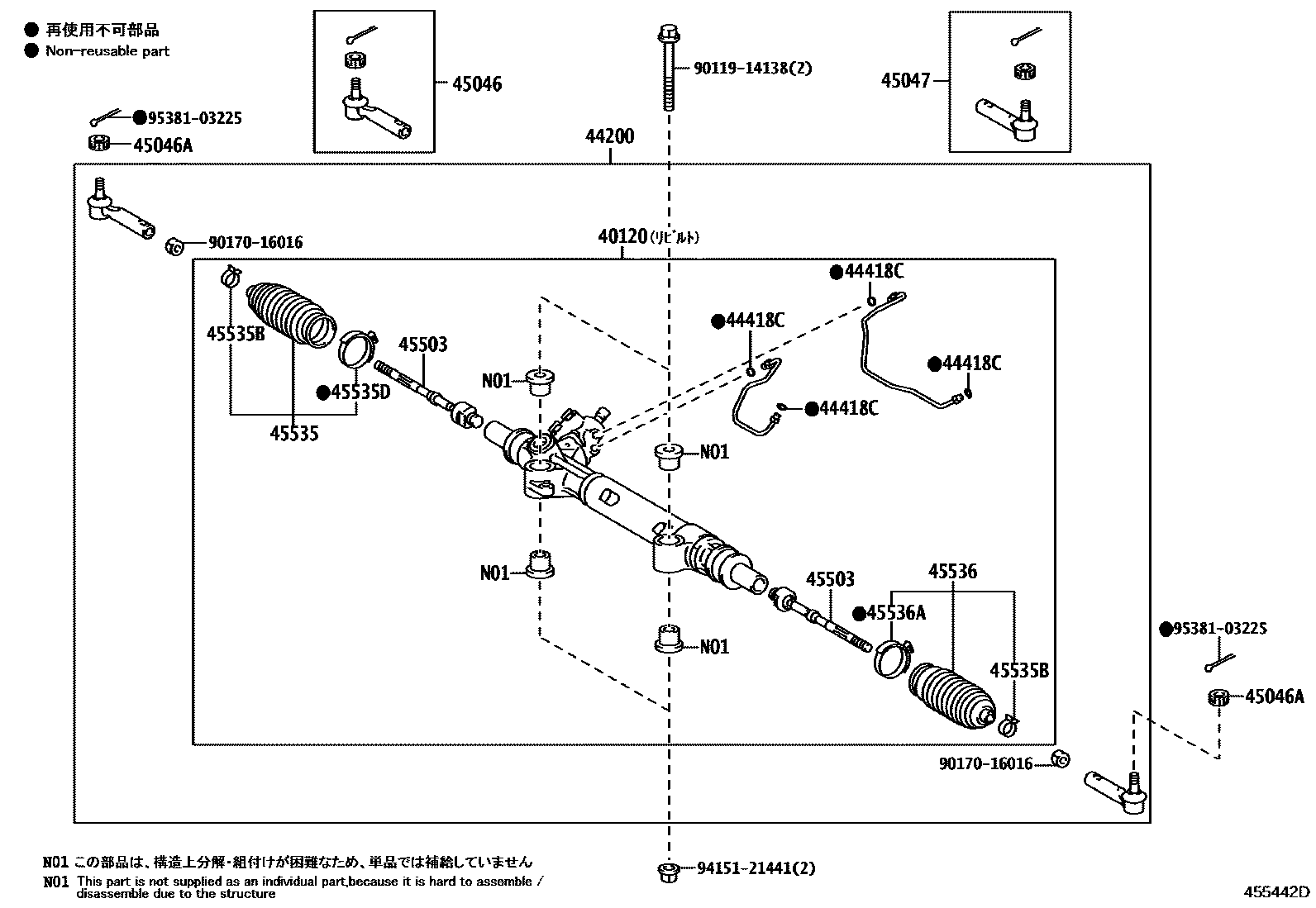

FRONT STEERING GEAR & LINK

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-60201iGRJ15#,TRJ150201206-201308

main40120-60202iGRJ15#,TRJ150201403-201506

main40120-60203iGDJ15#,TRJ150201506

main40120-60210iGRJ15#,TRJ150200908-201206

44200LINK ASSY, POWER STEERING

main44200-60201iGRJ15#,TRJ150201308-201402

main44200-60202iGRJ15#,TRJ150201403-201505

main44200-60203iGDJ15#,TRJ150201506

main44200-60210iGRJ15#,TRJ150200908-201206

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-03001×4iGRJ15#,TRJ150200908-201308

45046END SUB-ASSY, TIE ROD, RH

main45046-69245iGRJ15#,TRJ150200908-201308

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iGRJ15#,TRJ150200908-201308

45047END SUB-ASSY, TIE ROD, LH

main45046-69245iGRJ15#,TRJ150201308-201506

45503END SUB-ASSY, STEERING RACK

main45503-60040×2iGRJ15#,TRJ150200908-201308

45535BOOT, STEERING RACK, NO.1

main45535-69025iGRJ15#,TRJ150200908-201308

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iGRJ15#,TRJ150200908-201308

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-60008iGRJ15#,TRJ150200908-201308

45536BOOT, STEERING RACK, NO.2

main45535-69015iGRJ15#,TRJ150200908-201308

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-60008iGRJ15#,TRJ150200908-201308

9011914138

main90119-14138

9017016016

main90170-16016

9415121441

main94151-21441

9538103225

main95381-03225

16 parts on this diagram · 1 diagram in section
