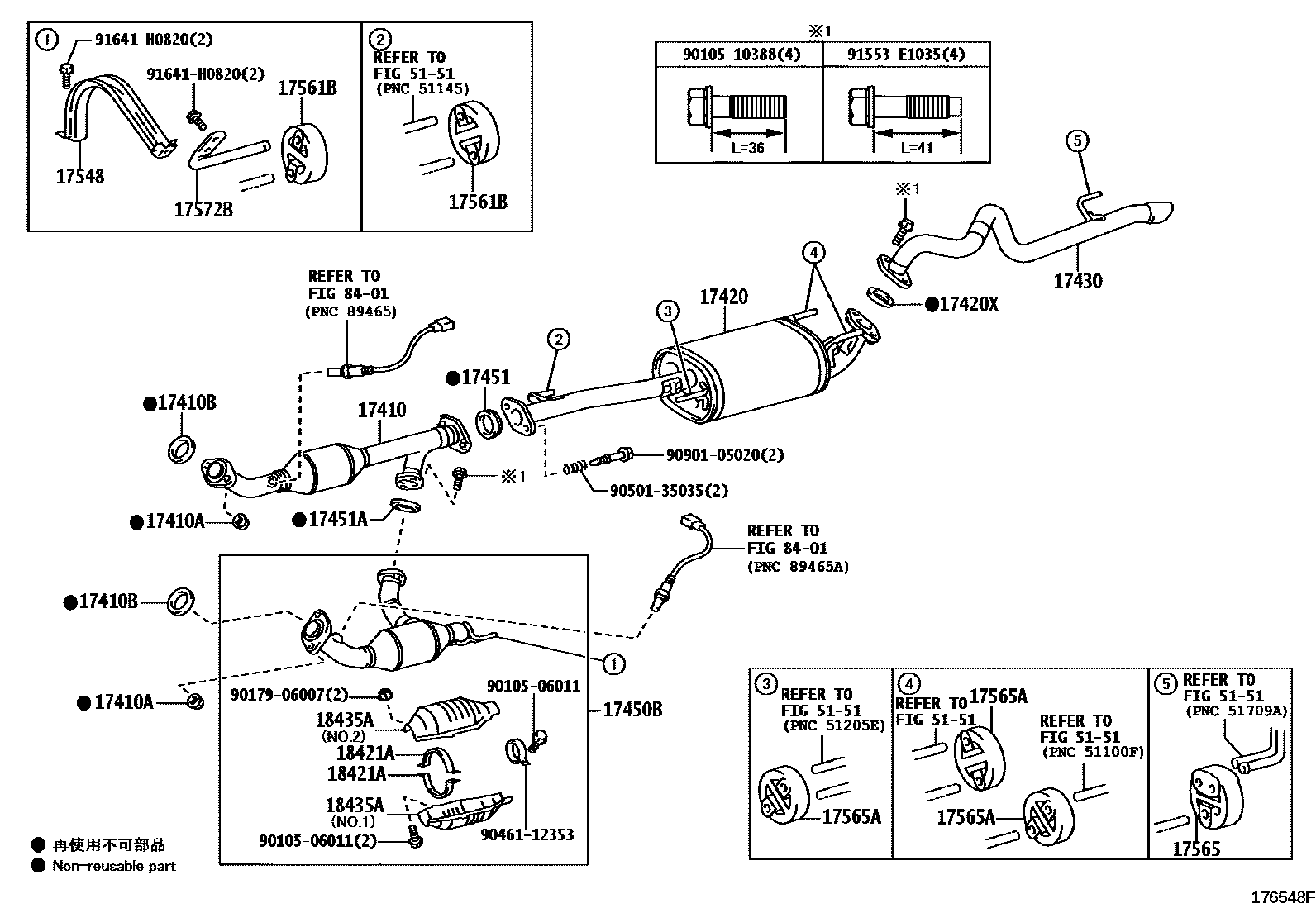

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-30360i1GDFTV..GDJ15#201506

main17410-31A10i1GRFE..GRJ15#200908-201308

main17410-75631i2TRFE..TRJ150200908-201211

main17410-75641i2TRFE..TRJ150201211-201308

main17410-75690i2TRFE..TRJ150201506

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×4i1GRFE..GRJ15#200908-201308

17410BGASKET, EXHAUST PIPE

main17451-22070i2TRFE..TRJ150201401-201506

main17451-74040i2TRFE..TRJ150200908-201308

main90917-06089×2i1GRFE..GRJ15#201308-201506

17420PIPE ASSY, EXHAUST, CENTER

main17420-30300i1GDFTV..GDJ15#201506

main17420-31340i1GRFE..GRJ15#200908-201308

main17420-31360i1GRFE..GRJ15#201405-201506

main17420-75590i2TRFE..TRJ150200908-201211

main17420-75620i2TRFE..TRJ150201211-201308

main17420-75650i2TRFE..TRJ150201409-201506

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06090i1GRFE,2TRFE..GRJ15#,TRJ150201308-201506

17430PIPE ASSY, EXHAUST, TAIL

main17430-31870i1GRFE..GRJ15#200908-201308

main17430-75890i2TRFE..TRJ150201109-201211

17450BPIPE ASSY, EXHAUST, FRONT NO.2

main17450-31111i1GRFE..GRJ15#201308-201506

17451GASKET, EXHAUST PIPE

main17451-28070i1GRFE,2TRFE..GRJ15#,TRJ150200908-200909

main17451-31020i1GRFE..GRJ15#201308-201506

main90917-06090i1GDFTV,2TRFE..GDJ15#,TRJ150201506

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06089i1GRFE..GRJ15#200908-201308

17548BRACKET, EXHAUST PIPE STOPPER

main17548-31011i1GRFE..GRJ15#200908-201308

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22040i1GRFE..GRJ15#; 2TRFE..TRJ150200908-201308

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-31050i1GRFE,2TRFE..GRJ15#,TRJ150201308-201506

main17565-74320i1GDFTV..GDJ15#201506

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×2i1GRFE..GRJ15#; 2TRFE..TRJ150201308-201506

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-31110i1GRFE..GRJ15#200908-201308

main17572-75290i2TRFE..TRJ150200908-201308

18421ASTAY, CONVERTER PROTECTOR, LH

main18421-75010×2i1GRFE,2TRFE..GRJ15#,TRJ150200908-201308

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-31030i1GRFE..GRJ15#200908-201308

main18435-75070×2i2TRFE..TRJ150200908-201301

main18435-75110×2i2TRFE..TRJ150201301-201308

main18435-75140×2i2TRFE..TRJ150201506

main18445-31010i1GRFE..GRJ15#201308-201506

5151FRAME

→ Go to FIG 51-51

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506011

main90105-06011

9010510388

main90105-10388

9017906007

main90179-06007

9046112353

main90461-12353

9050135035

main90501-35035

9090105020

main90901-05020

91553E1035

main91553-E1035

91641H0820

main91641-H0820

26 parts on this diagram · 3 diagrams in section
