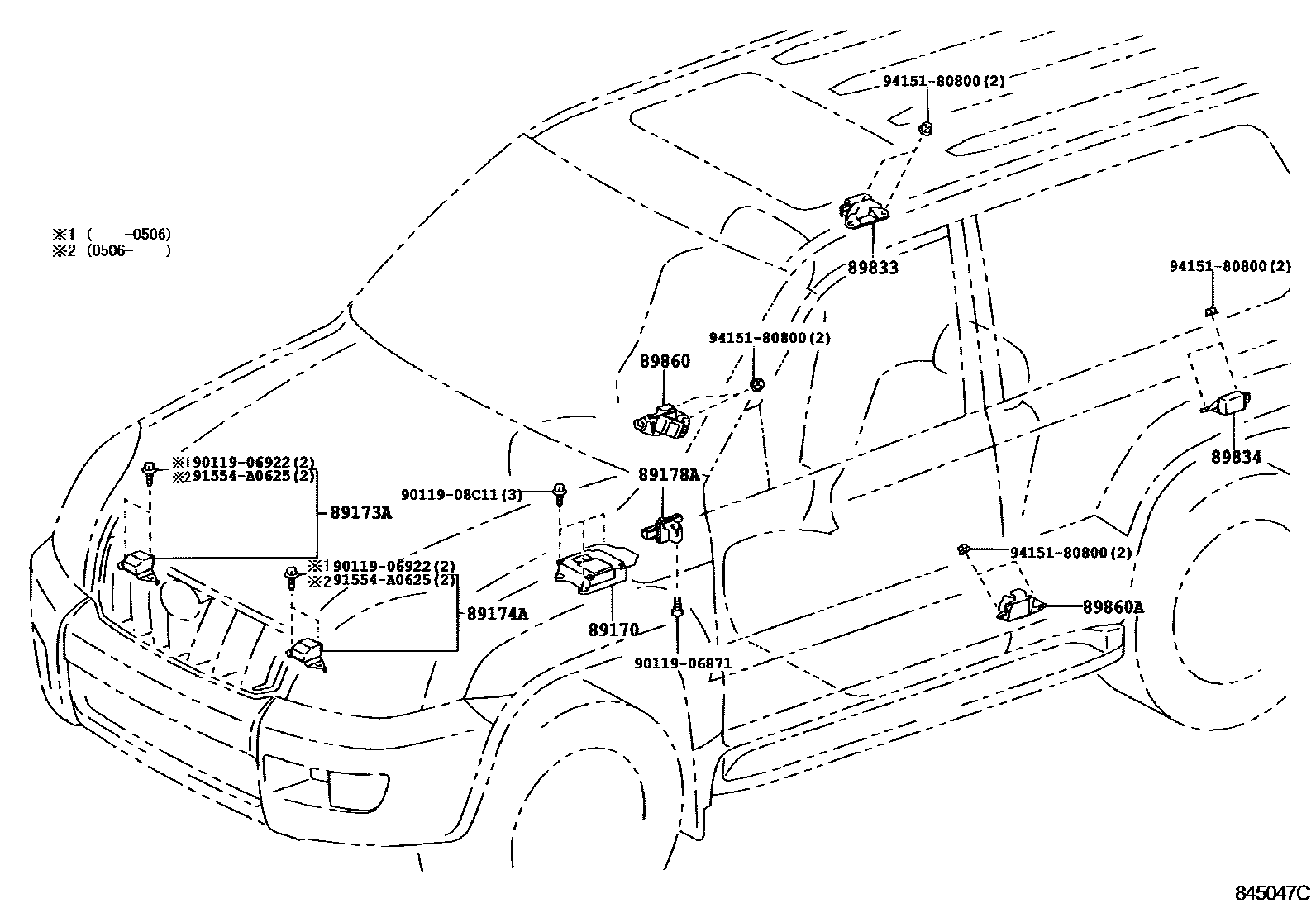

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-60120supersedes 89170-60060iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

89173ASENSOR, AIRBAG, FRONT RH

main89173-39335iKDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200506

main89173-49405iGRJ12#,KDJ12#,TRJ12#,VZJ12#200506-200908

89174ASENSOR, AIRBAG, FRONT LH

main89173-39335iKDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200506

main89173-49405iGRJ12#,KDJ12#,TRJ12#,VZJ12#200506-200908

89178ASENSOR, SEAT POSITION AIRBAG

main89178-0W010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

89833SENSOR, AIRBAG, REAR RH

main89833-60010iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209

main89833-60020iKDJ125,RZJ125,TRJ125,VZJ125200209

89834SENSOR, AIRBAG, REAR LH

main89833-60010iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209

main89833-60020iKDJ125,RZJ125,TRJ125,VZJ125200209

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-60020iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-60020iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

9011906871

main90119-06871

9011906922

main90119-06922

9011908C11

main90119-08C11

91554A0625

main91554-A0625

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
