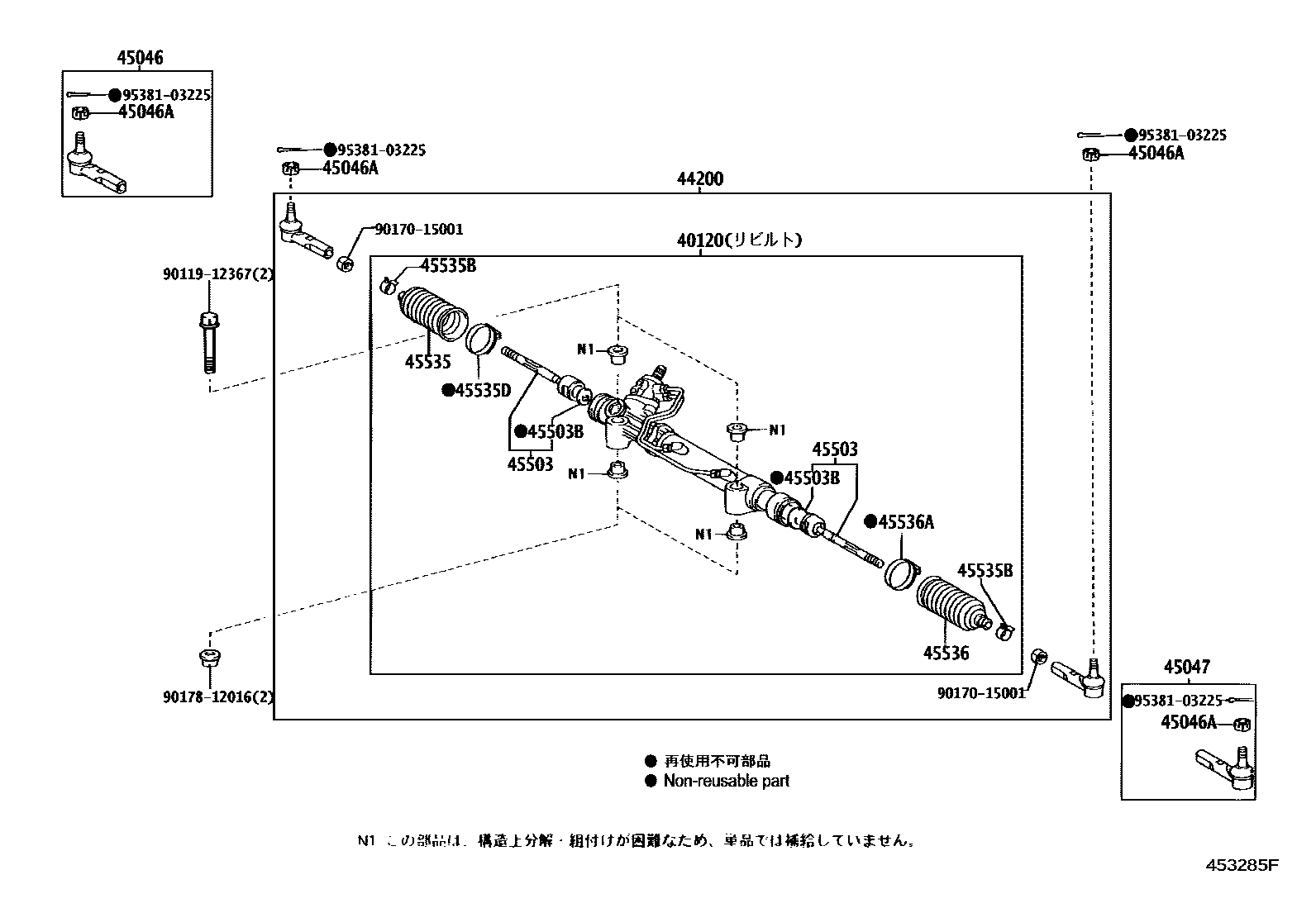

FRONT STEERING GEAR & LINK

0001 1 0002 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-35050iKDJ12#,VZJ12#200209-200311

main40120-35051iGRJ12#,KDJ12#,TRJ12#,VZJ12#200311

44200LINK ASSY, POWER STEERING

main44200-35050iKDJ12#,RZJ12#,VZJ12#200209-200311

main44200-35051iKDJ120200311-200707

45046END SUB-ASSY, TIE ROD, RH

main45046-39505iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iKDJ120200209-200707

45047END SUB-ASSY, TIE ROD, LH

main45046-39505iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

45503END SUB-ASSY, STEERING RACK

main45503-39235×2iKDJ12#,RZJ12#,VZJ12#200209-200309

main45503-39265×2iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200309

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-22001×2iKDJ12#,RZJ12#,VZJ12#200209-200707

45535BOOT, STEERING RACK, NO.1

main45535-26030iKDJ12#,RZJ12#,VZJ12#200209-200707

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iKDJ12#,RZJ12#,VZJ12#200209-200707

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iKDJ12#,RZJ12#,VZJ12#200209-200707

45536BOOT, STEERING RACK, NO.2

main45535-26030iKDJ12#,RZJ12#,VZJ12#200209-200707

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iKDJ12#,RZJ12#,VZJ12#200209-200707

9011912367

main90119-12367

9017015001

main90170-15001

9017812016

main90178-12016

9538103225

main95381-03225

16 parts on this diagram · 2 diagrams in section
