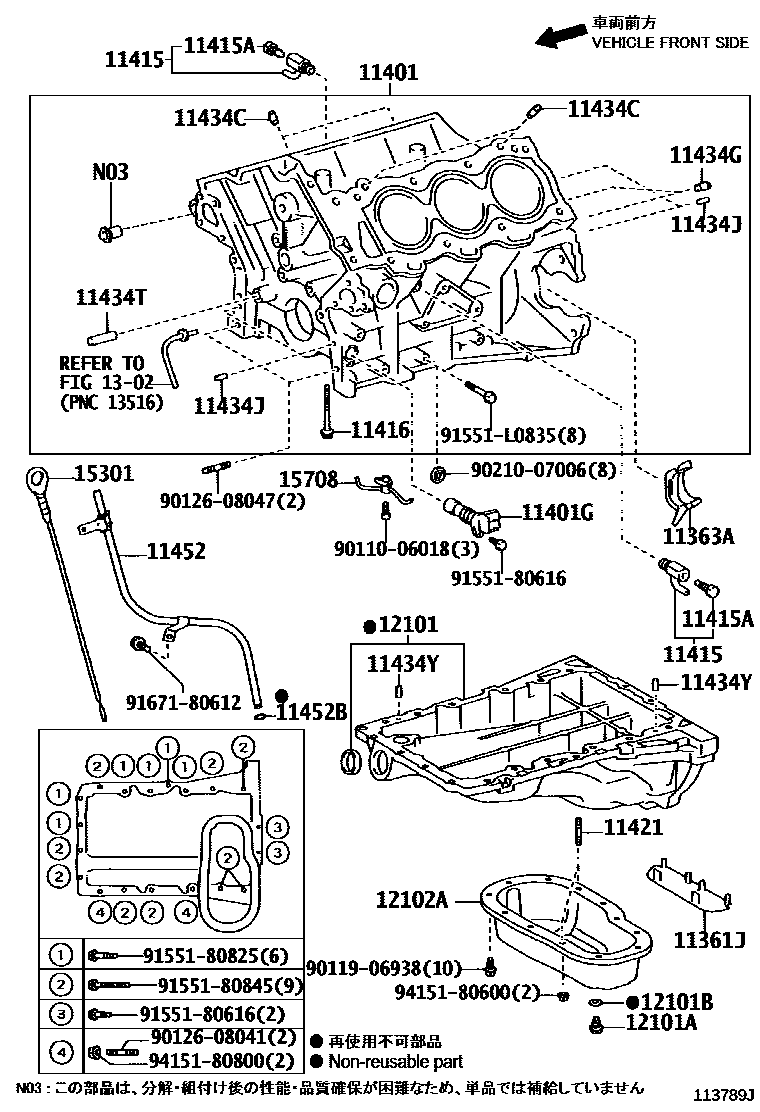

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
sub11363-31050
11401BLOCK SUB-ASSY, CYLINDER
sub11401-39725
sub11401-39886
sub11401-39886
sub11401-39886
sub11401-80896
sub11401-79687
sub11401-75081
sub11401-80795
11401GSENSOR, CRANK POSITION
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11421BOLT, STUD(FOR OIL PAN)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11434GPIN, STRAIGHT(FOR END PLATE)
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
1302
15301GAGE SUB-ASSY, OIL LEVEL
9011006018
main90110-06018
9011906938
main90119-06938
9012608041
main90126-08041
9012608047
main90126-08047
9021007006
main90210-07006
9155180616
main91551-80616
9155180825
main91551-80825
9155180845
main91551-80845
91551L0835
main91551-L0835
9167180612
main91671-80612
9415180600
main94151-80600
9415180800
main94151-80800
34 parts on this diagram · 6 diagrams in section
