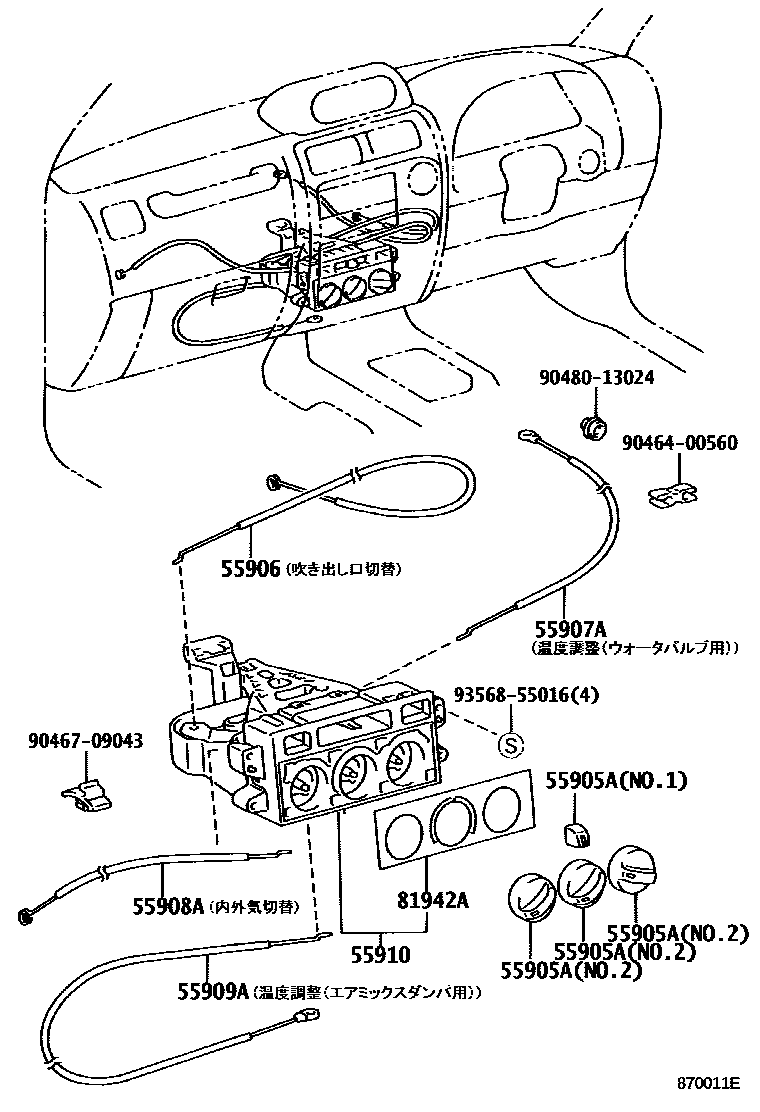

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���� ����-�--����� ���� 0002 1���� ����-�--�-� ���� 0003 1���� ������ 0004 1�� �-�����-� & �� ������ 0005 1�-����� ���(�-� �-���) 0006 1�� �-� ������

55905AKNOB, HEATER CONTROL

main55905-2B040iKZJ9#,VZJ9#199604-199801

main55905-60160×3iKZJ9#,VZJ9#199604-199801

main55905-60170iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX,TZ199604-199906

main55905-60180iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

main55905-60190iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX,TZ199604-199906

main55905-60200iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

main55905-60210iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX,TZ199604-199906

main55905-60220iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX,TZ199604-199906

main55905-60230iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

main55905-60240iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX,TZ199604-199906

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-60090iKZJ9#,VZJ9#199604-199801

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-60120iKZJ9#,VZJ9#199604-199801

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-60070iKZJ9#,VZJ9#199604-199801

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-60060iKZJ9#,VZJ9#199604-199801

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-60150iKZJ9#,VZJ9#199604-199801

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-60010iKZJ9#,VZJ9#199604-199801

9046400560

main90464-00560

9046709043

main90467-09043

9048013024

main90480-13024

9356855016

main93568-55016

11 parts on this diagram · 6 diagrams in section
