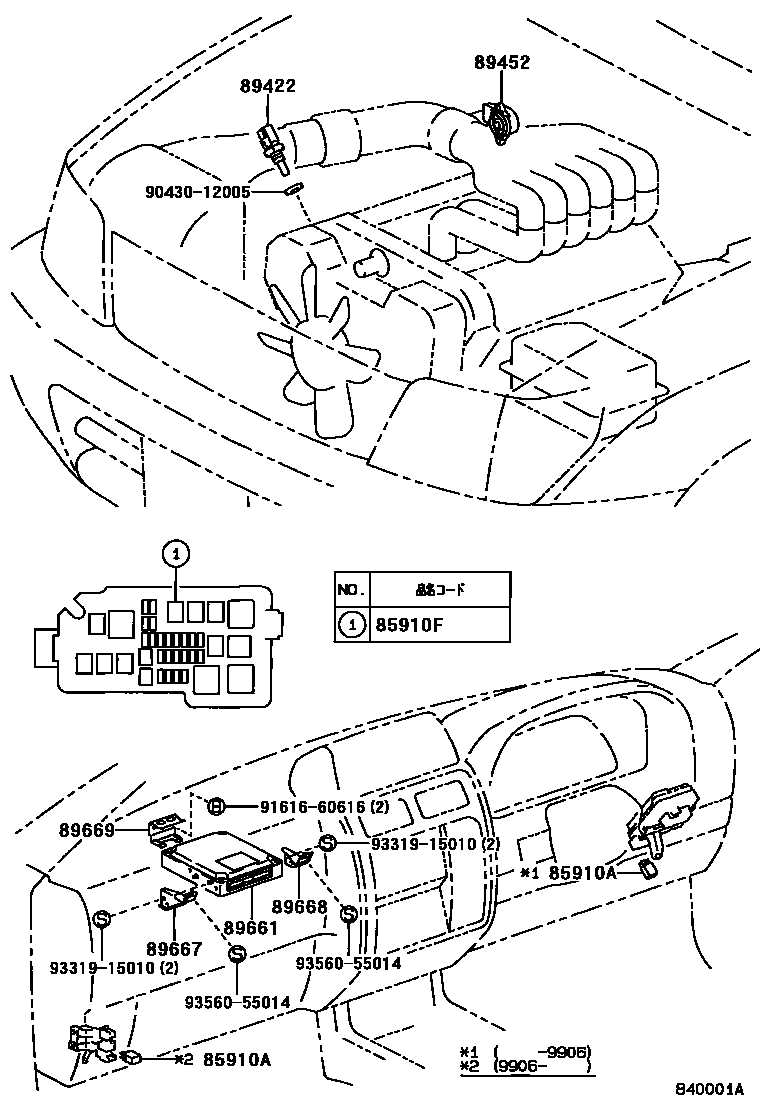

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-60020iRZJ9#; VZJ9#199906-200209

main90987-02012iRZJ9#,VZJ9#199604-199906

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iRZJ9#,VZJ9#199906-200209

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iRZJ9#,VZJ9#199906-200209

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iRZJ9#199704-199906

main89452-35020iVZJ9#199906-200209

89661COMPUTER, ENGINE CONTROL

main89661-60410iVZJ90..MTM199604-199906

main89661-60460iVZJ9#..ATM199604-199906

main89661-60570iRZJ9#199704-199906

main89666-60030iVZJ9#..ATM199906-200008

main89666-60040iVZJ90..MTM199906-200008

main89666-60600iRZJ9#200008-200209

main89666-60630iVZJ9#..ATM200008-200209

main89666-60640iVZJ90..MTM200008-200209

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60120iRZJ9#,VZJ9#199604-199906

main89667-60180iVZJ9#199906-200209

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60130iRZJ9#,VZJ9#199604-199906

main89668-60200iVZJ9#199906-200209

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35050iRZJ9#,VZJ9#199604-199906

main89669-35060iVZJ9#199906-200209

9043012005

main90430-12005

9161660616

main91616-60616

9331915010

main93319-15010

9356055014

main93560-55014

12 parts on this diagram · 2 diagrams in section
