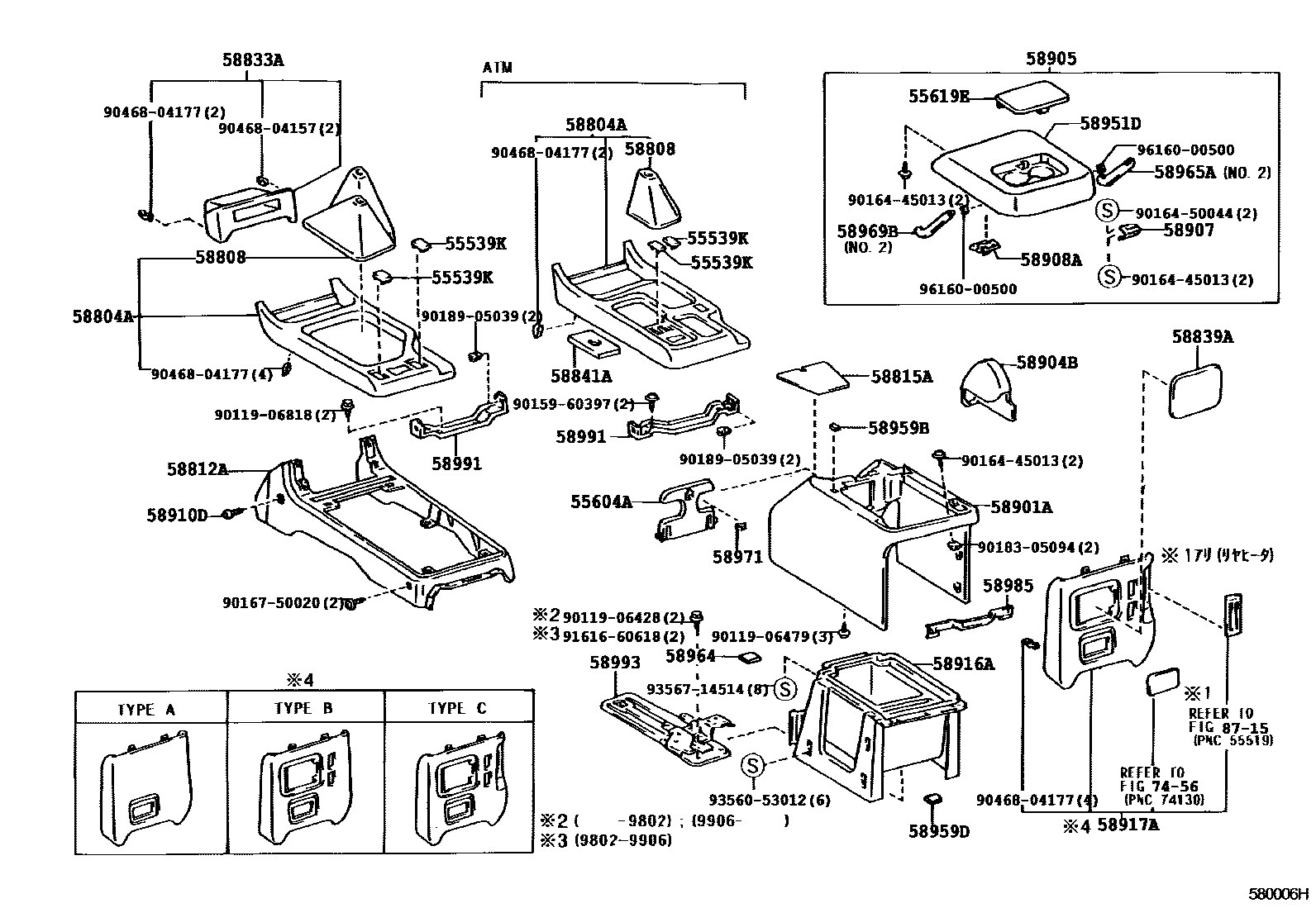

CONSOLE BOX & BRACKET

0001 1 0002 12��� ���-������

55539KCOVER, SPARE SWITCH HOLE

main55539-20020-C0iKZJ9#,RZJ9#,VZJ9#199604-199906

BLACK,TRIM1#

sub55539-20020

main55539-20020-C0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

BLACK,TRIM1#,4#

sub55539-20020

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-60010-B0iKZJ9#,RZJ9#,VZJ9#199604-199906

MD.MOON MIST,TRIM1#

main55604-60020-B0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

MD.MOON MIST,TRIM1#

sub55604-60020

main55604-60020-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

sub55604-60020

55619ECOVER, CUP HOLDER HOLE

main55619-60020-B0iKZJ9#,RZJ9#,VZJ95..RJ,RS,RX,TJ,TS,TX199604-200211

MD.MOON MIST,TRIM1#

sub55619-60020

main55619-60020-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

OAK,TRIM4#

sub55619-60020

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-60040-C0iKDJ9#,KZJ9#,RZJ9#,VZJ9#..ATM199906-200211

BLACK,TRIM1#,4#

main58804-60040-C0iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

BLACK,TRIM1#

main58804-60050-C0iKZJ9#,VZJ90..MTM199604-199906

BLACK,TRIM1#

main58804-60050-C0iKDJ9#,KZJ9#,VZJ90..MTM199906-200211

BLACK,TRIM1#,4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60080-C0iKDJ9#,KZJ9#,RZJ9#,VZJ9#..ATM199906-200211

BLACK,TRIM1#,4#

main58808-60080-C0iKZJ9#,RZJ9#,VZJ9#..ATM199604-199906

BLACK,TRIM1#

main58808-60090-C0iKDJ9#,KZJ9#,VZJ90..MTM199906-200211

BLACK,TRIM1#,4#

main58808-60090-C0iKZJ9#,VZJ90..MTM199604-199906

BLACK,TRIM1#

58812ABOX, CONSOLE, LOWER

main58812-60020-B0iKZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

sub58812-60020

main58812-60020-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

sub58812-60020

58815ACARPET, CONSOLE BOX

main58815-60010iKZJ9#,RZJ9#,VZJ9#199807-199906

main58815-60010-B0iKZJ9#,RZJ9#,VZJ9#199604-199807

MD.MOON MIST,TRIM1#

sub58815-60010

main58815-60070iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

58833ACOVER, CONSOLE, UPPER

main58833-60010-C0iKZJ9#,RZJ9#,VZJ9#199604-199906

BLACK,TRIM1#

main58833-60010-C0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

BLACK,TRIM1#,4#

58839ACOVER, CONSOLE BOX HOLE

main55549-60020-B0iKZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

sub55549-60020

main55549-60020-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX199906-200211

OAK,TRIM4#

sub55549-60020

58841ACOVER, SHIFTING HOLE

main58841-35010iKDJ9#,KZJ9#,RZJ9#,VZJ9#..ATM199604-200211

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-60060-B0iKZJ9#,RZJ9#,VZJ9#199604-199906

MD.MOON MIST,TRIM1#

main58911-60120-B0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

MD.MOON MIST,TRIM1#

main58911-60120-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-60010iKZJ9#,RZJ9#,VZJ9#199604-200211

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-60040-B0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-200211

MD.MOON MIST,TRIM1#

sub58905-60040

main58905-60040-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

OAK,TRIM4#

sub58905-60040

main58905-60050-B0iKZJ9#,RZJ9#,VZJ95..RX,TX199801-199906

sub58905-60060

main58905-60050-B0iKZJ9#,VZJ9#..RZ,TZ199604-199906

MD.MOON MIST,TRIM1#

sub58905-60060

main58905-60060-B0iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RX,RZ,TX,TZ199906-200211

sub58905-60060

main58905-60060-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RX,RZ,TX,TZ199906-200211

sub58905-60060

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-60020iKZJ9#,VZJ9#..RZ,TZ199604-199801

main58907-60020iKZJ9#,RZJ9#,VZJ9#..RX,RZ,TX199801-200211

main58907-60030iKZJ9#,RZJ9#,VZJ95..RJ,RS,RX,TJ,TS,TX199604-200211

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32040iKZJ9#..RJ,RS,RX,TJ,TS,TX199604-200211

main58908-32040iKZJ9#,RZJ9#,VZJ95..RJ,RS,RX,TJ,TS,TX199612-199906

main58908-60020iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RX,RZ,TX,TZ199604-200211

58910DCLIP(FOR CONSOLE BOX)

main90467-07041-B5iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

sub90467-07041

main90467-07041-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

sub90467-07041

58916AINSERT, CONSOLE BOX, REAR

main58916-60040-B0iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX199604-200211

MD.MOON MIST,TRIM1#

main58916-60040-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX199906-200211

OAK,TRIM4#

main58916-60050-B0iRZJ9#199704-200209

main58916-60050-B0iKZJ9#,VZJ9#199604-200211

main58916-60050-E0iKDJ9#,KZJ9#,VZJ9#199906-200211

main58916-60050-E0iRZJ9#199906-200209

58917ACOVER, CONSOLE BOX, REAR

main58917-60020-B0iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX199604-200211

main58917-60020-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX199906-200211

main58917-60030-B0iKZJ95,RZJ95,VZJ95..08S..(TX,TZ)199604-200211

main58917-60030-E0iKDJ95,KZJ95,RZJ95,VZJ95..08S..(TX,TZ)199906-200211

main58917-60040-B0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199604-200211

sub58917-60030

sub55519-60250

main58917-60040-E0iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

sub58917-60030

sub55519-60250

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-60040-B0iKZJ9#,RZJ9#,VZJ95..RJ,RS,RX,TJ,TS,TX199604-200211

MD.MOON MIST,TRIM1#

sub58951-60040

main58951-60040-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

OAK,TRIM4#

sub58951-60040

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60030iKZJ9#,RZJ9#,VZJ9#199604-200211

58959DCUSHION, REAR CONSOLE BOX

main58959-60010iKZJ9#,RZJ9#,VZJ9#199608-200211

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-60010iKDJ9#,KZJ9#,RZJ9#,VZJ9#199608-200211

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-60010iKZJ9#,VZJ9#199604-199608

main58965-60020iKZJ9#,VZJ9#..RZ,TZ199604-200211

main58965-60030iKZJ9#,RZJ9#,VZJ9#..RS,RX,RZ,TS,TX199608-200211

58969BSTOPPER, CONSOLE COMPARTMENT DOOR, NO.3

main58969-60010iKZJ9#,VZJ9#199604-199608

main58969-60020iKZJ9#,VZJ9#..RZ,TZ199604-200211

main58969-60030iKZJ9#,RZJ9#,VZJ9#199608-200211

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-26010iKZJ9#,VZJ9#199604-199608

main58971-60010iKZJ9#,RZJ9#,VZJ9#199608-200211

58985RETAINER, CONSOLE BOX

main58985-60050iKZJ9#,RZJ9#,VZJ9#199604-200211

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-60040iKZJ9#,VZJ90..MTM199604-200211

main58991-60050iKDJ9#,KZJ9#,RZJ9#,VZJ9#..ATM199604-200211

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58902-60010iKZJ9#,RZJ9#,VZJ9#199604-199906

main58902-60060iKZJ9#,RZJ9#,VZJ9#199906-200008

sub58902-60061

main58902-60061iKDJ9#,RZJ9#,VZJ9#200008-200211

7456

8715

9011906428

main90119-06428

9011906479

main90119-06479

9011906818

main90119-06818

9015960397

main90159-60397

9016445013

main90164-45013

9016450044

main90164-50044

9016750020

main90167-50020

9018305094

main90183-05094

9018905039

main90189-05039

9046804157

main90468-04157

9046804177

main90468-04177

9161660618

main91616-60618

9356053012

main93560-53012

9356714514

main93567-14514

9616000500

main96160-00500

45 parts on this diagram · 2 diagrams in section
