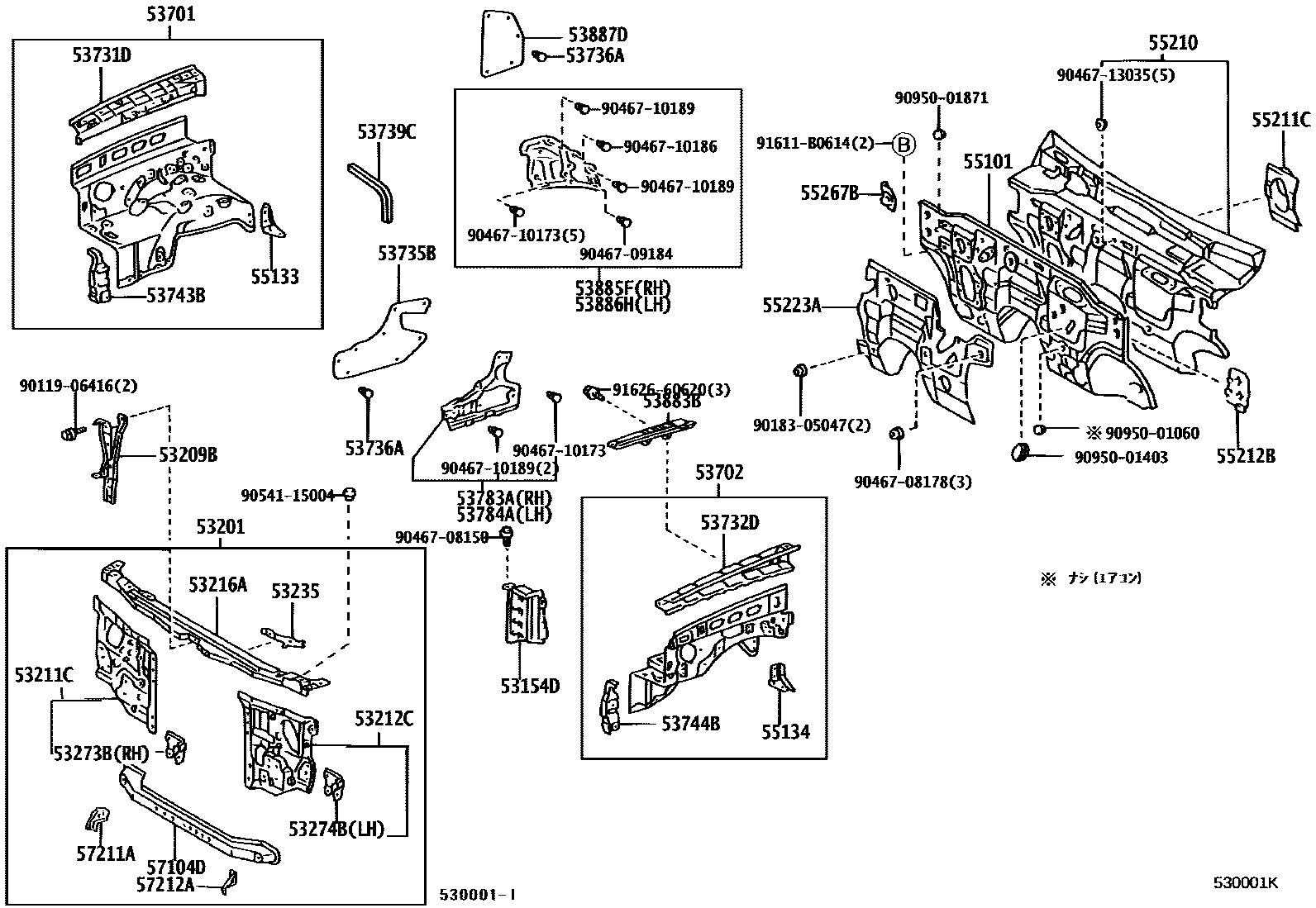

FRONT FENDER APRON & DASH PANEL

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-60020iKDJ9#,KZJ9#199906-200211

53201SUPPORT SUB-ASSY, RADIATOR

main53201-60060iKZJ9#,RZJ9#,VZJ9#199604-199811

main53201-60080iKZJ95,RZJ95,VZJ95199811-199906

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-60040iKZJ9#,RZJ9#,VZJ9#199604-199906

53211CSUPPORT, RADIATOR, RH

main53211-60900iKZJ9#,RZJ9#,VZJ9#199604-199810

main53211-60901iKZJ95,RZJ95,VZJ95199811-199906

53212CSUPPORT, RADIATOR, LH

main53212-60900iKZJ90,RZJ90,VZJ90199811-199906

main53212-60901iKZJ95,RZJ95,VZJ95199811-199906

53216ASUPPORT, RADIATOR, UPPER

main53216-60050iKZJ9#,RZJ9#,VZJ9#199604-199906

53235BRACKET, HORN MOUNTING

main53235-60010iKZJ9#,RZJ9#,VZJ9#199604-199906

53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH

main53273-60010iKZJ9#,RZJ9#,VZJ9#199604-199906

53274BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53274-60010iKZJ9#,RZJ9#,VZJ9#199604-199906

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-60550iRZJ9#,VZJ9#199604-199801

main53701-60551iRZJ9#,VZJ9#199801-199901

main53701-60552iRZJ9#,VZJ9#199906-200209

main53701-60612iVZJ9#..ATM199906-200209

main53701-60662iKDJ9#,KZJ9#..ATM..(RX,RZ,TX,TZ)199906-200211

main53701-60700iKZJ9#199604-199801

main53701-60701iKZJ9#199801-199901

main53701-60702iKZJ9#199901-199906

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-6A031iRZJ9#,VZJ9#199604-199801

main53702-6A032iRZJ9#,VZJ9#199906-200001

main53702-6A033iRZJ9#,VZJ9#200001-200209

main53702-6A070iKZJ9#199604-199608

main53702-6A071iKZJ9#199608-199801

main53702-6A072iKZJ9#199906-200001

main53702-6A073iKZJ9#200001-200008

main53702-6A080iKZJ9#199604-199608

main53702-6A081iKZJ9#199608-199801

main53702-6A390iKDJ9#200008-200211

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-60040iKZJ9#,RZJ9#,VZJ9#199604-199906

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-60030iRZJ9#,VZJ9#200001-200211

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-35020×2iKZJ9#..MTM;RZJ9#,VZJ9#199604-199906

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10186×21iKZJ9#..MTM;RZJ9#,VZJ9#199604-199906

53739CSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-35010iKZJ9#..ATM; KZJ9#..MTM;RZJ9#,VZJ9#199706-199807

main53739-35011iKZJ9#..ATM; KZJ9#..MTM;RZJ9#,VZJ9#199807-199906

main53739-60020iKZJ9#..ATM; KZJ9#..MTM;RZJ9#,VZJ9#199604-199706

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-60040iKZJ9#,RZJ9#,VZJ9#199604-199906

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-60040iKZJ9#,RZJ9#,VZJ9#199604-199906

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-35010iKZJ9#..ATM199604-199906

main53783-35011iVZJ90..ATM;KDJ9#,KZJ9#,VZJ95200004-200211

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-35010iKZJ9#..ATM199604-199906

main53784-35011iVZJ90..ATM;KDJ9#,KZJ9#,VZJ95200004-200211

53883BSEAL, FRONT FENDER, LH

main53883-60030iKZJ9#199604-199906

53885FSHIELD, FRONT FENDER SPLASH, REAR RH

main53885-60010iKZJ9#..ATM199604-199807

main53885-60011iKZJ9#..ATM199807-199906

main53885-60012iVZJ90..ATM;KDJ9#,KZJ9#,VZJ95200004-200211

53886HSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-60010iKZJ9#,RZJ9#,VZJ9#199604-199807

main53886-60011iKZJ9#,RZJ9#,VZJ9#199807-199906

main53886-60012iKZJ9#,RZJ9#,VZJ9#199906-200004

main53886-60013iKDJ9#,KZJ9#,RZJ9#,VZJ9#200004-200211

53887DSEAL, FRONT FENDER SPLASH SHIELD, NO.1

main53887-35010iKZJ9#..MTM;RZJ9#,VZJ9#199604-199906

55101PANEL SUB-ASSY, DASH

main55101-6C870iVZJ90..MTM199906-200209

main55101-6C890iRZJ9#,VZJ9#..ATM199604-199906

main55101-6D010iKZJ9#..MTM199604-199906

main55101-6D020iKDJ9#,KZJ9#..ATM199906-200211

main55101-6D540iVZJ9#..ATM199908-200209

main55101-6D550iKDJ9#,KZJ9#..ATM..(RX,RZ,TX,TZ)199908-200211

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-35010iKZJ9#,RZJ9#,VZJ9#199604-199906

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-35010iKZJ9#,RZJ9#,VZJ9#199604-199906

55210INSULATOR ASSY, DASH PANEL

main55210-60050iKZJ9#,RZJ9#,VZJ9#199604-199901

main55210-60051iKZJ9#,RZJ9#,VZJ9#199901-199906

55211CCOVER, DASH PANEL INSULATOR

main55211-35020iKZJ9#,RZJ9#,VZJ9#199604-199902

main55211-35021iKZJ9#,RZJ9#,VZJ9#199902-199906

55212BCOVER, DASH PANEL INSULATOR, NO.2

main55212-35010iKZJ9#,RZJ9#,VZJ9#199604-199807

main55212-35020iKZJ9#,RZJ9#,VZJ9#199807-199906

55223AINSULATOR, DASH PANEL, OUTER

main55223-35010iKZJ9#,RZJ9#,VZJ9#199604-199807

main55223-35011iKZJ9#,RZJ9#,VZJ9#199807-199906

main55223-35012iKDJ9#,KZJ9#,RZJ9#,VZJ9#200004-200211

55267BCOVER, DASH PANEL INSULATOR, NO.3

main55267-35010iKZJ9#,RZJ9#,VZJ9#199604-199906

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-60030iKZJ9#,RZJ9#,VZJ9#199604-199906

57211ABRACKET, BODY MOUNTING, NO.1 RH

main57211-35010iKZJ9#,RZJ9#,VZJ9#199604-199906

57212ABRACKET, BODY MOUNTING, NO.1 LH

main57212-35030iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

9011906416

main90119-06416

9018305047

main90183-05047

9046708150

main90467-08150

9046708178

main90467-08178

9046709184

main90467-09184

9046710173

main90467-10173

9046710186

main90467-10186

9046710189

main90467-10189

9046713035

main90467-13035

9054115004

main90541-15004

9095001060

main90950-01060

9095001403

main90950-01403

9095001871

main90950-01871

91611B0614

main91611-B0614

9162660620

main91626-60620

50 parts on this diagram · 1 diagram in section
