FRONT BUMPER & BUMPER STAY

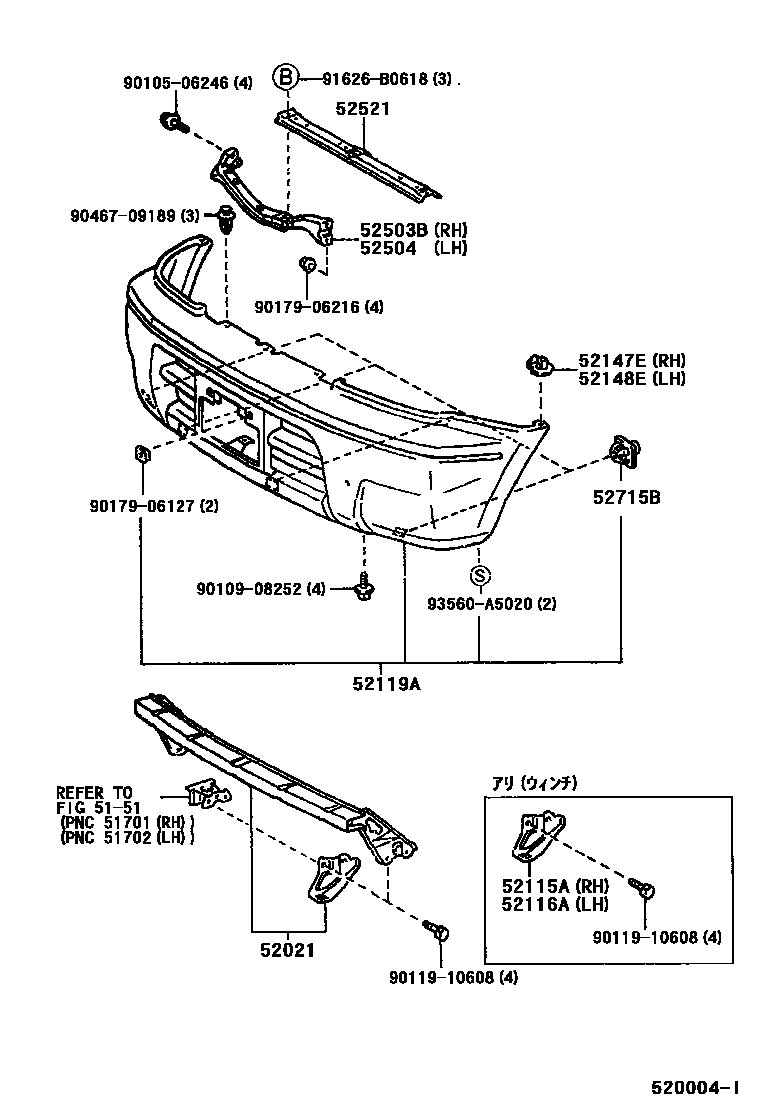

0001 1 0002 1 0003 1 0004 1

5151FRAME

→ Go to FIG 51-51

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60010iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-60050iKZJ9#,RZJ9#,VZJ9#199604-199906

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-60090iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

52119ACOVER, FRONT BUMPER

main52104-60010-B0iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199906-199911

GRAY ME.,K80 ,KC7 ,KC8 ,KC9; GRAY ME.,K80 ,KC8 ,KC9

main52104-60010-B1iKDJ90,RZJ90,VZJ90..RX,RZ200108-200211

SILVER ME.,K72 ,K73

main52104-60010-B2iKDJ90,RZJ90,VZJ90..RX,RZ; KDJ95,RZJ95..08S..ATM..TX200008-200108

GRAY ME.,K80 ,KC7 ,KC8 ,KH0; GRAY ME.,K80 ,KC8 ,KH0

main52104-60010-E0iKZJ95,RZJ95,VZJ95..TX,TZ199906-199911

LT. GRAYISH BEIGE ME,K75

main52104-60010-E1iKDJ95,KZJ95,RZJ95,VZJ95..TX,TZ199911-200211

LT.GRAYISH BEIGE ME.,K75

main52104-60020-B0iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199906-199911

main52104-60020-B1iKDJ90,RZJ90,VZJ90..RX,RZ200108-200211

main52104-60020-B2iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199911-200008

main52104-60020-E0iKZJ95,RZJ95,VZJ95..TX,TZ199906-199911

main52104-60020-E1iKDJ95,KZJ95,RZJ95,VZJ95..TX,TZ199911-200211

main52104-60030-B0iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199906-200008

main52104-60030-B1iKZJ95..TX,TZ;KDJ95,RZJ95..08S..ATM..TX199906-200211

main52104-60030-B2iKDJ90,RZJ90,VZJ90..RX,RZ200008-200108

main52104-60030-E0iKZJ95,RZJ95,VZJ95..TX,TZ199906-200008

main52104-60030-E1iKDJ95,RZJ95,VZJ95..TX,TZ200008-200211

main52104-60040-B0iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199906-199911

main52104-60040-B1iKDJ90,KZJ90,RZJ90,VZJ90..RX,RZ199906-200108

main52104-60040-B2iKDJ90,RZJ90,VZJ90..RX,RZ; KDJ95,RZJ95..08S..ATM..TX200008-200108

main52104-60040-E0iKZJ95,RZJ95,VZJ95..TX,TZ199906-199911

main52104-60040-E1iKDJ95,KZJ95,RZJ95,VZJ95..TX,TZ199911-200211

main52104-60050-B0iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199906-200008

main52104-60050-B1iKZJ95..TX,TZ;KDJ95,RZJ95..08S..ATM..TX199906-200211

main52104-60050-B2iVZJ95;KDJ95..TZ;KDJ95..MTM..TX;KDJ95,RZJ95..05S200008-200211

main52104-60050-E0iKZJ95,RZJ95,VZJ95..TX,TZ199906-200008

main52104-60050-E1iKDJ95,RZJ95,VZJ95..TX,TZ200008-200211

main52104-60080-B0iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199906-200008

main52104-60080-B1iVZJ95;KDJ95..TZ;KDJ95..MTM..TX;KDJ95,RZJ95..05S200008-200211

main52104-60080-B2iKDJ90,RZJ90,VZJ90..RX,RZ200108-200211

main52104-60080-E0iKZJ95,RZJ95,VZJ95..TX,TZ199906-200008

main52104-60080-E1iKDJ95,RZJ95,VZJ95..TX,TZ200008-200211

main52119-60010iKZJ9#..RJ,RS,TJ,TS199604-199906

main52119-60030iKZJ9#..RJ,RS,TJ,TS199604-199906

main52119-60040-A0iKZJ90,RZJ90,VZJ90..RX,RZ199604-199801

main52119-60040-B0iKZJ95,RZJ95,VZJ95..TX,TZ199604-199801

main52119-60040-B1iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ; KZJ95,RZJ95..08S..ATM..TX199801-199906

main52119-60040-C0iKZJ90,RZJ90..ATM..RX199704-199712

TYPE S *(S),BLACK ME.,K17

main52119-60040-E0iKZJ95,RZJ95,VZJ95..TX,TZ199801-199906

LT. GRAYISH BEIGE ME,K75

main52119-60060-A0iKZJ90,RZJ90,VZJ90..RX,RZ199604-199801

main52119-60060-B0iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199801-199906

main52119-60060-B1iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199801-199906

main52119-60060-C0iKZJ90,RZJ90..ATM..RX199704-199712

main52119-60060-E0iKZJ95,RZJ95,VZJ95..TX,TZ199801-199906

main52119-60070iKZJ9#..RJ,RS,TJ,TS199604-199801

main52119-60080-A0iKZJ90,RZJ90,VZJ90..RX,RZ199604-199801

main52119-60080-B0iKZJ95,RZJ95,VZJ95..TX,TZ199604-199801

main52119-60230-B0iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199801-199906

main52119-60230-B1iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199801-199906

main52119-60230-E0iKZJ95,RZJ95,VZJ95..TX,TZ199801-199906

main52119-60240-B0iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ199801-199906

main52119-60240-B1iKZJ90,RZJ90,VZJ90..RX,RZ; KZJ95,RZJ95,VZJ95..TX,TZ; KZJ95,RZJ95..08S..ATM..TX199801-199906

main52119-60240-E0iKZJ95,RZJ95,VZJ95..TX,TZ199801-199906

main52119-60250iKZJ9#..RS,TS199801-199906

main52119-60260iKZJ9#..RS,TS199801-199906

main52119-60350iKDJ9#,KZJ9#..RS,TS199906-200211

main52119-60360iKDJ9#,KZJ9#..RS,TS199906-200211

main52119-60370iKDJ9#,KZJ9#..RS,TS199906-200211

main52119-60380iKDJ9#,KZJ9#..RS,TS199906-200211

main52119-60390iKDJ9#,KZJ9#..RS,TS199906-200211

main52119-60420iKDJ9#,KZJ9#..RS,TS199906-200211

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-16080iKDJ9#,KZJ9#..RS,TS199906-200211

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-16080iKZJ9#..RJ,RS,TJ,TS199604-199906

52503BRETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 RH

main52503-60020iKZJ9#,RZJ9#,VZJ9#199604-199906

main52503-60030iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

52504RETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 LH

main52504-60010iKZJ9#,RZJ9#,VZJ9#199604-199906

main52504-60020iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-60020iKZJ9#,RZJ9#,VZJ9#199604-199906

main52521-60040iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

52715BINSERT, FRONT BUMPER MOULDING

main52715-60020×4iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

9010506246

main90105-06246

9010908252

main90109-08252

9011910608

main90119-10608

9017906127

main90179-06127

9017906216

main90179-06216

9046709189

main90467-09189

91626B0618

main91626-B0618

93560A5020

main93560-A5020

19 parts on this diagram · 4 diagrams in section
