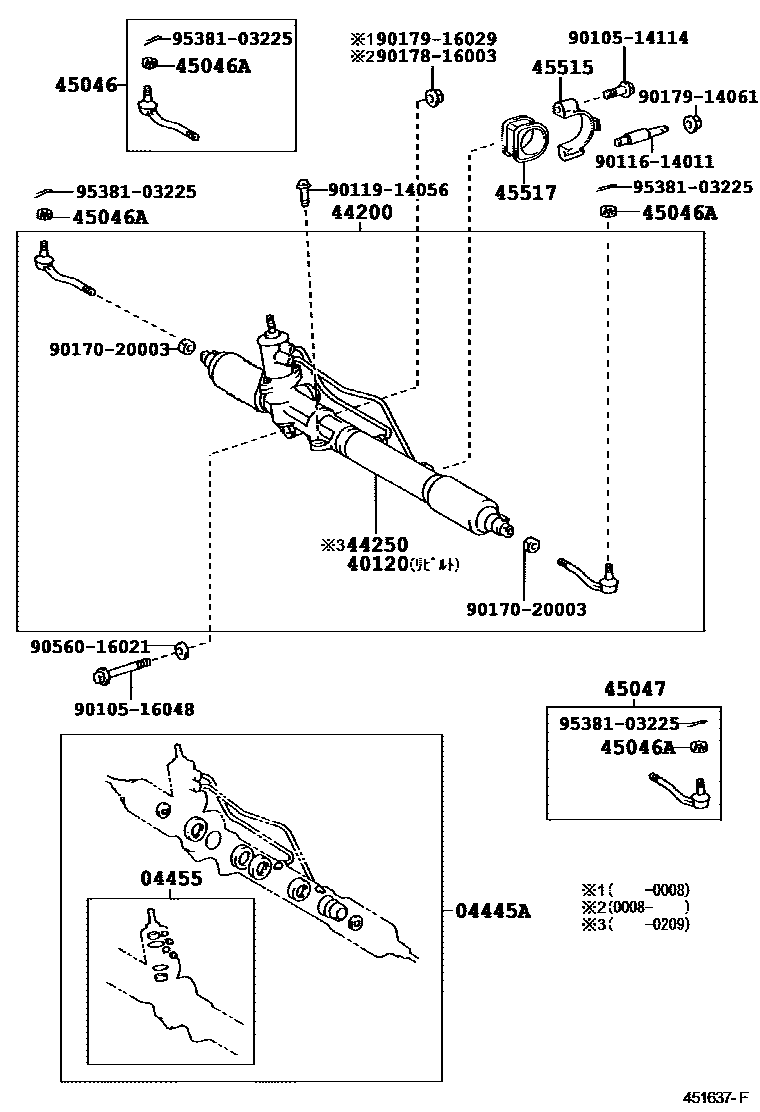

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-35160iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-35130iKZJ9#,RZJ9#,VZJ9#199604-199906

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-60011iKZJ9#,RZJ9#,VZJ9#199604-199906

main40120-60012iKZJ9#200003-200008

44200LINK ASSY, POWER STEERING

main44200-60012iKZJ9#,RZJ9#,VZJ9#199604-199906

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-60010iKZJ9#,RZJ9#,VZJ9#199604-199708

main44250-60011iKZJ9#,RZJ9#,VZJ9#199708-199906

main44250-60012iKZJ9#,RZJ9#,VZJ9#199906-200209

45046END SUB-ASSY, TIE ROD, RH

main45046-39335iKZJ9#,RZJ9#,VZJ9#199604-199906

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iKZJ9#,RZJ9#,VZJ9#199604-199906

45047END SUB-ASSY, TIE ROD, LH

main45047-39215iKZJ9#,RZJ9#,VZJ9#199604-199906

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-35040iKZJ9#,RZJ9#199604-199906

main45515-35050iVZJ9#199906-200209

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-35010iKZJ9#,RZJ9#,VZJ9#199604-199906

9010514114

main90105-14114

9010516048

main90105-16048

9011614011

main90116-14011

9011914056

main90119-14056

9017020003

main90170-20003

9017816003

main90178-16003

9017914061

main90179-14061

9017916029

main90179-16029

9056016021

main90560-16021

9538103225

main95381-03225

20 parts on this diagram · 2 diagrams in section
