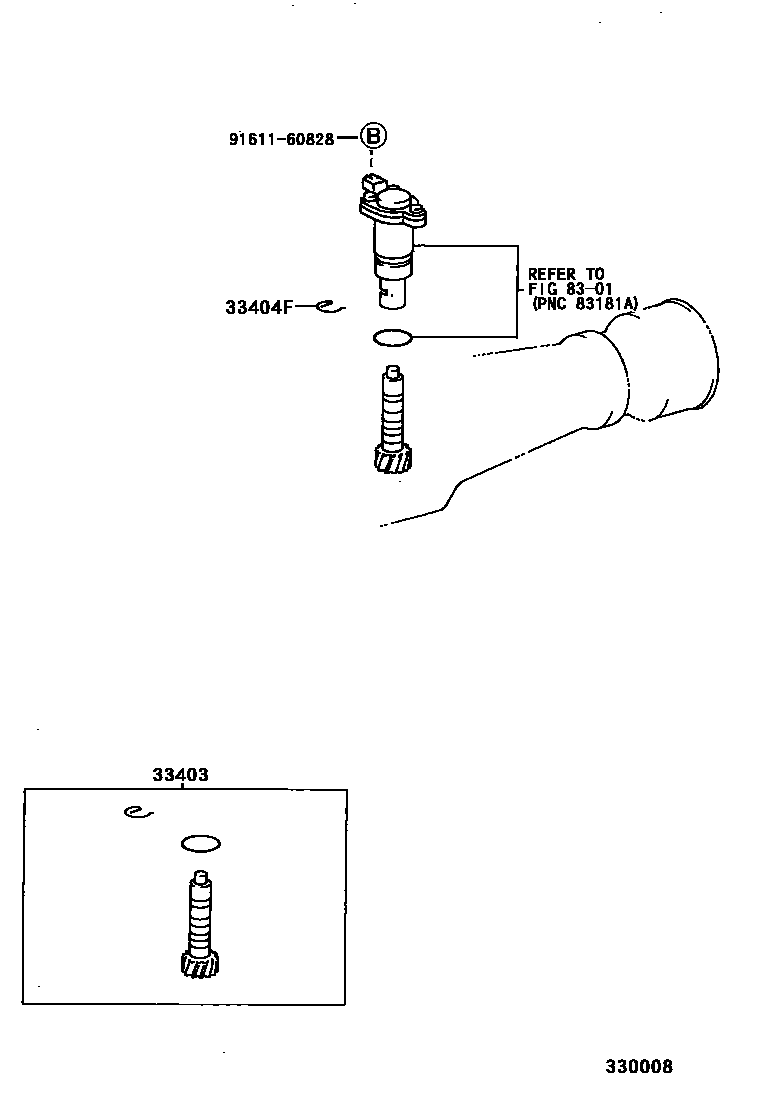

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39345iVZJ90..MTM199906-200209

main33403-39365iKZJ9#..MTM199605-199906

main33403-39525iKZJ9#..MTM199604-199605

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iKZJ9#,VZJ90..MTM199604-199906

8301METER

→ Go to FIG 83-01

9161160828

main91611-60828

4 parts on this diagram · 1 diagram in section
