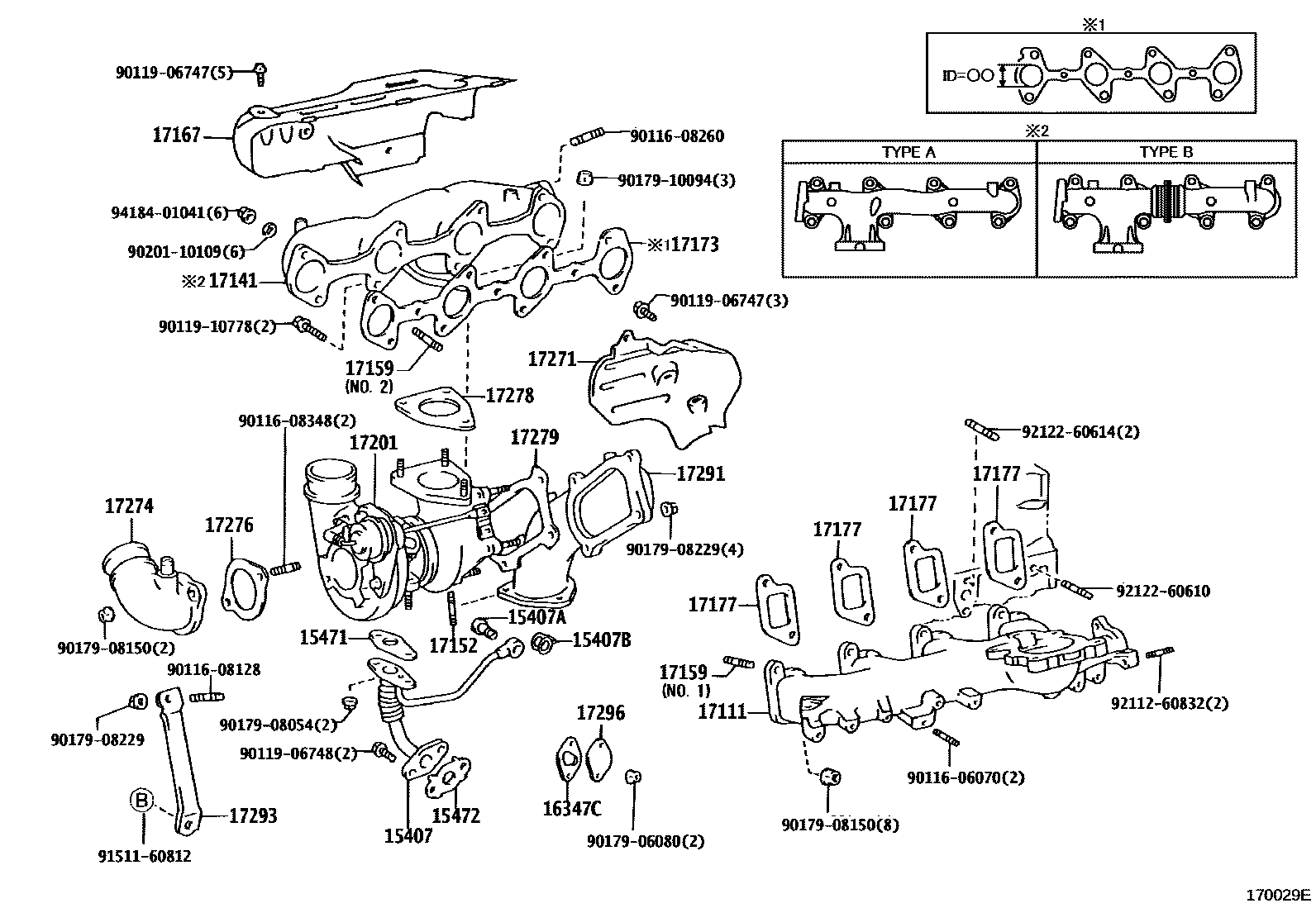

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-30010i1KDFTV..KDJ9#200008-200211

main15407-67010i1KZTE..KZJ9#199604-200008

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-12097i1KZTE..KZJ9#199604-200211

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90904-30004i1KZTE..KZJ9#199604-200211

15471GASKET, TURBO OIL INLET

main15471-30010i1KDFTV..KDJ9#200008-200211

sub15471-30011

main15471-58010i1KZTE..KZJ9#199604-200008

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-67010i1KZTE..KZJ9#199604-200211

sub15472-30010

16347GASKET, WATER BY-PASS

main16347-30010i1KDFTV..KDJ9#200008-200211

16347CGASKET(FOR TURBO WATER PIPE)

main16347-67010i1KZTE..KZJ9#199604-200008

17111MANIFOLD, INTAKE

main17101-62020i5VZFE..VZJ9#199604-200209

main17111-30050i1KDFTV..KDJ9#200008-200108

sub17111-30070

main17111-30070i1KDFTV..KDJ9#200108-200202

sub17111-30071

main17111-30071i1KDFTV..KDJ9#200202-200211

main17111-67050i1KZTE..KZJ9#199604-199906

main17111-67071i1KZTE..KZJ9#199906-200008

main17111-75030i3RZFE..RZJ9#199704-199708

sub17111-75031

main17111-75031i3RZFE..RZJ9#199708-200209

17141MANIFOLD, EXHAUST

main17104-30010i1KDFTV..KDJ9#200008-200211

main17104-67010i1KZTE..KZJ9#199607-199906

main17104-67010i1KZTE..KZJ9#199906-200008

main17141-62090i5VZFE..VZJ9#199604-200209

main17141-67020i1KZTE..KZJ9#199604-199607

main17141-75040i3RZFE..RZJ9#199704-200209

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10088i1KZTE..KZJ9#199604-200211

main90116-10149i3RZFE..RZJ9#199704-200209

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08251i5VZFE..VZJ9#199604-200209

main90116-10150i5VZFE..VZJ9#199604-200209

main90116-10163i3RZFE..RZJ9#199704-200209

main90126-10017i1KZTE..KZJ9#199604-200008

main92122-80822i1KZTE..KZJ9#199604-200008

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-30010i1KDFTV..KDJ9#200008-200211

sub17167-30011

main17167-62051i5VZFE..VZJ9#199604-200209

main17167-67030i1KZTE..KZJ9#199604-199606

main17167-67040i1KZTE..KZJ9#199606-200008

main17167-75011i3RZFE..RZJ9#199704-199910

sub17167-75012

sub90119-06894

main17167-75012i3RZFE..RZJ9#199910-200209

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-30010i1K#..KDJ9#,KZJ9#200002-200108

main17173-30020i1KDFTV..KDJ9#200108-200211

main17173-62050i5VZFE..VZJ9#199604-200209

main17173-67020i1KZTE..KZJ9#199604-199607

main17173-67030i1KZTE..KZJ9#199607-200002

sub17173-30010

main17173-75020i3RZFE..RZJ9#199704-200209

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-30010i1KDFTV..KDJ9#200008-200211

sub17177-30011

main17177-62060i5VZFE..VZJ9#199604-200209

main17177-67010i1KZTE..KZJ9#199604-199608

sub17177-67011

main17177-67011i1KZTE..KZJ9#199608-200008

main17177-75020i3RZFE..RZJ9#199704-200209

17201TURBOCHARGER SUB-ASSY

main17201-30010i1KDFTV..KDJ9#200008-200211

sub17201-30011

sub90116-08408

main17201-67020i1KZTE..KZJ9#199604-199906

main17201-67040i1KZTE..KZJ9#199906-200008

17271INSULATOR, TURBO, NO.1

main17271-30010i1KDFTV..KDJ9#200008-200202

sub17271-30011

main17271-30011i1KDFTV..KDJ9#200202-200211

main17271-67030i1KZTE..KZJ9#199604-200008

17274ELBOW, COMPRESSOR INLET

main17274-30010i1KDFTV..KDJ9#200008-200211

main17274-67011i1KZTE..KZJ9#199604-200008

17276GASKET, COMPRESSOR INLET

main17276-67010i1KZTE..KZJ9#199604-200211

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-67010i1KZTE..KZJ9#199604-200211

17279GASKET, TURBINE OUTLET ELBOW

main17279-30010i1KDFTV..KDJ9#200008-200108

sub17279-30030

main17279-30030i1KDFTV..KDJ9#200108-200211

sub17279-30031

main17279-67010i1KZTE..KZJ9#199604-200008

17291ELBOW, TURBINE OUTLET

main17291-30010i1KDFTV..KDJ9#200008-200211

main17291-67040i1KZTE..KZJ9#199604-200008

17293STAY, TURBOCHARGER

main17293-30010i1KDFTV..KDJ9#200008-200211

main17293-67010i1KZTE..KZJ9#199604-200008

17296PLATE, BEARING HOUSING, SIDE

main17296-28010i1KZTE..KZJ9#199604-200008

9011606070

main90116-06070

9011608128

main90116-08128

9011608260

main90116-08260

9011608348

main90116-08348

9011906747

main90119-06747

9011906748

main90119-06748

9011910778

main90119-10778

9017906080

main90179-06080

9017908054

main90179-08054

9017908150

main90179-08150

9017908229

main90179-08229

9017910094

main90179-10094

9020110109

main90201-10109

9151160812

main91511-60812

9211260832

main92112-60832

9212260610

main92122-60610

9212260614

main92122-60614

9418401041

main94184-01041

41 parts on this diagram · 5 diagrams in section
