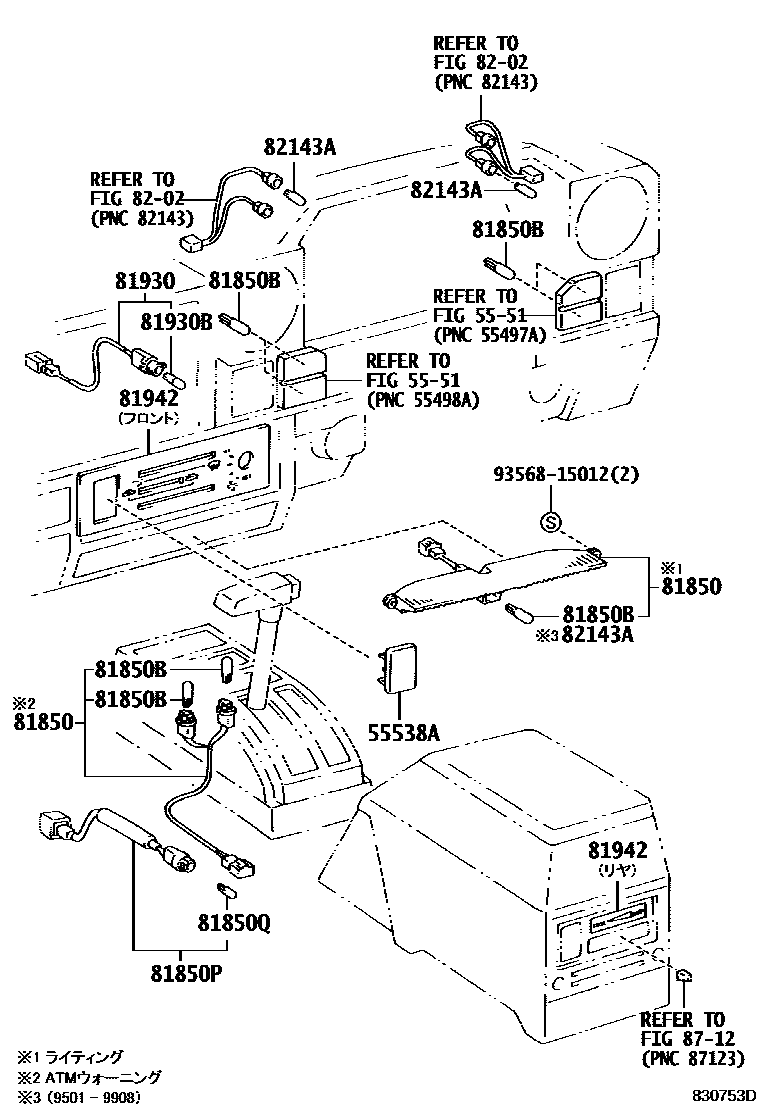

INDICATOR

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

55538ACOVER, COOLER SWITCH HOLE

main55539-32010-11iHZJ7#,PZJ7#..STD,ZX; KZJ7#,PZJ7#..EX,LX,SX199305-199308

BLACK,TRIM1#; BLACK,TRIM1#,4#

main55539-32010-C0iHZJ70,73,77,KZJ7#,PZJ7#..(HT,WG)..(EX,LX,SX); HZJ70,75..PIC,SOT;HZJ73,77,PZJ7#..STD,ZX199308-199908

BLACK,TRIM1#; BLACK,TRIM1#,4#

81850LAMP ASSY, INDICATOR

main81850-60460iHZJ74,76,LJ7#..ATM199208

main81850-60470iHZJ71,74,76..HT199908-200408

main81850-60490iHZJ73,77..ATM199208-199305

main81850-60500iHZJ73,77,PZJ7#199208-199305

LIGHTING

main81850-90K04iLJ7#..ATM199004-199208

main81850-90K05iLJ7#199004-199208

LIGHTING

main81850-90K06iHZJ73,PZJ70199001-199004

LIGHTING

main81850-90K07iHZJ7#..ATM199001-199208

81850BBULB, INDICATOR LAMP

main90981-11018×4iKZJ7#..ATM; KZJ7#..MTM199305-199501

main99132-12034iHZJ71,79..PIC,SOT200108

main99134-12030iHZJ73,77,PZJ7#199001-199305

81850PASHTRAY RECEPTACLE LAMP

main81850-60510iHZJ7#199908-200408

main81850-60520iHZJ70,73,77199501-199908

81850QASHTRAY RECEPTACLE LAMP BULB

main90981-11014iHZJ7#199908

main90981-16020iHZJ70,73,77199501-199908

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-90K00iHZJ7#199908-200408

main81930-90K01iHZJ73,77,PZJ7#199001-199305

81930BBULB, HEATER CONTROL INDICATOR LAMP

main84999-70010iFJ75,HZJ71,74,75,76,79,LJ7#199006

main84999-70011iHZJ70,73,77,PZJ7#199305-199908

main90981-11014iHZJ75,KZJ7#199305-199908

81942SHEET, HEATER CONTROL NAME

main55519-60150iFJ75,HZJ75,79,LJ7#,PZJ7#..LX5,STD199201

main55519-60170iHZJ75199212-199305

main55519-90K08iFJ75,LJ7#,PZJ7#..LX5,STD199108-199201

main55519-90K10iLJ7#,PZJ7#..LX5,STD199108-199204

main86995-90K00iHZJ71,74,76199908

8202WIRING & CLAMP

→ Go to FIG 82-02

82143ABULB

main90981-11018×2iKZJ7#199501-199604

main99132-12034×2iHZJ75199501-199908

main99134-12030×2iHZJ70,73,77199501-199908

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

9356815012

main93568-15012

13 parts on this diagram · 1 diagram in section
