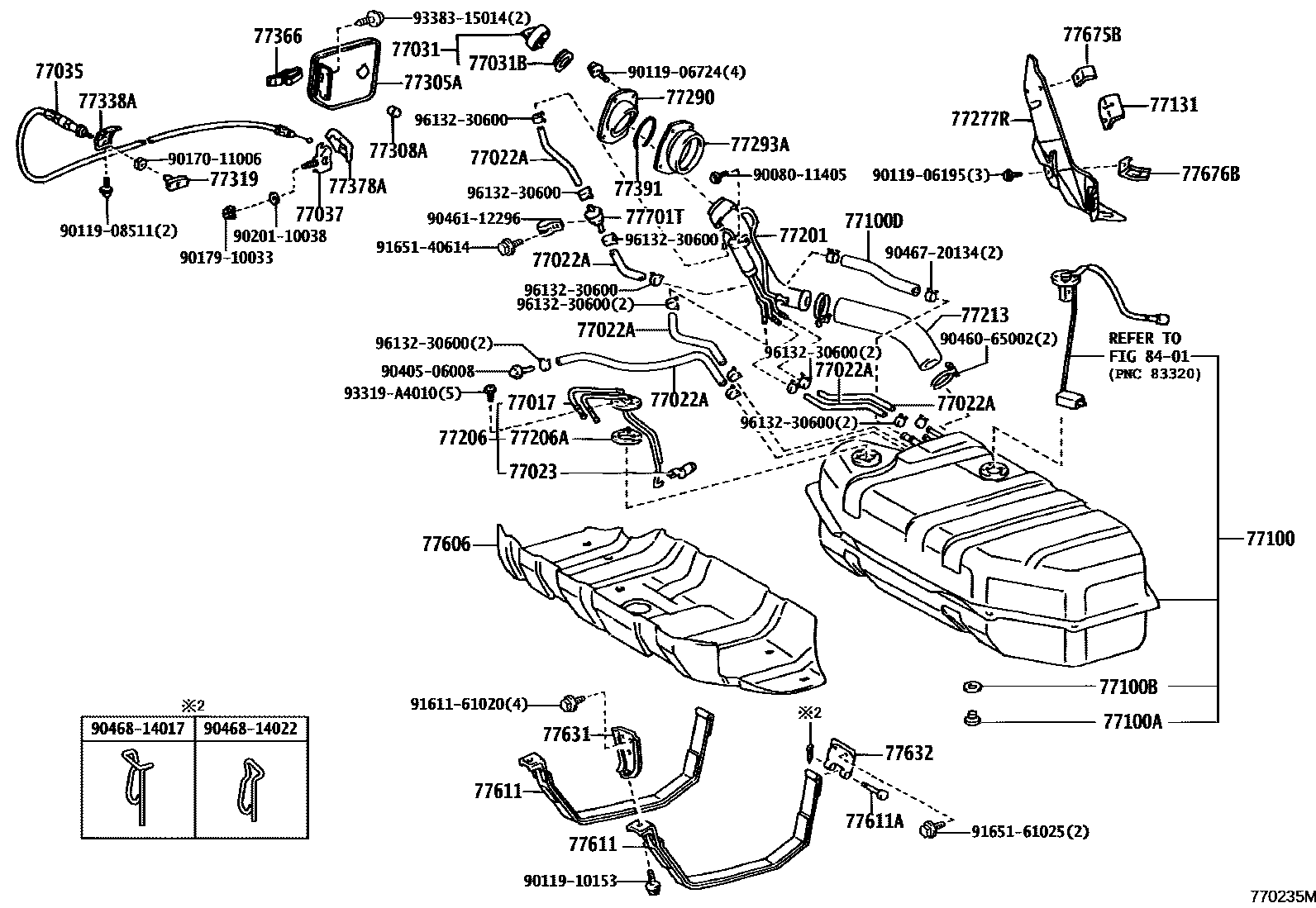

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0004 1����� ��� 0005 1����� ����� 0006 1����� ����� 0008 1����� ����� 0009 1����� �����

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-60400iHZJ71,74,76199908-200408

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06010iHZJ70,73,77,KZJ7#,PZJ7#199202-199908

main95333-06010iHZJ73,PZJ70199001-199201

main95333-06010iHZJ7#,LJ7#,PZJ7#199201-199202

main95333-06020iHZJ7#,LJ7#,PZJ7#199108-199201

sub95337-06020

main95333-06020iHZJ7#,LJ7#,PZJ7#199001-199201

sub95337-06020

main95333-06020iHZJ73,77,LJ7#,PZJ7#199302-199908

sub95337-06020

main95333-06020iFJ75199201-199208

sub95337-06020

main95333-06020iHZJ73,77,LJ7#,PZJ7#199201-199302

sub95337-06020

main95333-06020iFJ75199006-199201

sub95337-06020

main95333-06030iHZJ73,77,LJ7#,PZJ7#199201-199908

sub95338-06030

main95333-06030iHZJ73,77,LJ7#,PZJ7#199001-199908

sub95338-06030

main95333-06030iHZJ7#,LJ7#,PZJ7#199001-199108

sub95338-06030

main95333-06030iFJ75199006-199201

sub95338-06030

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-22040iLJ7#199004-199305

main77023-36010iHZJ70,73,77,KZJ7#,PZJ7#199001-200408

77031CAP ASSY, FUEL TANK

main77310-12150iHZJ71,74,76199803-200408

main77310-35061iHZJ7#,LJ7#,PZJ7#199001-199201

main77310-35110iHZJ70,73,77,KZJ7#,PZJ7#199201-199803

sub77310-12150

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iHZJ7#,LJ7#,PZJ7#199001-199201

main77316-16010iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199201-200408

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-60030iHZJ77..ZX;HZJ76,LJ78,PZJ77..EX,EX5,LX,LX5,SX5,ZX199004-200408

sub77035-60031

main77035-90K00iHZJ71,LJ71,PZJ70..(HT,WG)..(LX,LX5,SX5)199001-200408

main77035-90K02iHZJ74;HZJ73..ZX199001-200408

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-90K00iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..(HT,WG)..(EX,EX5,LX,LX5,SX5,ZX)199001-200408

77100TANK ASSY, FUEL

main77001-37031iFJ75199006-199208

main77001-60350iHZJ79199212-200408

main77001-60580iHZJ71,74,76199908-200408

sub77001-60531

main77100-60280iHZJ7#,LJ7#,PZJ7#199001-199108

sub77001-60914

sub83320-69025

main77100-60905iHZJ7#,LJ7#,PZJ7#199108-199208

sub77001-60912

sub83320-80223

main77100-60917iHZJ73,77,PZJ7#199208-199908

main77100-60919iLJ7#199208-199305

sub77100-60917

77100APLUG(FOR FUEL TANK)

main90105-12018iFJ75199004-200408

main90105-12116iHZJ71,74,76199908-200408

main90341-20004iHZJ70,73,77,KZJ7#,PZJ7#199001-199908

77100BGASKET(FOR FUEL TANK)

main90430-12245iFJ75199004-200408

main90430-20007iHZJ73,77,LJ7#,PZJ7#199001-199908

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22024iHZJ70,73,77,KZJ7#,PZJ7#199001-200408

main95333-08020iHZJ79199006-200408

sub95337-08020

77131BRACKET, FUEL TANK FILLER PIPE SUPPORT

main77131-90K00iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60200iHZJ73,LJ71,PZJ70199001-199201

main77201-60201iHZJ73,LJ71,PZJ70199201-199908

main77201-60360iHZJ77,LJ78,PZJ77199004-199201

main77201-60361iHZJ77,LJ78,PZJ77199201-199908

main77201-60690iHZJ71,74199908-200408

main77201-60700iHZJ76199908-200408

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77240-60190iHZJ73,PZJ70199001-199908

main77240-60220iLJ7#199004-199305

main77240-60320iKZJ7#199305-199604

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

77213HOSE, FUEL TANK SUB INLET

main77213-60040iHZJ73,LJ71,PZJ70199001-199908

main77213-60100iHZJ77,KZJ78,PZJ77199004-199908

main77213-60160iHZJ71,74199908-200408

main77213-60170iHZJ76199908-200408

77277TUBE, FUEL RETURN, NO.1

main77257-60051iHZJ73,PZJ70199001-199908

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-90K01iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-60030iHZJ71,74,76199201-200408

main77290-90K00iHZJ7#,LJ7#,PZJ7#199001-199201

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-90K00iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-90K00iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05018iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

77319KNOB, FUEL TANK CAP

main77319-90K00iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..(HT,WG)..(EX,EX5,LX,LX5,SX5,ZX)199001-200408

77338ABRACKET, FUEL TANK CAP LOCK CONTROL ROD

main77338-90K01iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..(HT,WG)..(EX,EX5,LX,LX5,SX5,ZX)199001-200408

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

77378ACOVER, FUEL FILLER OPENING LID LOCK

main77378-90K00iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..(HT,WG)..(EX,EX5,LX,LX5,SX5,ZX)199001-200408

77391RING, FUEL INLET BOX

main77391-32010iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60030iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

77611BAND, FUEL TANK

main77601-60030iHZJ75199006-200408

main77601-60081iHZJ70,73,KZJ71,PZJ70199001-199908

main77601-60190iHZJ77,LJ78,PZJ77199004-199908

main77601-60240iHZJ71,74199908-200408

main77601-60250iHZJ76199908-200408

77611APIN (FOR FUEL TANK BAND)

main90240-10025iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

77631BRACKET, FUEL TANK, NO.1

main77613-60090iHZJ77..ZX;HZJ76,LJ78,PZJ77199004-200408

main77614-60050iHZJ77,KZJ78,PZJ77199004-200408

main77614-60050iHZJ73..ZX;HZJ71,74,LJ71,PZJ70199001

77632BRACKET, FUEL TANK, NO.2

main77625-60020iHZJ73..ZX;HZJ71,74,LJ71,PZJ70199001-200408

main77625-60030iHZJ77,KZJ78,PZJ77199004-200408

77675BBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1

main77675-90K00iHZJ70,73,77,KZJ7#,PZJ7#199001-200408

77676BBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2

main77676-90K00iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001-200408

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iHZJ73,77..ZX;HZJ71,74,75,76,79,LJ7#,PZJ7#199001-200408

8401

9008011405

main90080-11405

9011906195

main90119-06195

9011906724

main90119-06724

9011908511

main90119-08511

9011910153

main90119-10153

9017011006

main90170-11006

9017910033

main90179-10033

9020110038

main90201-10038

9040506008

main90405-06008

9046065002

main90460-65002

9046112296

main90461-12296

9046720134

main90467-20134

9046814017

main90468-14017

9046814022

main90468-14022

9161161020

main91611-61020

9165140614

main91651-40614

9165161025

main91651-61025

93319A4010

main93319-A4010

9338315014

main93383-15014

9613230600

main96132-30600

56 parts on this diagram · 7 diagrams in section
