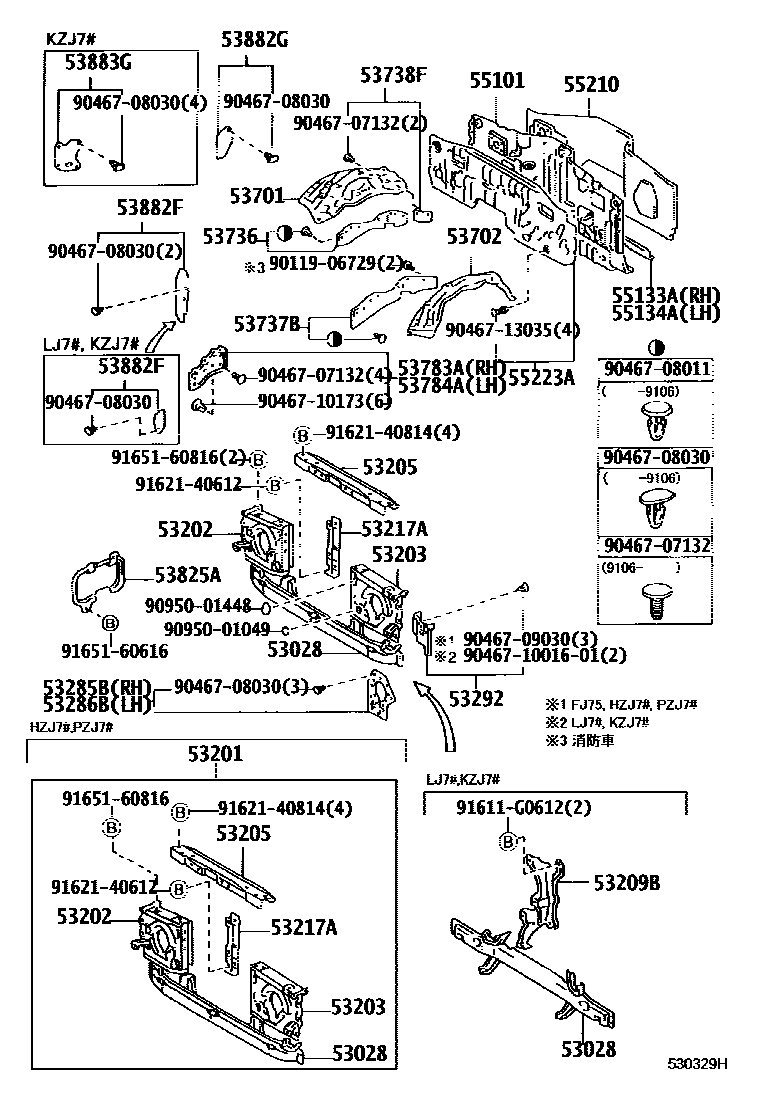

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-60020iLJ7#199004-199305

main53028-60021iKZJ7#199305-199604

main53028-60040iHZJ7#199908-200408

53201SUPPORT SUB-ASSY, RADIATOR

main53210-60130iHZJ7#,PZJ7#199305-199708

main53210-60131iHZJ7#199708-199908

***

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-60040iLJ7#199004-199305

main53202-60041iKZJ7#199305-199604

main53202-60110iFJ75,HZJ7#,PZJ7#199001-199305

main53202-60111iHZJ7#,PZJ7#199305-199908

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-60040iLJ7#199004-199305

main53203-60041iKZJ7#199305-199604

main53203-60050iFJ75199006-199110

main53203-60110iHZJ7#,PZJ7#199001-199305

main53203-60111iHZJ7#199908-200408

main53203-60120iFJ75199110-199208

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-60020iHZJ73,PZJ70199001-199004

main53216-60040iLJ7#199004-199305

main53216-60041iKZJ7#199305-199604

main53216-90K02iFJ75,HZJ7#,PZJ7#199004-199010

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-60020iLJ7#199004-199305

53217ABRACE, HOOD LOCK SUPPORT

main53217-60060iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#199001

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-60020iLJ7#199004-199305

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-60020iKZJ7#199305-199312

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-60020iKZJ7#199305-199604

main53292-90K00iHZJ7#,PZJ7#199305-199908

main53292-90K02iLJ7#199004-199305

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-60230iLJ7#199004-199305

main53701-60280iHZJ70,73,77..HT199409-199501

main53701-60370iFJ75199006-199208

main53701-60440iHZJ70..SOT199401-199501

main53701-60500iHZJ75199212-199305

main53701-60520iKZJ7#199305-199604

main53701-60710iHZJ79199911-200408

main53701-60790iHZJ71,74,76..MTM199908-200408

main53701-60810iHZJ74,76..ATM199908-200408

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-60110iFJ75199006-199208

main53702-60120iLJ7#..EX,EX5,SX5; LJ7#..LX5199004-199305

main53702-60121iKZJ7#..EX,SX; KZJ7#..LX199305-199604

main53702-60130iLJ7#199004-199305

main53702-60131iKZJ7#199305-199604

main53702-60300iHZJ70..SOT199401-199501

main53702-60310iHZJ70..SOT199401-199501

main53702-60430iLJ7#..LX5199004-199305

main53702-60431iKZJ7#..LX199305-199604

main53702-60500iHZJ73..U;PZJ70..LX;PZJ77..LX..1NO; PZJ70..STD199102-199305

main53702-6A250iHZJ71,74;HZJ76..1NO199908-200408

main53702-6A320iHZJ71,74;HZJ76..ZX;HZJ76..4NO199908-200408

main53702-6A340iHZJ79199911-200408

main53702-90L45iHZJ73,PZJ7#..LX,ZX; PZJ77..STD..4NO;HZJ75,PZJ70..STD199102-199305

53736SEAL, FRONT FENDER APRON, RH

main53736-60020iLJ7#199004-199106

main53736-60021iKZJ7#199305-199604

main53736-60040iFJ75,HZJ7#,PZJ7#199106-199305

main53736-60050iHZJ75199305-199908

main53736-60090iHZJ71,74,76199908-200408

main53736-60100iHZJ79199911-200108

main53736-60120iHZJ79200108-200408

main53737-60040iFJ75,HZJ7#,PZJ7#199006-199106

main53737-90K03iHZJ7#,PZJ7#199001-199006

53737BSEAL, FRONT FENDER APRON, LH

main53737-60020iLJ7#199004-199106

main53737-60021iLJ7#199106-199305

main53737-60030iFJ75199006-199106

main53737-60031iFJ75199106-199208

main53737-60040iHZJ7#,PZJ7#199305-199908

main53737-60050iKZJ7#199305-199604

main53737-60080iHZJ7#199908-200408

main53737-90K03iHZJ7#,PZJ7#199001-199106

53738FSEAL, FRONT FENDER APRON

main53738-60020iFJ75199106-199201

main53738-90K03iFJ75199006-199106

53783AINSULATOR, APRON FRONT FENDER, RH

main53807-60080iHZJ7#200108-200408

53784AINSULATOR, APRON FRONT FENDER, LH

main53808-60040iHZJ7#200108-200408

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-60020iHZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#199001

53882FSEAL, FRONT FENDER

main53882-60020iLJ7#199004-199305

main53882-60030iHZJ7#199908-200408

53882GSEAL, FRONT FENDER

main53882-60070iLJ7#199004-199305

53883GSEAL, FRONT FENDER, FRONT

main53883-60020iKZJ7#199305-199604

55101PANEL SUB-ASSY, DASH

main55101-6B070iHZJ70..SOT;PZJ7#..STD199305-199908

main55101-6B090iHZJ7#..ATM199108-199208

main55101-6B110iPZJ7#..LX;HZJ7#..MTM; PZJ7#..STD199001-199305

main55101-6B150iKZJ7#..MTM199305-199604

main55101-6B170iKZJ7#..ATM199305-199604

main55101-6C540iHZJ73,77..ATM199305-199908

main55101-6C550iKZJ7#..MTM199305-199604

main55101-6C560iKZJ7#..ATM199305-199604

main55101-6D580iHZJ74,76..ATM199908-200007

main55101-6D581iHZJ74,76..ATM200108-200408

main55101-6D680iHZJ7#..MTM199908-200108

main55101-6D681iHZJ7#..MTM200108-200408

main55101-90L13iFJ75199006-199208

55133AREINFORCEMENT, DASH TO FLOOR, RH

main55133-60020iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001

55134AREINFORCEMENT, DASH TO FLOOR, LH

main55134-60010iHZJ71,74,76199908-200408

55210INSULATOR ASSY, DASH PANEL

main55210-60030iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#199001-200012

main55210-60110iHZJ7#200012-200408

55223AINSULATOR, DASH PANEL, OUTER

main55223-60050iLJ7#199004-199208

main55223-60060iHZJ7#,PZJ7#199001-199208

main55223-60120iHZJ7#,PZJ7#199208-199305

main55223-60121iHZJ7#199908-200408

main55223-60130iLJ7#199208-199305

main55223-60131iKZJ7#199305-199604

9011906729

main90119-06729

9046707132

main90467-07132

9046708011

main90467-08011

9046708030

main90467-08030

9046709030

main90467-09030

904671001601

main90467-1001601

9046710173

main90467-10173

9046713035

main90467-13035

9095001049

main90950-01049

9095001448

main90950-01448

91611G0612

main91611-G0612

9162140612

main91621-40612

9162140814

main91621-40814

9165160616

main91651-60616

9165160816

main91651-60816

41 parts on this diagram · 2 diagrams in section
