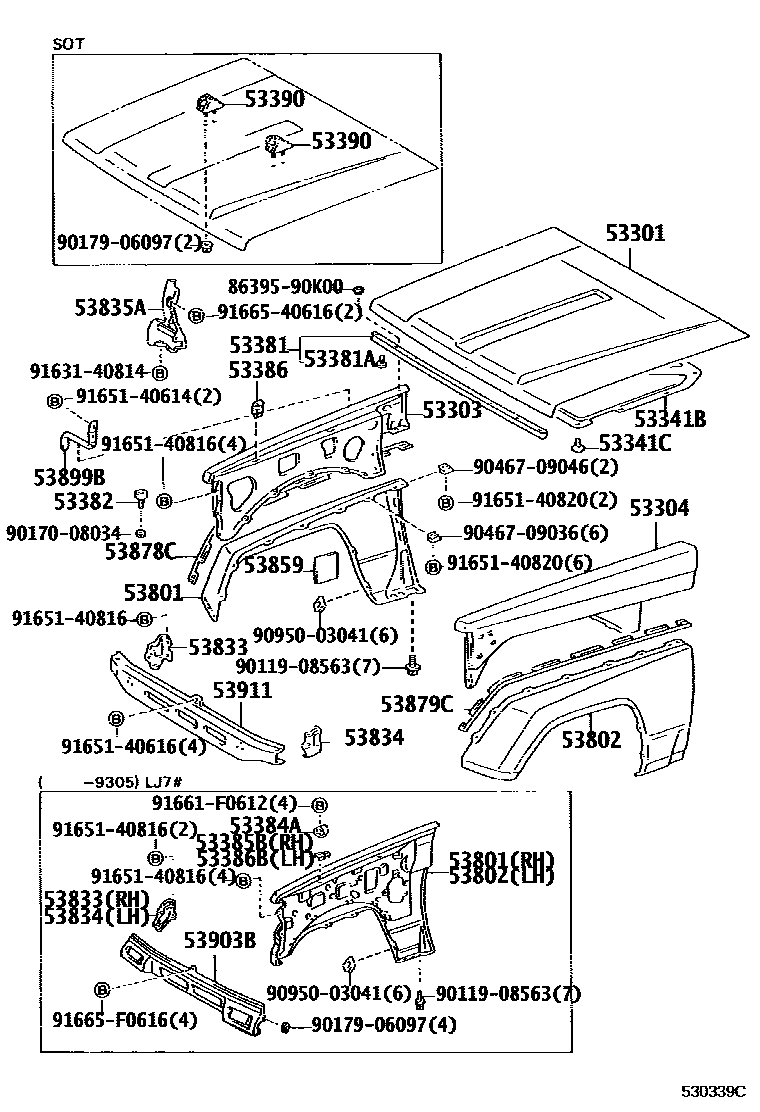

HOOD & FRONT FENDER

0001 1 0003 1 0004 1

53301HOOD SUB-ASSY

main53301-60130iLJ7#199004-199305

main53301-60131iKZJ7#199305-199604

main53301-60150iFJ75,HZJ7#,PZJ7#..HT,PIC199001-199305

main53301-60151iHZJ7#..HT,PIC199908-200108

main53301-60170×2iPZJ70..SOT199001-199305

main53301-60171iHZJ70..SOT199401-199908

main53301-60360iHZJ71..SOT200207-200408

main53301-60380iHZJ7#..HT,PIC200402-200408

53303PANEL SUB-ASSY, HOOD SIDE, RH

main53303-60040iHZJ71,74,76199908-200408

main53303-60050iHZJ71,74,76199908-200408

53304PANEL SUB-ASSY, HOOD SIDE, LH

main53304-60050iHZJ7#,PZJ7#199001-199208

main53304-60070iHZJ7#,PZJ7#199001-199208

main53304-60080iFJ75199006-199208

main53304-60110iHZJ73,77,PZJ7#199208-199305

main53304-60120iHZJ70,73,77,PZJ7#; HZJ75199305-199908

main53304-60160iHZJ71,74,76199908

main53304-60170iHZJ71,74,76199908

53341BINSULATOR, HOOD

main53341-60050iLJ7#199004-199305

main53341-60060iFJ75,HZJ7#,PZJ7#199001-199012

main53341-60080iFJ75199012-199208

main53341-60120iHZJ7#,PZJ7#199208-199305

main53341-60121iHZJ7#199908-200108

main53341-60130iKZJ7#199305-199604

main53341-60230iHZJ7#200108

53341CCLIP(FOR HOOD INSULATOR)

main90467-09014×15iKZJ7#199305-199604

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60020iLJ7#199004-199305

main53381-90K01iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#199001

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×6iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#199001

53382BUMPER, HOOD, FRONT

main53382-60010×2iLJ7#199004-199008

main53382-60011×2iHZJ7#199908-200408

main53382-90K01×2iHZJ7#,PZJ7#199001-199007

53384ABUMPER, FENDER TO HOOD

main53384-60020×4iLJ7#199004-199305

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-20020×2iLJ7#199004-199305

53386BUMPER, HOOD, REAR

main53382-30060×4iHZJ73,PZJ70199001-199004

main53384-60030×3iFJ75199006-199208

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-20020×2iLJ7#199004-199305

53390CRADLE ASSY, WINDSHIELD REST

main53390-90K00×2iHZJ71,PZJ70..SOT199001

53801FENDER SUB-ASSY, FRONT RH

main53801-60330iHZJ77..ZX199305-199501

main53801-60361iKZJ78..SX..3NO199512-199604

main53801-60380iLJ71;LJ78..LX5199004-199305

main53801-60381iKZJ7#..5NO199305-199604

main53801-60390iLJ78..(EX5,SX5)..5NO199004-199305

main53801-60400iLJ78..SX5..3NO199302-199304

main53801-60401iKZJ7#..SX..3NO199305-199604

main53801-60410iLJ78..3NO199108-199305

main53801-60420iLJ71;LJ78..LX5199004-199305

main53801-60421iKZJ7#..5NO199305-199604

main53801-60430iLJ78..(EX5,SX5)..5NO199004-199305

main53801-60510iLJ78..3NO199108-199305

main53801-60520iKZJ7#..SX..3NO199305-199604

main53801-60530iKZJ78..EX199305-199604

main53801-90K04iHZJ73..ZX..4NO;FJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001

main53801-90K13iHZJ74,76..ZX199908-200408

53802FENDER SUB-ASSY, FRONT LH

main53802-60270iHZJ77199004-199305

main53802-60280iLJ71;LJ78..LX5199004-199208

main53802-60290iLJ78..EX5,SX5199004-199208

main53802-60300iLJ78..3NO199205-199207

main53802-60310iLJ78..3NO199108-199208

main53802-60360iLJ71;LJ78..LX5199004-199208

main53802-60370iLJ78..EX5,SX5199004-199208

main53802-60440iLJ78..3NO199108-199208

main53802-60670iLJ71;LJ78..LX5199208-199305

main53802-60671iKZJ7#..5NO199305-199604

main53802-60680iLJ78..SX5..5NO199208-199305

main53802-60690iLJ78..3NO199208-199305

main53802-60700iLJ71;LJ78..LX5199208-199305

main53802-60701iKZJ7#..5NO199305-199604

main53802-60710iLJ78..SX5..5NO199208-199305

main53802-60720iLJ78..3NO199208-199305

main53802-60730iKZJ7#..SX..3NO199305-199604

main53802-60740iKZJ78..EX199305-199604

main53802-60750iKZJ7#..SX..3NO199305-199604

main53802-60760iKZJ78..EX199305-199604

main53802-60770iLJ78..SX5..3NO199302-199305

main53802-90K04iHZJ73..ZX..4NO;FJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001

main53802-90K15iHZJ74,76..ZX199908-200408

53833PANEL, FRONT FENDER SIDE, LOWER

main53833-60020iLJ7#199004-199305

main53833-90K01iHZJ7#,PZJ7#199305-199908

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53834-60020iLJ7#199004-199305

main53834-90K01iHZJ7#199908-200408

53835ABRACE, FRONT FENDER TO APRON, RH

main53803-60020iKZJ7#199305-199604

main53835-60010iHZJ7#199908-200408

53859PROTECTOR, FRONT FENDER

main53859-60010iLJ7#199004-199305

53878CSPACER, FRONT FENDER

main53878-90K00iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#199001

53879CRETAINER, FRONT FENDER LINER

main53879-90K00iHZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#199001

53899BSUPPORT, FRONT FENDER PANEL

main53899-60010iLJ7#199004-199305

53903BPANEL SUB-ASSY, FRONT END

main53903-60020iLJ7#199004-199305

main53903-60021iKZJ7#199305-199604

53911PANEL, FRONT VALANCE

main53911-60010iFJ75,HZJ71,74,75,76,79,PZJ7#..LX,STD199001

main53911-60020iHZJ73,77..ZX;HZJ71,74,76,PZJ7#..LX,ZX199001

8639590K00GROMMET, ANTENNA

main86395-90K00

9011908563

main90119-08563

9017008034

main90170-08034

9017906097

main90179-06097

9046709036

main90467-09036

9046709046

main90467-09046

9095003041

main90950-03041

9163140814

main91631-40814

9165140614

main91651-40614

9165140616

main91651-40616

9165140816

main91651-40816

9165140820

main91651-40820

91661F0612

main91661-F0612

9166540616

main91665-40616

91665F0616

main91665-F0616

39 parts on this diagram · 3 diagrams in section
