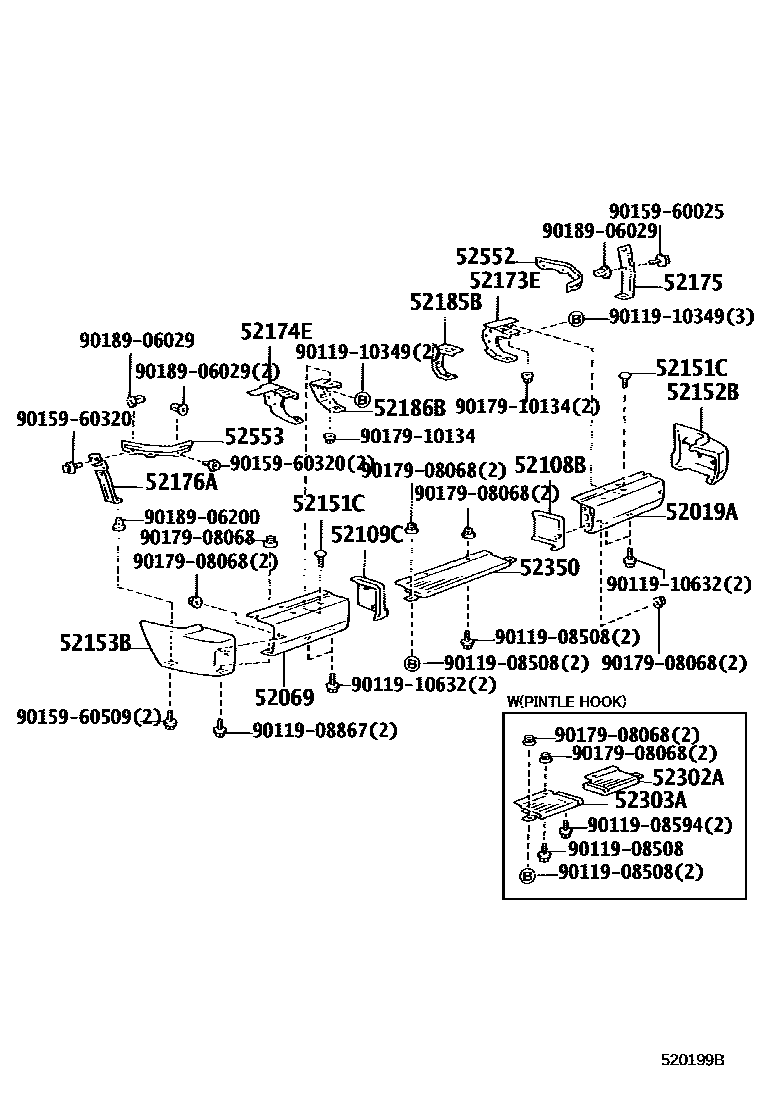

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52019ABAR SUB-ASSY, REAR BUMPER, RH

main52019-60020iPZJ7#..STD199001-199305

main52019-60030iHZJ73,77,LJ7#,PZJ7#..EX,EX5,LX,LX5,SX5,ZX199001-199305

main52019-60031iHZJ71,74199908-200408

main52019-60070iKZJ78..SX..3NO199512-199604

main52019-60080iHZJ77199608-199908

52069BAR SUB-ASSY, REAR BUMPER, LH

main52069-60020iPZJ7#..STD199001-199305

main52069-60030iHZJ73,77,LJ7#,PZJ7#..EX,EX5,LX,LX5,SX5,ZX199001-199305

main52069-60031iHZJ70,73199608-199908

main52069-60070iKZJ78..SX..3NO199512-199604

main52069-60080iHZJ76199908-200408

52108BEXTENSION SUB-ASSY, REAR BUMPER SIDE, RH

main52108-60040iHZJ73..ZX;HZJ71,74,LJ71,PZJ70199001

main52108-60050iHZJ77..ZX;HZJ76,LJ78,PZJ77199004

52109CEXTENSION SUB-ASSY, REAR BUMPER SIDE, LH

main52109-60040iHZJ73..ZX;HZJ71,74,LJ71,PZJ70199001

main52109-60050iHZJ77,KZJ78,PZJ77199305-199908

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-10021×6iHZJ70,73,77,KZJ7#,PZJ7#..EX,LX,SX,ZX199305-199908

main90112-10022×6iPZJ77;PZJ70..STD199001-199305

main90112-10026×6iKZJ78..SX..3NO199512-199604

52152BEXTENSION, REAR BUMPER, RH

main52106-60130iHZJ77,LJ78,PZJ77199004-199303

main52106-60131iHZJ77..ZX;HZJ76,LJ78,PZJ77199303

main52106-60170iHZJ70,73,KZJ71,PZJ70199305-199908

main52106-60180-B0iKZJ78..3NO199305-199501

DK BLUISH GRAY M,26P ,26W

main52106-60180-B1iKZJ78..3NO199305-199501

BLUISH SILVER M,24V

main52106-60180-B3iKZJ78..SX..3NO199512-199604

main52106-60180-B4iHZJ76..ZX199908-200404

GRAY ME.,2FS

main52106-60180-E0iHZJ77..ZX199608-199908

FLAXEN M M,26Z

main52106-60190-B0iKZJ71..3NO199305-199501

DK BLUISH GRAY M,26P ,26W

main52106-60190-B1iKZJ71..3NO199305-199501

BLUISH SILVER M,24V

main52106-60190-E0iKZJ71..3NO199501-199604

FLAXEN M M,25Z ,26Z ,27Z

main52106-60200iKZJ78..SX..3NO199404-199407

main52106-60230iKZJ78..SX..3NO199504-199509

52153BEXTENSION, REAR BUMPER, LH

main52107-60100iHZJ77,LJ78,PZJ77199004-199303

main52107-60101iHZJ76199908-200408

main52107-60140iHZJ71,74199908-200408

main52107-60150-B0iKZJ78..3NO199305-199501

DK BLUISH GRAY M,26P ,26W

main52107-60150-B1iKZJ78..3NO199305-199501

BLUISH SILVER M,24V

main52107-60150-B3iKZJ78..SX..3NO199512-199604

main52107-60150-B4iHZJ76..ZX199908-200404

GRAY ME.,2FS

main52107-60150-E0iHZJ77..ZX199501-199608

FLAXEN M M,27Z

main52107-60160-B0iKZJ71..3NO199305-199501

DK BLUISH GRAY M,26P ,26W

main52107-60160-B1iKZJ71..3NO199305-199501

BLUISH SILVER M,24V

main52107-60160-E0iKZJ71..3NO199501-199604

FLAXEN M M,25Z ,26Z ,27Z

main52107-60170iKZJ78..SX..3NO199404-199407

main52107-60200iKZJ78..SX..3NO199504-199509

52173EBRACKET, REAR BUMPER BAR, RH

main52173-60060iHZJ71,74,76199908-200408

main52173-60080iHZJ73,LJ71,PZJ70199001-199305

52174EBRACKET, REAR BUMPER BAR, LH

main52174-60050iHZJ77..ZX;HZJ76,LJ78,PZJ77199004

main52174-60070iHZJ70,73,KZJ71,PZJ70199305-199908

52175BRACKET, REAR BUMPER ARM MOUNTING

main52175-60020iHZJ73..ZX;HZJ71,74,LJ71,PZJ70199001

main52175-60030iHZJ77..ZX;HZJ76,LJ78,PZJ77199004

52176ABRACKET, REAR BUMPER ARM MOUNTING, LH

main52175-60030iHZJ77..ZX;HZJ76,LJ78,PZJ77199004

main52176-60020iHZJ73..ZX;HZJ71,74,LJ71,PZJ70199001

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60040iHZJ73..ZX;HZJ71,74,LJ71,PZJ70199001

main52185-60050iHZJ77,KZJ78,PZJ77199305-199908

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-60030iHZJ73..ZX;HZJ71,74,LJ71,PZJ70199001

main52186-60040iHZJ77..ZX;HZJ76,LJ78,PZJ77199004

52302ASTEP SUB-ASSY, REAR BUMPER

main52302-60010iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ70199001

52303ASTEP SUB-ASSY, REAR BUMPER, LH

main52303-60010iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ70199001

52350STEP ASSY, REAR BUMPER

main52351-60070iHZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#199001

52552FILLER, REAR BUMPER, RH

main52552-60020iHZJ73..ZX;HZJ71,74,LJ71,PZJ70199001

main52552-60030iHZJ77..ZX;HZJ76,LJ78,PZJ77199004

52553FILLER, REAR BUMPER, LH

main52553-60020iHZJ73..ZX;HZJ71,74,LJ71,PZJ70199001

main52553-60030iHZJ77..ZX;HZJ76,LJ78,PZJ77199004

9011908508

main90119-08508

9011908594

main90119-08594

9011908867

main90119-08867

9011910349

main90119-10349

9011910632

main90119-10632

9015960025

main90159-60025

9015960320

main90159-60320

9015960509

main90159-60509

9017908068

main90179-08068

9017910134

main90179-10134

9018906029

main90189-06029

9018906200

main90189-06200

30 parts on this diagram · 2 diagrams in section
