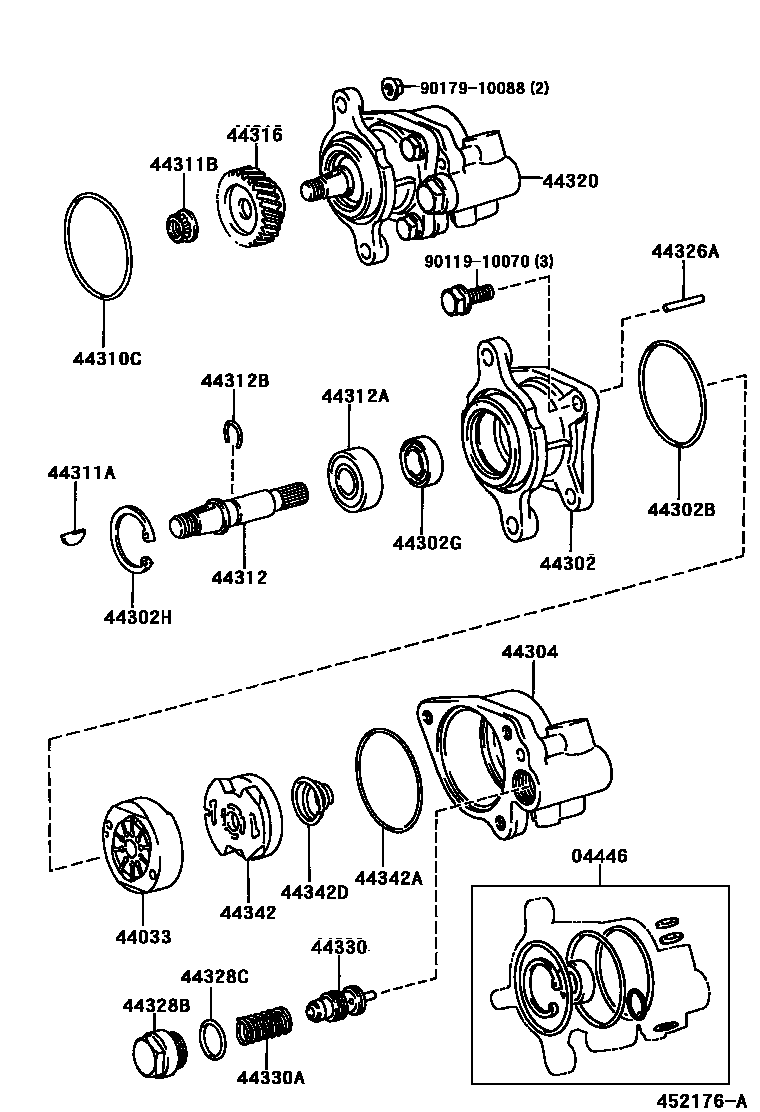

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0003 1 0005 1 0006 1 0007 1

04446GASKET KIT, POWER STEERING PUMP

main04446-60030iLJ7#199004-199305

main04446-60040iHZJ7#,PZJ7#199001-199202

main04446-60070iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199202

main04446-60090iKZJ7#199305-199505

main04446-60091iKZJ7#199505-199604

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36030iHZJ73,77,PZJ7#199001-199305

main44033-36060iHZJ70,73,77199411-199702

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iLJ7#199004-199305

main44302-36200iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199001

main44302-60060iKZJ7#199305-199604

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199001

main90301-60001iLJ7#199004-199305

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21015iHZJ7#,PZJ7#199001-199103

main90029-21018iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199103

main90311-24001iLJ7#199004-199305

main90316-17004iKZJ7#199305-199604

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90520-38016iKZJ7#199305-199604

main90521-44002iLJ7#199004-199305

main96151-04000iHZJ7#199702-199908

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-35041iLJ7#199004-199305

main44304-60240iHZJ70,73,77,PZJ7#199305-199702

44310PUMP ASSY, VANE

main44310-60220iKZJ7#199305-199604

44310CRING, O(FOR VANE PUMP)

main90301-60002iHZJ7#199908-200408

44311PULLEY, VANE PUMP

main44311-35030iLJ7#199004-199305

44311AKEY, VANE PUMP PULLEY

main90029-18002iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199001

main90280-05008iLJ7#199004-199305

44311BNUT(FOR VANE PUMP PULLEY)

main90179-14009iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199001

44312SHAFT, VANE PUMP

main44312-12010iLJ7#199004-199305

main44312-60020iKZJ7#199305-199604

main44312-89101iHZJ7#199702-199908

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199001

main90363-17004iLJ7#199004-199305

main90363-17016iKZJ7#199305-199604

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iHZJ70,73,77,PZJ7#199305-199702

main90520-15001iLJ7#199004-199305

main90520-15005iKZJ7#199305-199604

44316GEAR, VANE PUMP

main44316-60010iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199001

main44316-60030iKZJ7#199305-199604

44320PUMP ASSY, VANE

main44320-60200iLJ7#199004-199101

main44320-60201iLJ7#199101-199305

main44320-60220iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199001

44326RING, CAM(FOR VANE PUMP)

main44325-12010iLJ7#199004-199305

main44325-12020iLJ7#199004-199305

main44325-12030iLJ7#199004-199305

main44325-12040iLJ7#199004-199305

main44325-12050iLJ7#199004-199305

main44325-12270iKZJ7#199305-199604

main44325-12280iKZJ7#199305-199604

main44325-12290iKZJ7#199305-199604

main44325-12300iKZJ7#199305-199604

main44325-12310iKZJ7#199305-199604

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iHZJ7#199908-200408

main90250-04047iKZJ7#199305-199604

main90250-04049iKZJ7#199305-199604

main90250-05008×2iLJ7#199004-199305

44328BEND, VANE PUMP HOUSING

main44328-89101iHZJ70,73,77,PZJ7#199305-199702

44328CRING, O(FOR PUMP HOUSING END)

main96711-19020iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199001

44330VALVE ASSY, FLOW CONTROL

main44330-35131iLJ7#199004-199305

main44330-35141iLJ7#199004-199305

main44330-35151iLJ7#199004-199305

main44330-35161iLJ7#199004-199305

main44330-35171iLJ7#199004-199305

main44330-35181iLJ7#199004-199305

main44330-36140iHZJ7#199702-199908

main44330-36150iHZJ7#199908-200408

main44330-36160iHZJ70,73,77,PZJ7#199305-199702

main44330-60070iKZJ7#199305-199604

main44330-60080iKZJ7#199305-199604

main44330-60090iKZJ7#199305-199604

main44330-60100iKZJ7#199305-199604

main44330-60110iKZJ7#199305-199604

main44330-60120iKZJ7#199305-199604

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iHZJ7#199908-200408

main90501-12103iLJ7#199004-199305

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iLJ7#199004-199305

main44342-60020iKZJ7#199305-199604

main44342-89102iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199001

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iLJ7#199004-199305

main90301-53004iKZJ7#199305-199604

main96711-24060iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199001

44342DSPRING, COMPRESSION(FOR PRESSURE PLATE)

main90029-60003iHZJ73,77..ZX;HZJ71,74,76,79,PZJ7#199001

9011910070

main90119-10070

9017910088

main90179-10088

28 parts on this diagram · 5 diagrams in section
