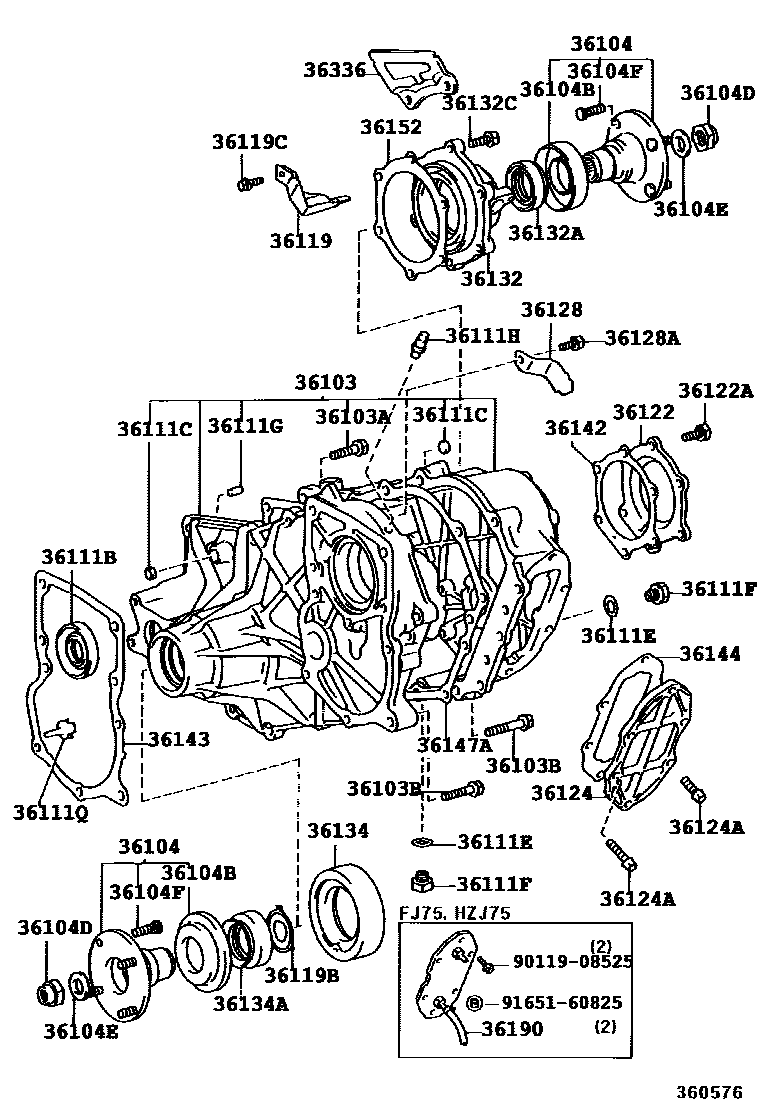

TRANSFER CASE & EXTENSION HOUSING
36103CASE SUB-ASSY, TRANSFER
36103ABOLT (FOR TRANSFER CASE)
36103BBOLT (FOR TRANSFER CASE & ADAPTER SETTING)
36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)
36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)
36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
36111BSEAL, OIL (FOR TRANSFER CASE)
36111CPLUG (FOR TRANSFER CASE)
36111EGASKET (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
FILLER PLUG
DRAIN PLUG
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111QPIPE, OIL RECEIVER
36119RECEIVER, TRANSFER OIL, NO.1
36119BRECEIVER, TRANSFER OIL, NO.2
36119CBOLT (FOR TRANSFER OIL RECEIVER NO.1)
36122COVER, TRANSFER CASE, NO.2
36122ABOLT (FOR TRANSFER CASE)COVER NO.2
36124COVER, TRANSFER POWER TAKE-OFF
36124ABOLT (FOR TRANSFER POWER TAKE-OFF COVER)
36128DEFLECTOR, BREATHER OIL
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
36132RETAINER, OUTPUT SHAFT BEARING, REAR NO.1
36132ASEAL, OIL (FOR OUTPUT SHAFT RETAINER)
36132CBOLT (FOR OUTPUT SHAFT BEARING RETAINER REAR NO.1)
36134RETAINER, OUTPUT SHAFT BEARING, FRONT
36134ASEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
36142GASKET, TRANSFER COVER
36143GASKET, TRANSFER CASE, FRONT
36144GASKET, TRANSFER POWER TAKE-OFF COVER
36147AGASKET, TRANSFER CASE
36152GASKET, OUTPUT SHAFT BEARING RETAINER
36190COOLER ASSY, TRANSFER POWER TAKE-OFF
36336INSULATOR, TRANSFER HEAT
9011908525
main90119-08525
9165160825
main91651-60825
38 parts on this diagram · 2 diagrams in section
