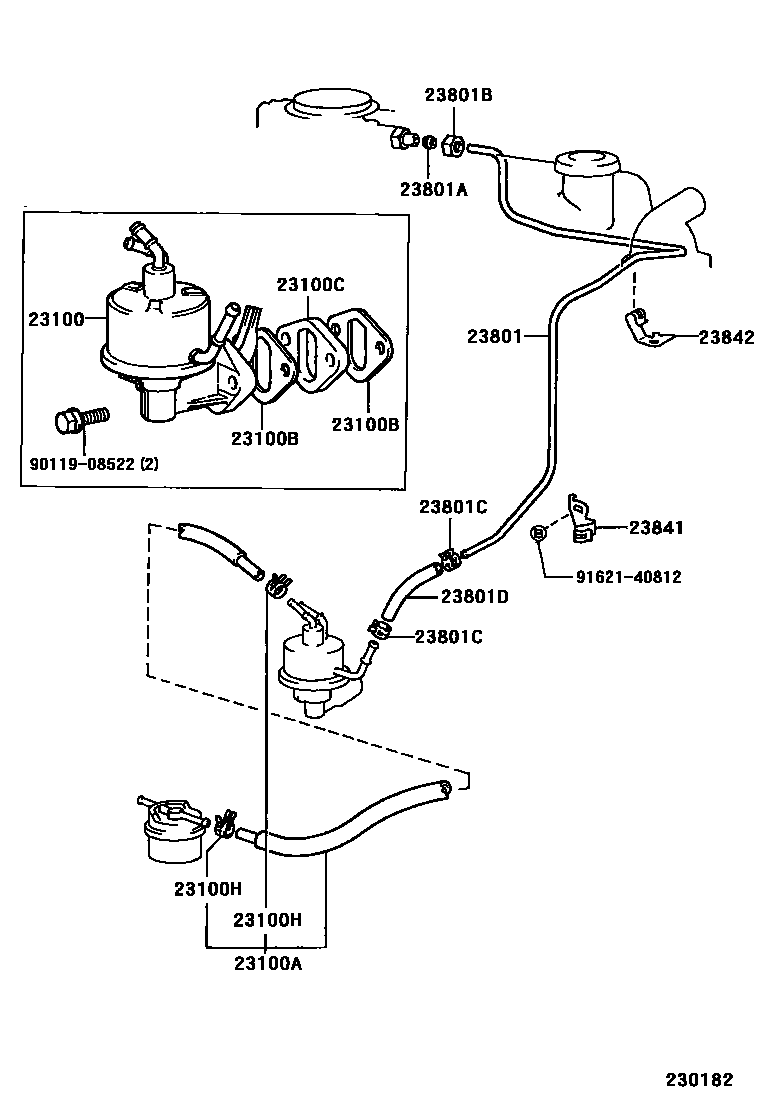

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-61101i3F..FJ75199006-199208

23100AHOSE, FUEL

main77260-60081i3F..FJ75199006-199007

sub77260-60082

main77260-60082i3F..FJ75199007-199208

23100BGASKET, FUEL PUMP

main90923-05019i3F..FJ75199006-199208

23100CINSULATOR, FUEL PUMP

main90923-06009i3F..FJ75199006-199208

23100HCLIP(FOR FUEL HOSE)

main96132-31000i3F..FJ75199006-199208

sub96132-41500

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-61070i3F..FJ75199006-199208

23801AOLIVE(FOR FUEL PIPE)

main96395-71400i3F..FJ75199006-199208

23801BNUT, UNION(FOR FUEL PIPE)

main90402-13041i3F..FJ75199006-199208

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30800i3F..FJ75199006-199208

sub96132-51300

23801DHOSE, FUEL PIPE, NO.1

main95333-08020i3F..FJ75199006-199208

sub95337-08020

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-61030i3F..FJ75199006-199208

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23842-61020i3F..FJ75199006-199208

9011908522

main90119-08522

9162140812

main91621-40812

14 parts on this diagram · 1 diagram in section
