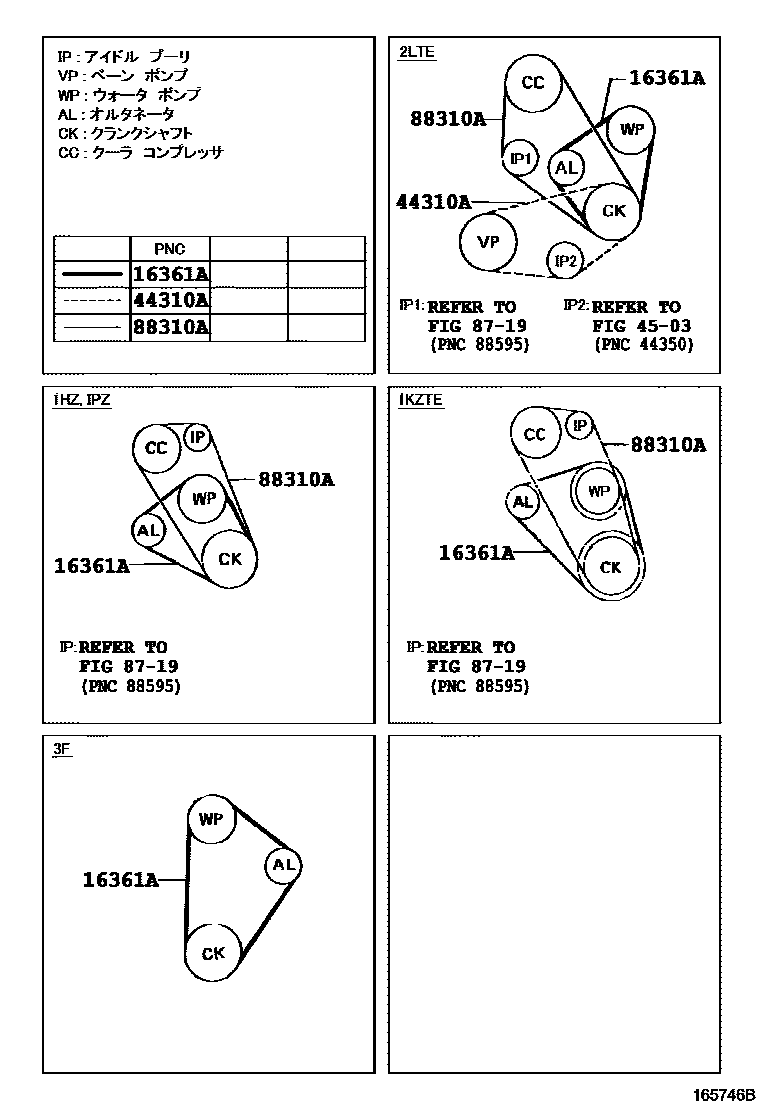

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02141i3F..FJ75199006-199208

main90916-02209i2LTE..LJ7#199004-199305

main90916-02248i1HZ,1PZ..HZJ7#,PZJ7#199001-199007

main90916-02330i1HZ..HZJ73..4NO199305-199401

main90916-02385i1KZTE..KZJ7#199305-199604

main90916-02452i1HZ..HZJ7#199908-200408

44310ABELT, V(FOR VANE PUMP)

main99332-10865iLJ7#199004-199305

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02397iKZJ7#199305-199604

main99332-11205iLJ7#..LX5199201-199305

main99332-11260iHZJ7#199908-200408

main99332-61205iLJ7#199108-199305

5 parts on this diagram · 1 diagram in section
