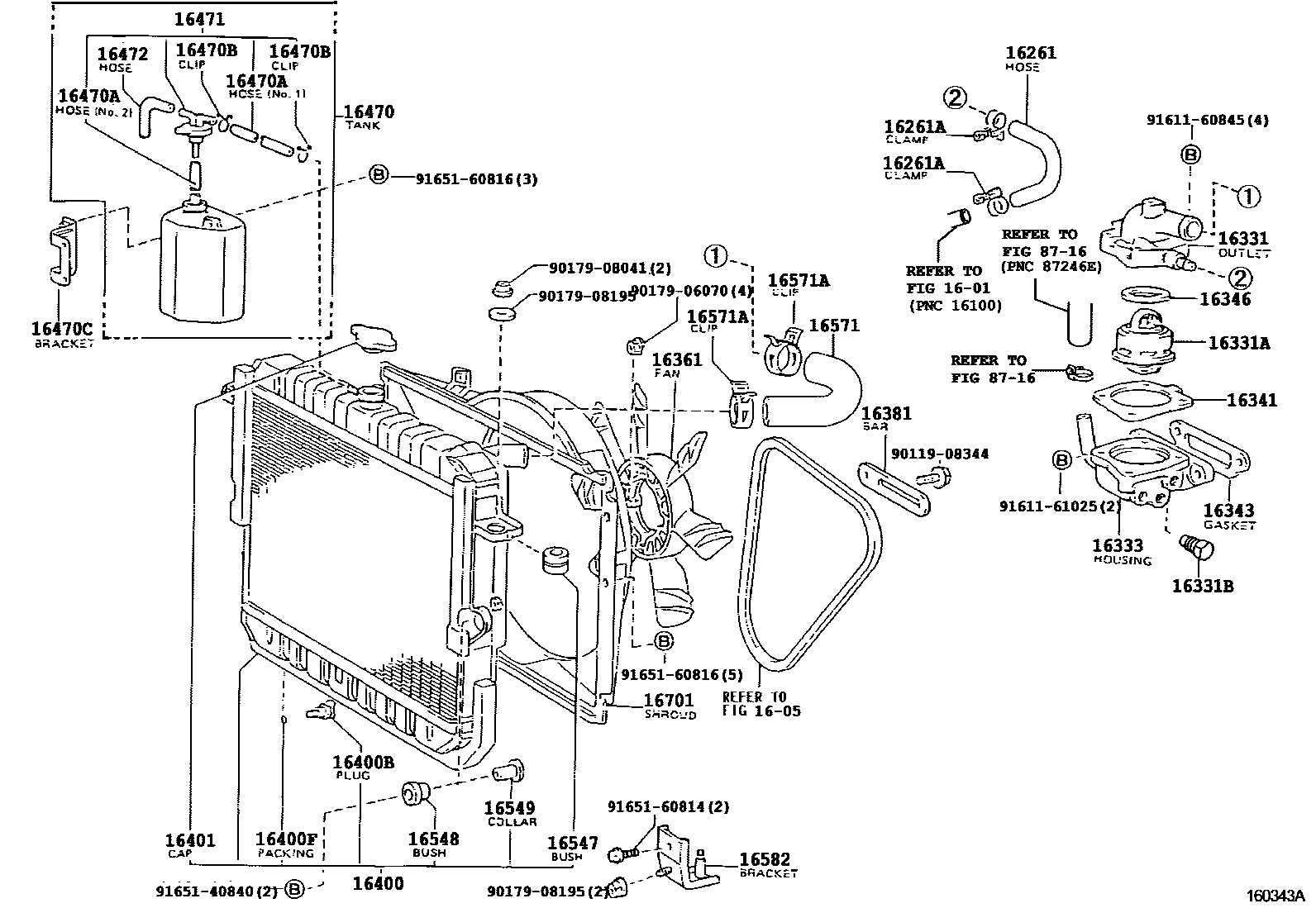

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

1601

1605

16261HOSE, WATER BY-PASS

main16261-17010i1PZ..PZJ7#199108-199908

main16261-17010i1HZ..HZJ7#199001-199108

main16261-17010i1HZ..HZJ7#199212-200408

main16261-54110i2LTE..LJ7#199004-199305

main16261-61020i3F..FJ75199006-199208

main16261-67020i1KZTE..KZJ7#199305-199308

sub16261-67050

sub90929-01345

main16261-67050i1KZTE..KZJ7#199308-199501

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15022i1PZ..PZJ70199001-199108

main90467-15022i1HZ..HZJ70,73..S;1HZ..HZJ70,75..(PIC,SOT)..U199108-199908

main90467-15022i1HZ..HZJ7#199004-200408

main96112-10250i3F..FJ75199006-199208

16331OUTLET, WATER

main16303-61010i3F..FJ75199006-199208

main16331-17010i1HZ..HZJ7#..MTM199001-200408

main16331-17030i1HZ..HZJ73,77..ATM199208-200408

main16331-54100i2LTE..LJ7#199004-199108

sub16331-54101

main16331-54101i2LTE..LJ7#199108-199305

main16331-67020i1KZTE..KZJ7#199305-199604

16331ATHERMOSTAT

main90916-03052i3F..FJ75199006-199208

main90916-03072i2LTE..LJ7#199004-199303

sub90916-03099

main90916-03089i1HZ..HZJ7#199001-200408

main90916-03097i1KZTE..KZJ7#199305-199604

sub90916-03118

main90916-03099i2LTE..LJ7#199303-199305

16331BPLUG(FOR WATER OUTLET)

main90341-16094i3F..FJ75199006-199208

16333HOUSING, WATER OUTLET

main16304-61020i3F..FJ75199006-199208

main16333-54132i2LTE..LJ7#199108-199305

main16333-54170i2LTE..LJ7#199004-199108

sub16333-54171

16341GASKET, WATER OUTLET

main16341-17010i1PZ..PZJ7#199001-200408

main16341-35010i2LTE..LJ7#199004-199305

main16341-61030i3F..FJ75199006-199208

main16341-67020i1KZTE..KZJ7#199305-199604

16343GASKET, WATER OUTLET HOUSING

main16343-54030i2LTE..LJ7#199004-199110

sub16343-54040

main16343-54040i2LTE..LJ7#199110-199305

main16343-61020i3F..FJ75199006-199208

16346GASKET, THERMOSTAT

main16346-66020i1HZ..HZJ7#199001-200408

main16346-67010i1KZTE..KZJ7#199305-199604

sub16346-30010

main90430-43002i3F..FJ75199006-199208

16361FAN

main16361-17010i1PZ..PZJ70199001-199908

main16361-17030i1HZ..HZJ7#199908-200408

main16361-54050i2LTE..LJ7#199004-199305

sub16361-67030

main16361-61050i3F..FJ75199006-199208

main16361-67020i1KZTE..KZJ7#199305-199604

16381BAR, FAN BELT ADJUSTING

main16381-17010i1HZ..HZJ73,77199001-200408

main16381-17020i1HZ..HZJ75199212-200408

main16381-54120i2LTE..LJ7#199004-199305

sub16381-54121

main16381-61020i3F..FJ75199006-199208

main16381-67020i1KZTE..KZJ7#199305-199604

16400RADIATOR ASSY

main16400-17070i1HZ..HZJ70,73,77..MTM199001-199608

sub16400-17080

main16400-17071i1HZ..HZJ70,73,77..MTM199608-199908

main16400-17100i1PZ..PZJ7#199001-199401

main16400-17160i1HZ..HZJ73,77..ATM199001-199608

sub16400-17090

main16400-17161i1HZ..HZJ73,77..ATM199608-199908

main16400-17210i1HZ..HZJ75199212-199608

main16400-17211i1HZ..HZJ75199608-200408

main16400-17300i1HZ..HZJ71,74,76..MTM199908-200408

main16400-17310i1HZ..HZJ74,76..ATM199908-200408

main16400-54840i2LTE..LJ7#..MTM199004-199305

sub16400-54841

main16400-54850i2LTE..LJ7#..ATM199004-199305

sub16400-54851

main16400-61220i3F..FJ75199006-199208

main16400-67020i1KZTE..KZJ7#..MTM199305-199604

main16400-67030i1KZTE..KZJ7#..ATM199305-199604

16400BPLUG, RADIATOR DRAIN COCK

main16417-15210i1KZTE..KZJ7#199305-200408

main16417-24200i2LTE..LJ7#199001-199608

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1HZ..HZJ7#199305-200408

main16418-24200i2LTE..LJ7#199001-199608

16401CAP SUB-ASSY, RADIATOR

main16401-54750i1HZ..HZJ7#199305-200408

main16401-67150i1HZ..HZJ71,74,76199908-200408

main16401-71010i2LTE..LJ7#199001-199604

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16470-17010i1HZ..HZJ7#199001-200408

sub16470-17011

main16470-54220i2LTE..LJ7#199004-199305

main16470-61020i3F..FJ75199006-199208

main16470-67010i1KZTE..KZJ7#199305-199604

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-67010i1KZTE..KZJ7#199305-199604

main90445-12078i2LTE..LJ7#199004-199604

main90445-12078i1PZ..PZJ70199001-199511

main90445-12078i3F..FJ75199006-199208

main90445-12078i2LTE..LJ7#199004-199305

main90445-12078i1HZ..HZJ7#199511-200408

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1HZ..HZJ7#199001-200408

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-61010i3F..FJ75199006-199208

16471CAP SUB-ASSY, RESERVE TANK

main16405-17010i1PZ..PZJ70199001-200408

main16405-54210i2LTE..LJ7#199004-199305

main16405-61010i3F..FJ75199006-199208

sub16405-17010

main16405-67020i1KZTE..KZJ7#199305-199604

16472HOSE, BREATHER

main85338-74040i1KZTE..KZJ7#199001-200408

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-68070i3F..FJ75199001-200408

16548BUSH, RADIATOR SUPPORT, NO.2

main16548-68070i1HZ..HZJ71,74,76199001-200408

main16584-61030i1HZ..HZJ75199811-200408

sub16548-68070

16549COLLAR, RADIATOR SUPPORT, NO.2

main16549-68070i1PZ..PZJ70199001-200408

16571HOSE, RADIATOR, INLET

main16571-17020i1HZ..HZJ7#199001-200408

main16571-17030i1PZ..PZJ70199001-199401

main16571-54300i2LTE..LJ7#199004-199305

main16571-61160i3F..FJ75199006-199208

main16571-67020i1KZTE..KZJ7#199305-199604

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37003i2LTE..LJ7#199004-199305

main90467-41002i1HZ..HZJ75199305-200408

sub90466-41008

main90467-41006i1KZTE..KZJ7#199212-199604

sub90467-41002

main90467-41007i1KZTE..KZJ7#199305-199405

sub90467-41002

main90467-42001i1PZ..PZJ7#199001-199908

sub90467-41002

16582BRACKET, RADIATOR, NO.1

main16582-68010i1HZ..HZJ7#199001-200408

16701SHROUD SUB-ASSY, FAN

main16711-17020i1HZ..HZJ7#199001-199608

sub16711-17090

main16711-17021i1HZ..HZJ7#199608-199908

main16711-17030i1PZ..PZJ7#199001-199401

main16711-17140i1HZ..HZJ7#199908-200408

main16711-54380i2LTE..LJ7#199004-199305

main16711-61280i3F..FJ75199006-199208

main16711-67020i1KZTE..KZJ7#199305-199604

8716

9011908344

main90119-08344

9017906070

main90179-06070

9017908041

main90179-08041

9017908195

main90179-08195

9161160845

main91611-60845

9161161025

main91611-61025

9165140840

main91651-40840

9165160814

main91651-60814

9165160816

main91651-60816

40 parts on this diagram · 11 diagrams in section
