ENGINE OVERHAUL GASKET KIT

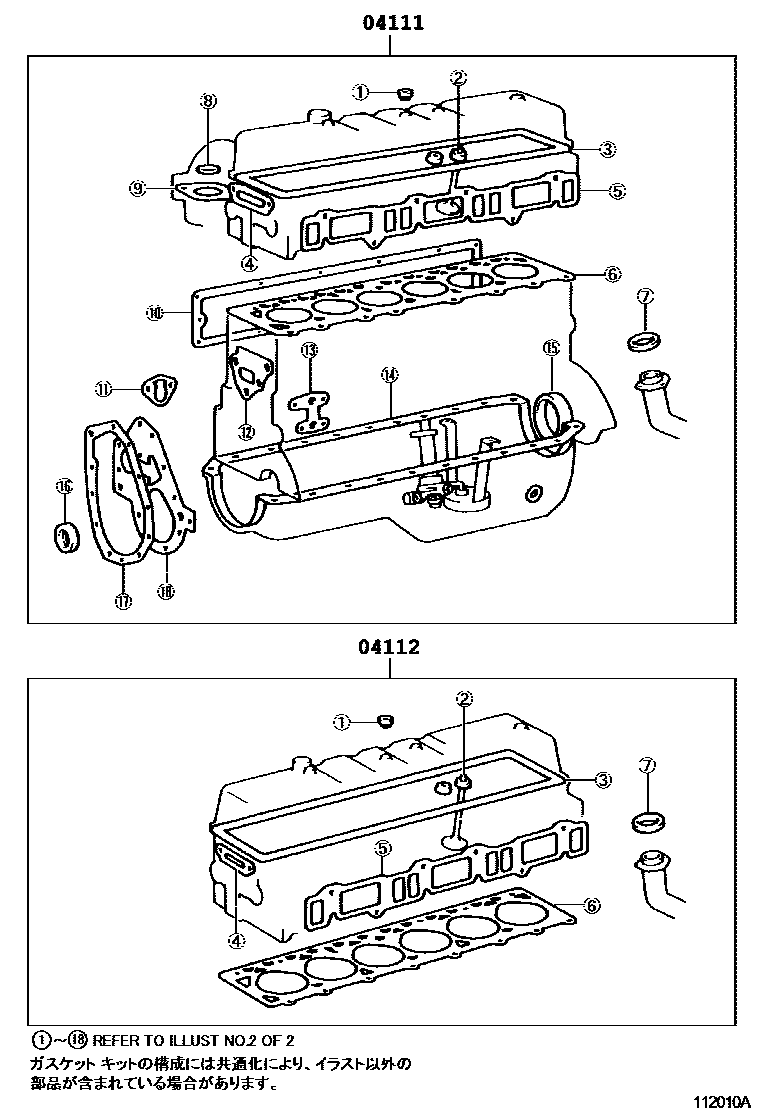

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-17010i199001-199305

main04111-17011i199705-199707

main04111-17012i199707-199908

main04111-17030i199004-199305

main04111-17100i199908-200408

main04111-54102i199004-199108

main04111-54103i199108-199305

main04111-61080i199006-199208

main04111-67020i199305-199604

04112GASKET KIT, ENGINE VALVE GRIND

main04112-17010i199305-199705

main04112-17011i199705-199707

main04112-17012i199707-199908

main04112-17030i199001-199004

main04112-17100i199908-200408

main04112-54100i199004-199108

main04112-54101i199108-199305

main04112-61070i199006-199208

main04112-67020i199305-199604

2 parts on this diagram · 10 diagrams in section
