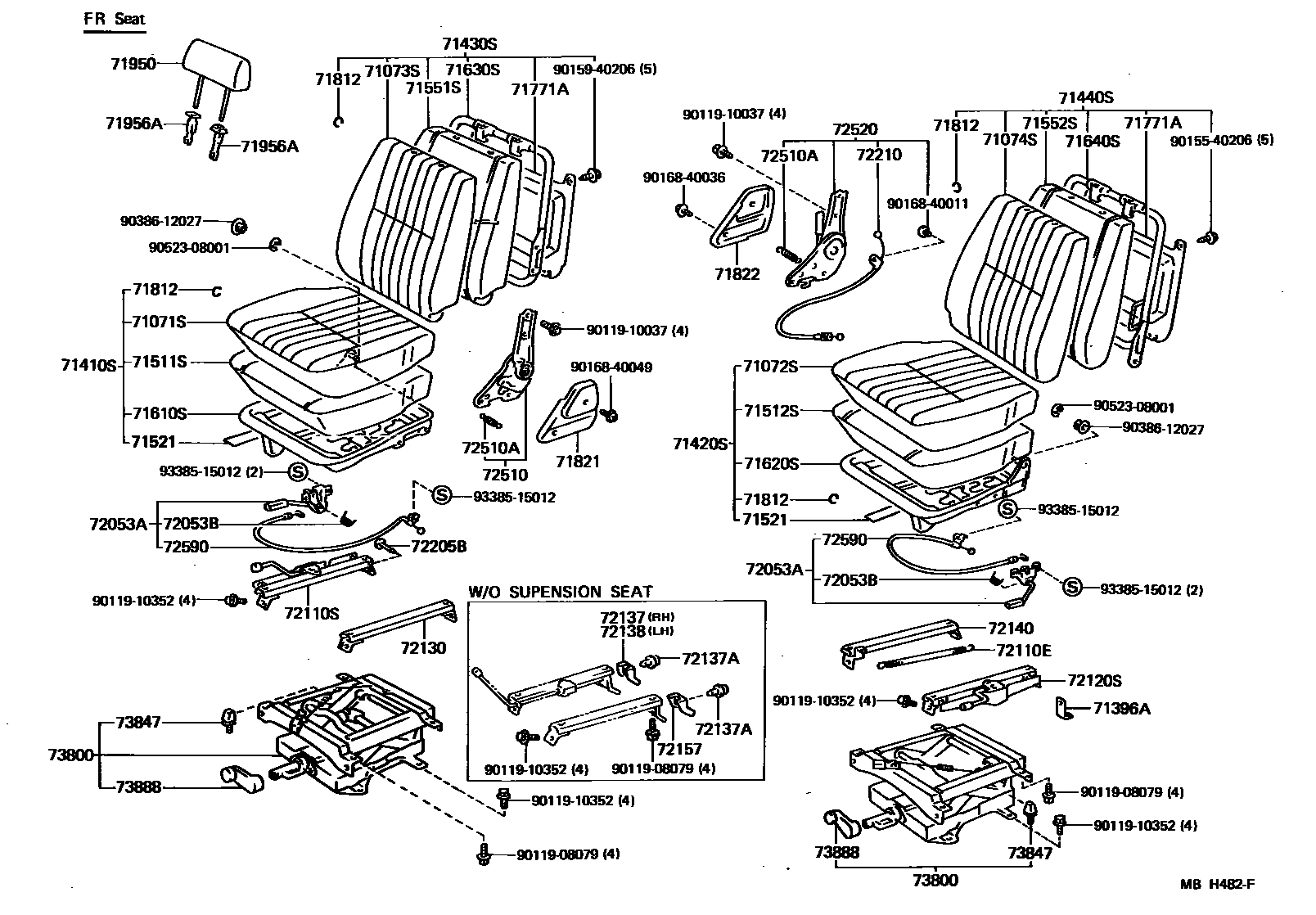

SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
THE 40TH,FB,GRAY,GRAY
THE 40TH,FB,BROWN,BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
TOKUBETUSIYOU LX,GRAY,GRAY
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
THE 40TH,FB,GRAY,GRAY
THE 40TH,FB,BROWN,BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SWPIA BROWN
TOKUBETUSIYOU LX,GRAY,GRAY
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
FB,GRAY,GRAY
FB,BEIGE,BEIGE
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
THE 40TH,FB,GRAY,GRAY
THE 40TH,FB,BROWN,BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
TOKUBETUSIYOU LX,GRAY,GRAY
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
FB,GRAY,GRAY
FB,BEIGE,BEIGE
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
THE 40TH,FB,GRAY,GRAY
THE 40TH,FB,BROWN,BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
TOKUBETSUSIYOU LX,GRAY,GRAY
71396APLATE, REAR SEAT BAND HOOK
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
FB,*SUS,GRAY,GRAY
FB,*SUS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,*SUS,GRAY,GRAY
FB,*SUS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,*SUS,GRAY,GRAY
FB,*SUS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,*SUS,GRAY,GRAY
FB,*SUS,BEIGE,BEIGE
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,*SUS,GRAY,SHADOW GRAY
FB,*SUS,BROWN,SEPIA BROWN
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,*SUS,GRAY,GRAY
FB,*SUS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,*SUS,GRAY,GRAY
FB,*SUS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,*SUS,GRAY,GRAY
FB,*SUS,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,*SUS,GRAY,GRAY
FB,*SUS,BEIGE,BEIGE
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,*SUS,GRAY,SHADOW GRAY
FB,*SUS,BROWN,SEPIA BROWN
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,GRAY,GRAY
FB,BEIGE,BEIGE
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
FB,GRAY,GRAY
FB,BEIGE,BEIGE
VL,GRAY,GRAY
VL,BEIGE,BEIGE
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
FB,GRAY,GRAY
FB,BEIGE,BEIGE
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71521PAD, FRONT SEAT CUSHION SILENCER, A
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
*SUS
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
*SUS
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71771ABOARD, FRONT SEATBACK
71812CLIP (FOR FRONT SEAT CUSHION COVER)
71821SHIELD, FRONT SEAT SIDE, RH
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
71822SHIELD, FRONT SEAT SIDE, LH
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
71950HEADREST ASSY, FRONT SEAT
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
GRAY,GRAY
BROWN,BROWN
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
TOKUBETUSHIYOU LX,GRAY,GRAY
71956SUPPORT, HEADREST
BLACK,BLACK
71956ASUPPORT, FRONT SEAT HEADREST
72053ALEVER SUB-ASSY, RECLINING REMOTE CONTROL
RH,GRAY,SHADOW GRAY
RH,BROWN,SEPIA BROWN
LH,GRAY,SHADOW GRAY
LH,BROWN,SEPIA BROWN
72053BSPRING(FOR RECLINING REMOTE CONTROL LEVER)
RH
LH
72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)
72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
*SUS
*SUS
*SUS
*SUS
72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
*SUS
*SUS
*SUS
*SUS
72130TRACK ASSY, RH SEAT, INNER
*SUS
72137COVER, SEAT TRACK, OUTER RH
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
72137ACLIP (FOR SEAT TRACK COVER)
BROWN,SEPIA BROWN
GRAY,SHADOW GRAY
72138COVER, SEAT TRACK, OUTER LH
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
72140TRACK ASSY, LH SEAT, INNER
*SUS
*SUS
72157COVER, SEAT TRACK BRACKET, INNER
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
72205BPIN SUB-ASSY, SEAT TRACK OPEN LEVER
72210CABLE ASSY, SEAT TRACK CONTROL
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
72510ASPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
BLACK,BLACK
BLACK,BLACK
BLACK
72590CABLE ASSY, SEATBACK CONTROL
RH
LH
73800SUSPENSION ASSY, SEAT, RH
RH
RH
LH
LH
73847CUSHION, SEAT SUSPENSION STOPPER
73888HANDLE, SEAT SUSPENSION CONTROL
9011908079
main90119-08079
9011910037
main90119-10037
9011910352
main90119-10352
9015540206
main90155-40206
9015940206
main90159-40206
9016840011
main90168-40011
9016840036
main90168-40036
9016840049
main90168-40049
9038612027
main90386-12027
9052308001
main90523-08001
9338515012
main93385-15012
56 parts on this diagram · 5 diagrams in section
