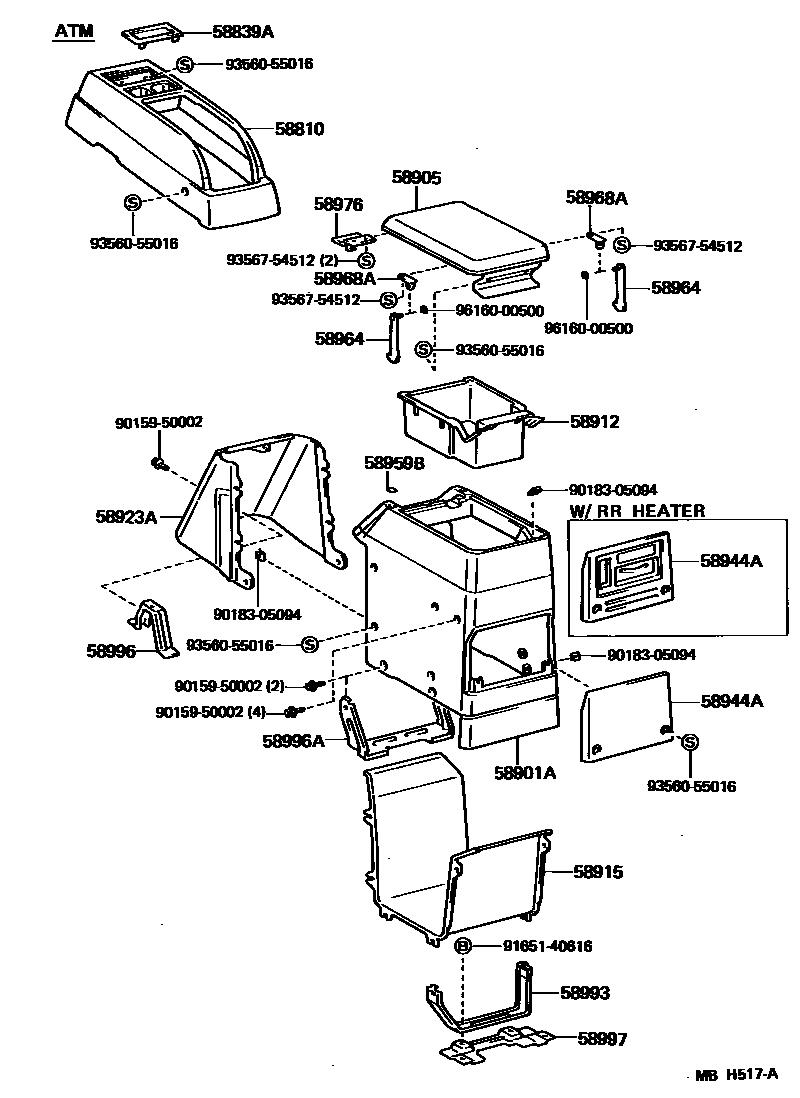

CONSOLE BOX & BRACKET
58810CONSOLE ASSY
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
58839ACOVER, CONSOLE BOX HOLE
58901ABOX SUB-ASSY, CONSOLE, REAR
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
58912BOX, REAR CONSOLE, NO.2
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
58915PANEL, BOX BOTTOM
58923APANEL, CONSOLE REAR END
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
58944ACOVER, CONSOLE, REAR
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
W/RR HEATER,GRAY,SHADOW GRAY
W/RR HEATER,BROWN,SEPIA BROWN
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
LH
RH
58968ABRACKET, CONSOLE DOOR STOPPER
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58993BRACKET, CONSOLE BOX MOUNTING, REAR
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
9015950002
main90159-50002
9018305094
main90183-05094
9165140616
main91651-40616
9356055016
main93560-55016
9356754512
main93567-54512
9616000500
main96160-00500
22 parts on this diagram · 1 diagram in section
