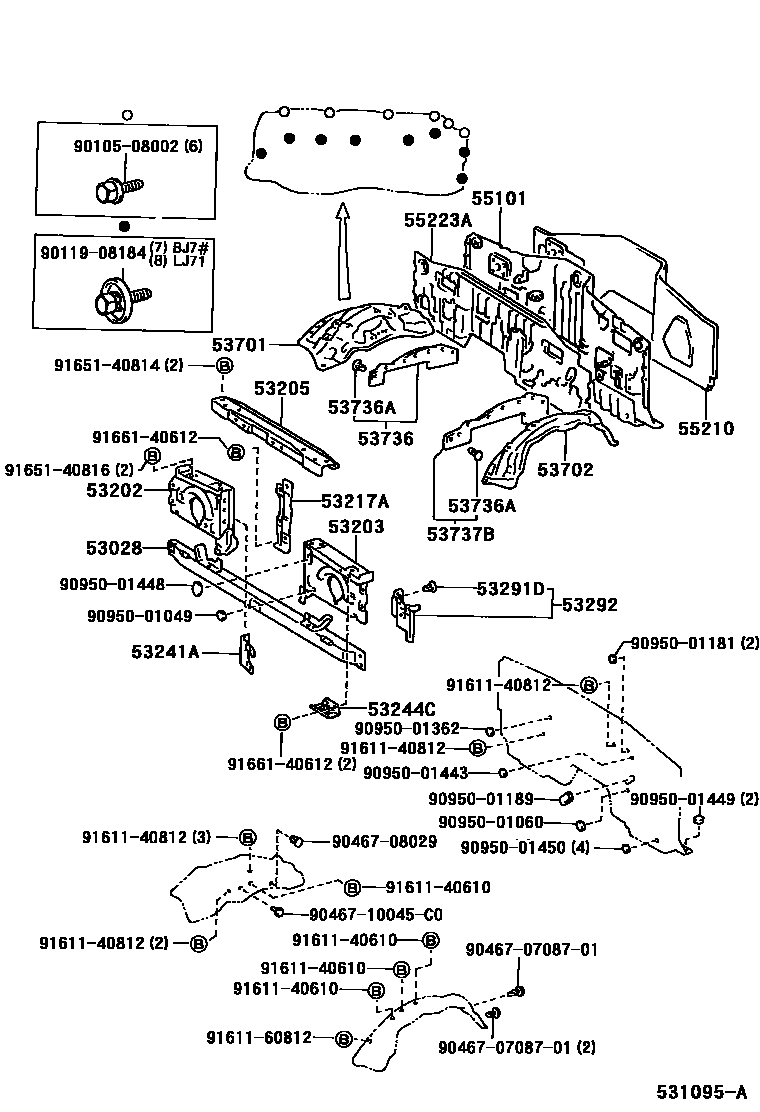

FRONT FENDER APRON & DASH PANEL

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-90K01iLJ71198510-199001

main53028-90K03iBJ7#198411-199001

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-90K01iBJ7#198411-198708

main53202-90K03iLJ71198510-199001

main53202-90K05iBJ7#198708-199001

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-90K01iBJ7#198411-198708

main53203-90K05iLJ71198510-198708

main53203-90K07iBJ7#198708-199001

main53203-90K09iLJ71198708-199001

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-90K02iBJ7#198411-199001

main53216-90K03iLJ71198510-199001

53217ABRACE, HOOD LOCK SUPPORT

main53217-90K02iBJ7#198411-199001

main53217-90K03iLJ71198510-199001

53241AGUIDE, SIDE WIND, RH

main53241-90K00iBJ7#198411-198708

main53241-90K01iLJ71198510-198708

main53241-90K02iBJ7#198708-199001

main53241-90K03iLJ71198708-199001

53244CPLATE, SEAL SET

main53244-90K00iLJ71198510-199001

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-09030×3iBJ7#,LJ71198411-198708

main90467-10016×2iLJ71198708-199001

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-90K00iBJ7#198411-199001

main53292-90K01iLJ71198510-198708

main53292-90K02iLJ71198708-199001

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-90K17iBJ7#198411-198510

main53701-90K38iLJ71198510-199001

main53701-90K57iBJ7#198510-199001

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-90K07iBJ7#198411-198510

W/*EW

main53702-90K75iBJ7#198411-198510

main53702-90K86iLJ71..LX5198510-199001

main53702-90K94iBJ7#198510-199001

W/*EW

main53702-90L45iBJ7#198510-199001

main53702-90L46iLJ71198510-199001

W/*HC

53736SEAL, FRONT FENDER APRON, RH

main53737-60040iBJ7#198411-198606

main53737-90K02iLJ71198510-198606

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-08011×17iBJ7#198411-198510

main90467-08030×15iBJ7#; LJ71198510-199001

53737BSEAL, FRONT FENDER APRON, LH

main53737-90K00iLJ71198510-198606

main53737-90K01iBJ7#198411-198606

main53737-90K02iLJ71198606-199001

main53737-90K03iBJ7#198606-199001

55101PANEL SUB-ASSY, DASH

main55101-90441iBJ70,73198510-199001

W/CLUTCH BOOSTER

main55101-90442iBJ71,74..MTM198510-199001

main55101-90443iBJ71,74..MTM198510-199001

W/CLUTCH BOOSTER

main55101-90444iBJ74..ATM198510-199001

main55101-90611iLJ71198510-199001

main55101-90K45iBJ7#198411-198510

W/CLUTCH BOOSTER

main55101-90K46iBJ7#198411-198510

W/O CLUTCH BOOSTER

main55101-90L25iBJ70,73198510-199001

W/O CLUTCH BOOSTER

55210INSULATOR ASSY, DASH PANEL

main55210-90K00iBJ7#198411-198510

main55210-90K02iBJ7#,LJ71198510-199001

55223AINSULATOR, DASH PANEL, OUTER

main55223-90K00iBJ71,74198510-199001

9010508002

main90105-08002

9011908184

main90119-08184

904670708701

main90467-0708701

9046708029

main90467-08029

9046710045C0

main90467-10045C0

9095001049

main90950-01049

9095001060

main90950-01060

9095001181

main90950-01181

9095001189

main90950-01189

9095001362

main90950-01362

9095001443

main90950-01443

9095001448

main90950-01448

9095001449

main90950-01449

9095001450

main90950-01450

9161140610

main91611-40610

9161140812

main91611-40812

9161160812

main91611-60812

9165140814

main91651-40814

9165140816

main91651-40816

9166140612

main91661-40612

37 parts on this diagram · 1 diagram in section
