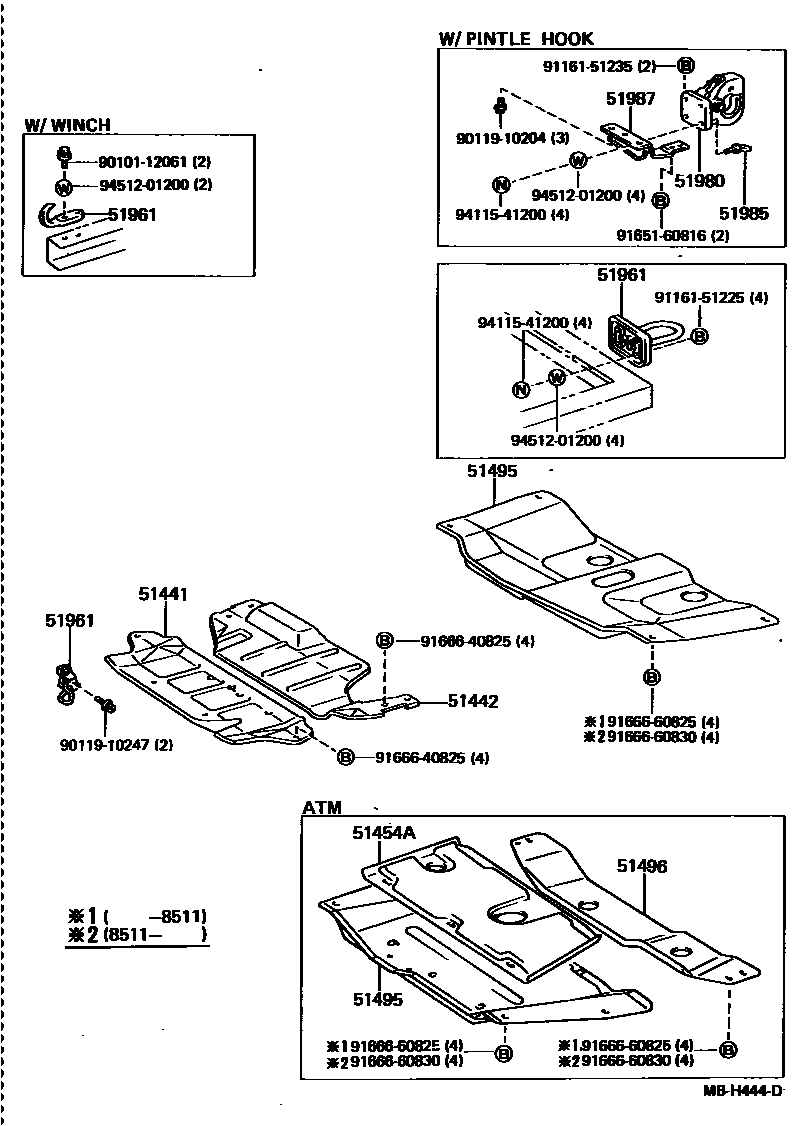

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51441COVER, ENGINE UNDER, NO.1

main51405-60030iLJ71198510-199001

main51405-60050iBJ7#198411-199001

51442COVER, ENGINE UNDER, NO.2

main51406-60010iLJ71198510-199001

main51442-60030iBJ7#198411-198510

main51442-60031iBJ7#198510-199001

51454ASILENCER, ENGINE REAR COVER

main51454-60120iBJ74..ATM198510-199001

51495COVER, TRANSMISSION UNDER

main51495-60130iBJ7#..MTM198411-199001

main51495-60190iBJ74..ATM198510-199001

51496COVER, TRANSMISSION UNDER, NO.2

main51496-60030iLJ71198510-198512

main51496-60080iBJ74..ATM198510-199001

main51496-60120iLJ71198512-199001

51961HOOK, NO.1

main51961-60010iBJ7#198708-199001

FR,W/WINCH

main51961-60050iBJ7#198411-199001

FR

main51961-60080iBJ7#,LJ71198411-199001

RR

main51961-60090iLJ71198510-199001

FR

51980HOOK ASSY, PINTLE

main51980-60010iBJ7#,LJ71198411-199001

51985HOOK, EYELET PINTLE

main51985-60011×2iBJ7#,LJ71198411-199001

51987BRACKET, PINTLE HOOK

main51987-60020iBJ7#,LJ71198411-199001

9010112061

main90101-12061

9011910204

main90119-10204

9011910247

main90119-10247

9116151225

main91161-51225

9116151235

main91161-51235

9165160816

main91651-60816

9166640825

main91666-40825

9166660825

main91666-60825

9166660830

main91666-60830

9411541200

main94115-41200

9451201200

main94512-01200

20 parts on this diagram · 2 diagrams in section
