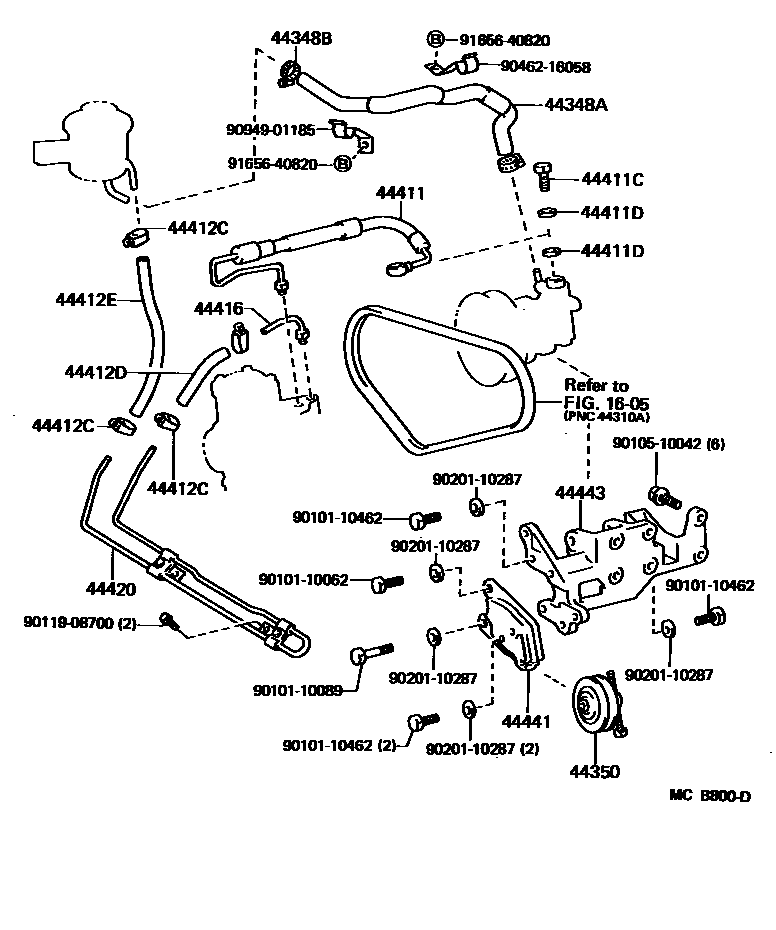

POWER STEERING TUBE

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60030iBJ70,73198411-199001

main44348-60060iLJ71198510-199001

main44348-60080iBJ71,74198510-199001

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×2iBJ7#,LJ71198411-199001

44350PULLEY ASSY, POWER STEERING IDLE

main44350-35010iLJ71198510-199001

main44350-60010iBJ7#198411-199001

44411HOSE, PRESSURE FEED

main44411-60220iBJ7#198411-198510

main44411-60221iBJ7#198510-198808

main44411-60251iLJ71198510-199001

main44411-60320iBJ7#198903-199001

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iLJ71198510-199001

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16242×2iLJ71198510-199001

44412CCLAMP(FOR RETURN HOSE)

main90460-01001×4iBJ7#,LJ71198411-199001

44412DHOSE, RETURN, NO.1

main44412-60030iBJ70,73198411-199001

main44412-60050iLJ71198510-199001

main44412-60100iBJ71,74198510-199001

44412EHOSE, RETURN, NO.2

main44412-60060iLJ71198510-199001

main44412-60090iBJ7#198411-199001

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60061iLJ71198706-199001

main44416-60090iBJ7#198411-199001

main44416-60130iLJ71198510-198706

44420COOLER ASSY, OIL

main44420-60110iBJ7#198411-199001

main44420-60140iLJ71198510-198706

main44420-60141iLJ71198706-199001

44441BRACKET, PUMP, FRONT

main44441-35011iLJ71198510-199001

44443BRACKET, PUMP

main44443-35011iLJ71198510-199001

main44443-60060iBJ7#198411-199001

9010110062

main90101-10062

9010110089

main90101-10089

9010110462

main90101-10462

9010510042

main90105-10042

9011908700

main90119-08700

9020110287

main90201-10287

9046216058

main90462-16058

9094901185

main90949-01185

9165640820

main91656-40820

23 parts on this diagram · 2 diagrams in section
