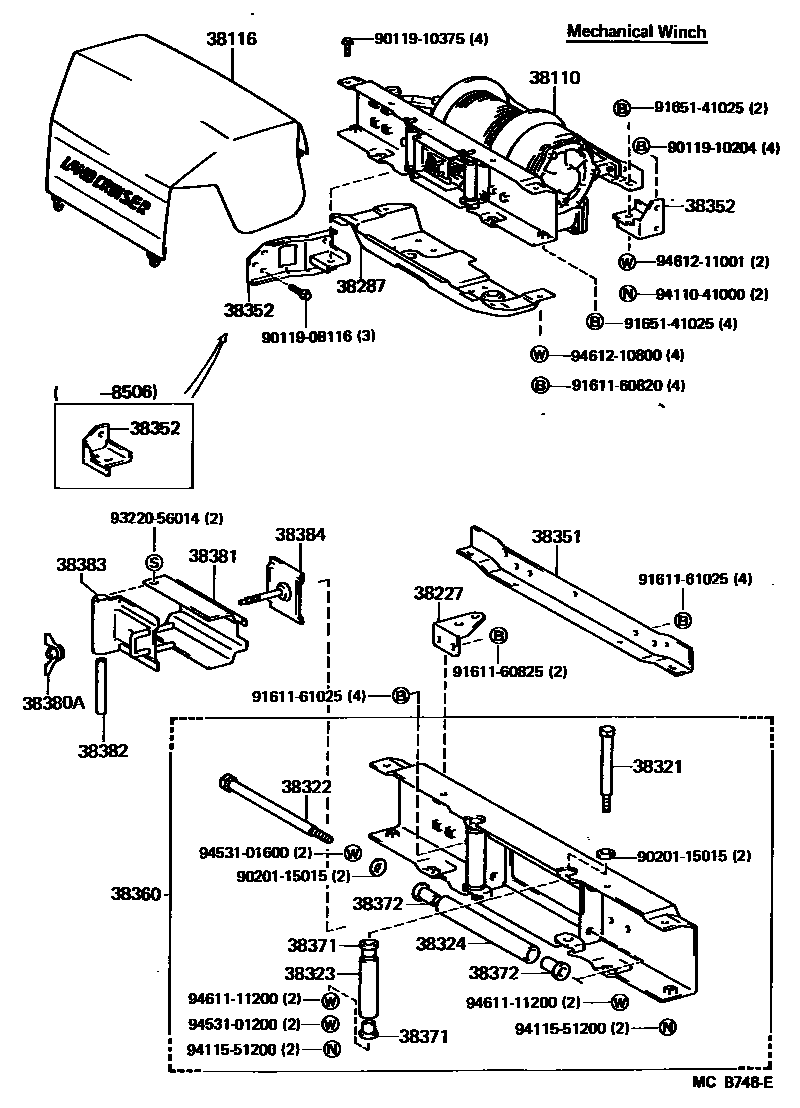

WINCH
38110WINCH ASSY
MECHANICAL
ELECTRIC
ELECTRIC
38116COVER, WINCH
ELECTRIC
MECHANICAL
38227PLATE, WINCH CLUTCH LEVER SHIFT LOCK
38321SHAFT, WINCH ROLLER
38322SHAFT, WINCH ROLLER, NO.2
38323ROLLER, WINCH WIRE GUIDE, NO.1
38324ROLLER, WINCH WIRE GUIDE, NO.2
38352SUPPORT, WINCH BASE
RH
RH
LH
38360BRACKET ASSY, WINCH ROLLER
MECHANICAL
ELECTRIC
38371BUSH, WINCH ROLLER, NO.1
38372BUSH, WINCH ROLLER, NO.2
38380ANUT, WING (FOR WINCH HOOK HOLDER)
38381BRACKET, WINCH HOOK HOLDER
38382SHAFT, WINCH HOOK HOLDER
38383SUPPORT, WINCH HOOK HOLDER BRACKET, NO.1
38384SUPPORT, WINCH HOOK HOLDER BRACKET, NO.2
9011908116
main90119-08116
9011910204
main90119-10204
9011910375
main90119-10375
9020115015
main90201-15015
9161160820
main91611-60820
9161160825
main91611-60825
9161161025
main91611-61025
9165141025
main91651-41025
9322056014
main93220-56014
9411041000
main94110-41000
9411551200
main94115-51200
9453101200
main94531-01200
9453101600
main94531-01600
9461111200
main94611-11200
9461210800
main94612-10800
9461211001
main94612-11001
34 parts on this diagram · 6 diagrams in section
