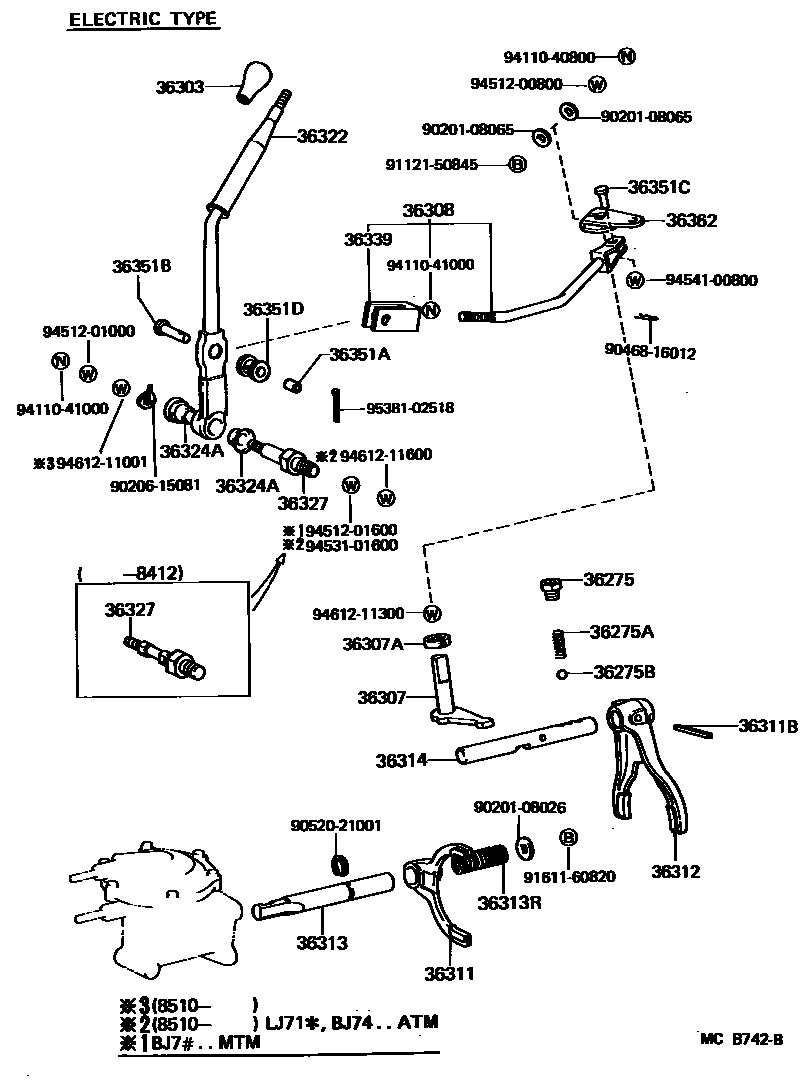

TRANSFER LEVER & SHIFT ROD
36275PLUG, SHIFT DETENT BALL SPRING
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
36275BBALL, SHIFT DETENT
36303KNOB SUB-ASSY, SHIFT LEVER
36307LEVER SUB-ASSY, HIGH & LOW SHIFT INNER
36307ASEAL, OIL (FOR HIGH & LOW SHIFT INNER LEVER)
36308ROD SUB-ASSY, HIGH & LOW SHIFT
36311FORK, TRANSFER GEAR SHIFT, NO.1
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
36312FORK, TRANSFER GEAR SHIFT, NO.2
36313SHAFT, TRANSFER FRONT DRIVE SHIFT
36313RSPRING, COMPRESSION (FOR TRANSFER FRONT DRIVE SHIFT SHAFT)
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36322LEVER, TRANSFER HIGH & LOW SHIFT
36324ABUSH, TRANSFER SHIFT LEVER
36327SHAFT, TRANSFER SHIFT LEVER
36339CLEVIS, TRANSFER SHIFT ROD
36351ASPACER (FOR HIGH & LOW SHIFT ROD)
36351BPIN (FOR HIGH & LOW SHIFT ROD)
L=33.5
L=31.5
36351CPIN (FOR HIGH & LOW SHIFT ROD)
36351DGROMMET (FOR HIGH & LOW SHIFT ROD)
36362LEVER, TRANSFER HIGH AND LOW SHIFT OUTER
9020108026
main90201-08026
9020108065
main90201-08065
9020615081
main90206-15081
9046816012
main90468-16012
9052021001
main90520-21001
9112150845
main91121-50845
9161160820
main91611-60820
9411040800
main94110-40800
9411041000
main94110-41000
9451200800
main94512-00800
9451201000
main94512-01000
9451201600
main94512-01600
9453101600
main94531-01600
9454100800
main94541-00800
9461211001
main94612-11001
9461211300
main94612-11300
9461211600
main94612-11600
9538102518
main95381-02518
40 parts on this diagram · 1 diagram in section
