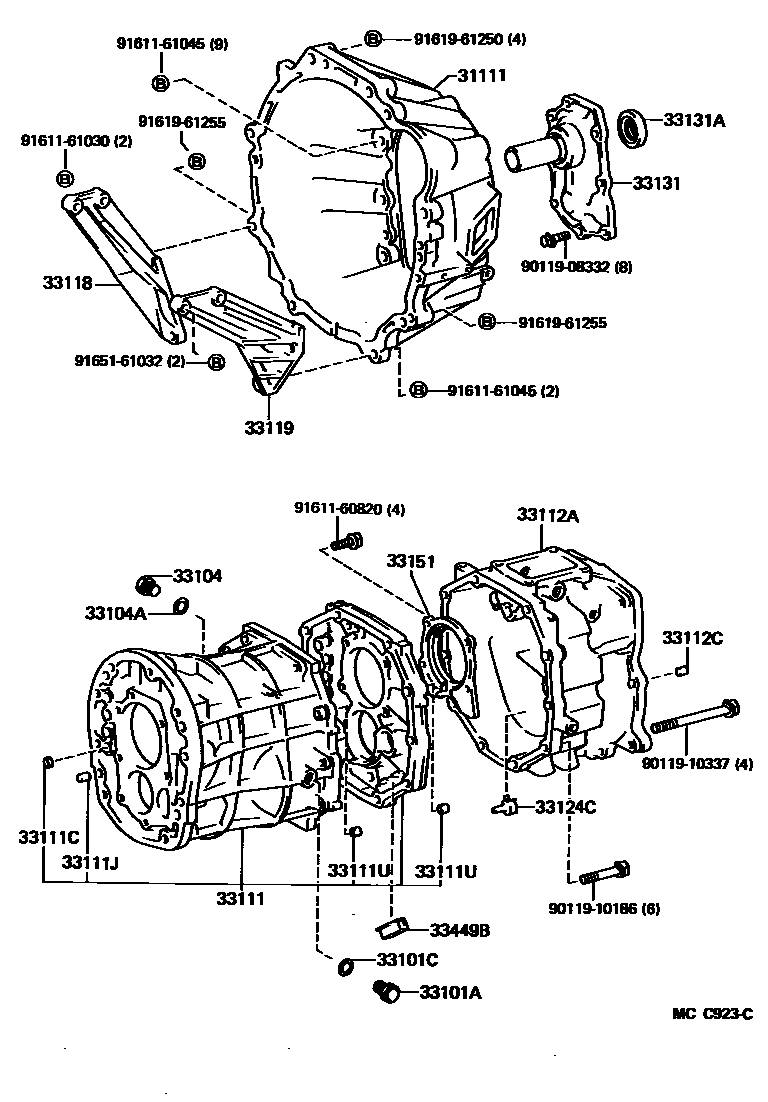

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31111HOUSING, CLUTCH

main31111-25030iLJ71198510-199001

main31111-60130iBJ7#198411-198510

main31111-60140iBJ7#198411-198510

W/TACHOMETER

main31111-60180iBJ70,73..STD198510-199001

main31111-60190iBJ7#..MTM..LX198510-199001

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iBJ7#,LJ71..MTM198411-199001

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iBJ7#,LJ71..MTM198411-199001

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLJ71198510-199001

main90341-18057iBJ7#..MTM198411-199001

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iBJ7#,LJ71..MTM198411-199001

33111CASE, MANUAL TRANSMISSION

main33101-35030iLJ71198510-199001

main33111-60070iBJ7#198411-198510

main33111-60080iBJ7#..MTM198510-199001

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004×4iLJ71198510-199001

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10214iBJ7#..MTM198411-199001

main90250-12002×2iLJ71198510-199001

main90250-12146×2iBJ7#..MTM198411-199001

main90250-12216iBJ7#..MTM198411-199001

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×4iLJ71198510-199001

33112AADAPTER, TRANSFER

main36117-60020iBJ7#..MTM198411-198703

main36117-60021iBJ7#..MTM198703-199001

main36117-60050iLJ71198510-199001

33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)

main90250-12216×2iBJ7#,LJ71..MTM198411-199001

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLJ71198510-199001

main33118-36020iBJ7#..MTM198411-198708

main33118-36021iBJ7#..MTM198708-199001

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLJ71198510-199001

main33119-36020iBJ7#..MTM198411-198808

main33119-36040iBJ7#..MTM198808-199001

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-36010iLJ71198510-199001

33131RETAINER, BEARING, FRONT(MTM)

main33131-35030iLJ71198510-199001

main33131-60030iBJ7#198411-198510

main33131-60050iBJ7#..MTM198510-199001

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-28004iBJ7#198411-198510

main90311-32012iLJ71198510-199001

main90311-32013iBJ7#..MTM198510-199001

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iLJ71198510-199001

main33151-60010iBJ7#..MTM198411-199001

33449BMAGNET, TRANSMISSION

main33449-35010iLJ71198510-199001

9011908332

main90119-08332

9011910186

main90119-10186

9011910337

main90119-10337

9161160820

main91611-60820

9161161030

main91611-61030

9161161045

main91611-61045

9161961250

main91619-61250

9161961255

main91619-61255

9165161032

main91651-61032

27 parts on this diagram · 2 diagrams in section
