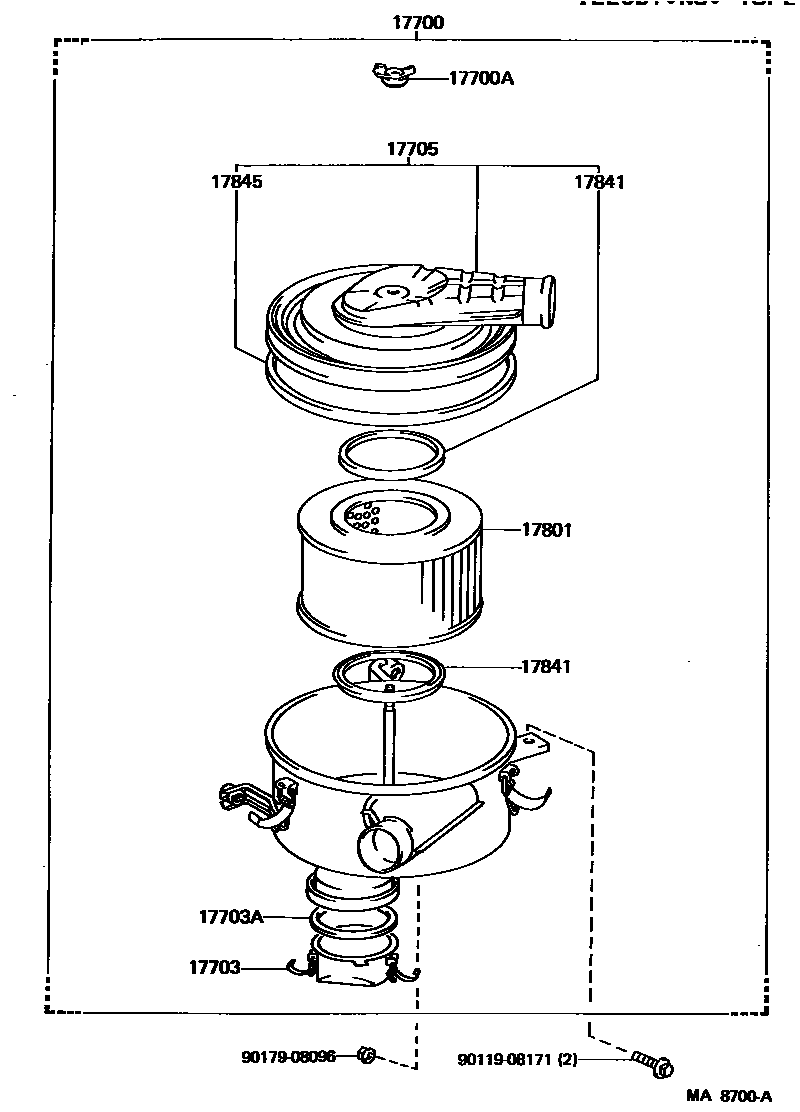

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-54321i2LT..LJ71198510-199001

main17700-58160i3B..BJ70,73198411-198608

main17700-58170i13BT,3B..BJ7#198510-199001

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i13BT,3B..BJ7#198411-199001

main94271-00800i2LT..LJ71198510-199001

17703CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER

main17703-68010i13BT..BJ71,74198510-199001

sub17703-17010

17703AGASKET(FOR BOTTOM AIR CLEANER FILTER CASE)

main90430-98001i13BT..BJ71,74198510-199001

17705CAP SUB-ASSY, AIR CLEANER

main17705-61090i13BT,3B..BJ7#198411-199001

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31050i2LT..LJ71198510-199001

main17801-68020i13BT,3B..BJ7#198411-199001

17841GASKET, FILTER ELEMENT

main17841-68010i13BT,3B..BJ7#198411-199001

17845GASKET, AIR CLEANER CAP

main17845-61011i13BT,3B..BJ7#198411-199001

9011908171

main90119-08171

9017908096

main90179-08096

10 parts on this diagram · 4 diagrams in section
