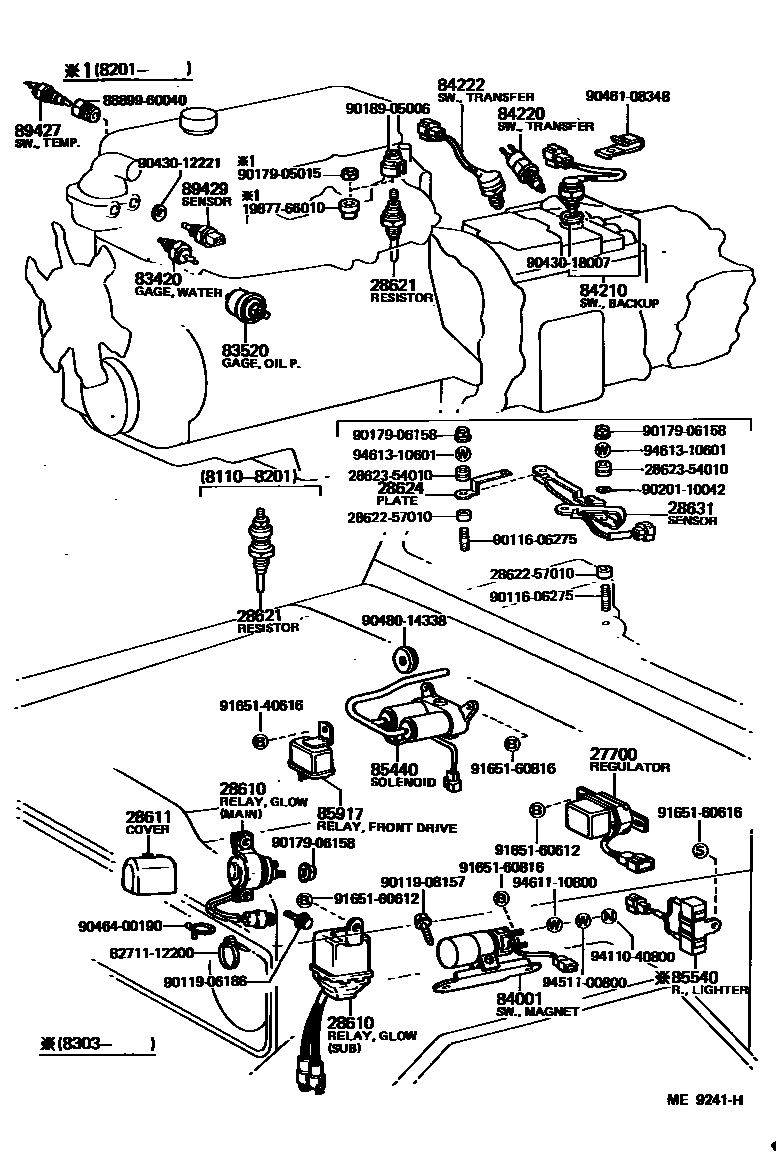

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1

27700REGULATOR ASSY, GENERATOR

main27700-57010i2B,3B..BJ4#198008-198410

28610RELAY ASSY, INTAKE HEATER OR GLOW PLUG

main28610-46040i2B..BJ4#198008-198104

main28610-46041i2B..BJ4#198104-198110

main28610-54180i2B,3B..BJ4#198110-198410

SUB

main28610-57030i2B,3B..BJ4#198110-198410

MAIN

28611COVER, GLOW PLUG RELAY

main28611-54011i2B,3B..BJ4#198110-198410

28621RESISTOR, GLOW PLUG

main28621-57010i2B..BJ4#198110-198201

main28621-57011i2B,3B..BJ4#198201-198410

28624PLATE, CURRENT SENSOR

main28624-57010i2B,3B..BJ4#198110-198410

28631SENSOR, GLOW PLUG CURRENT

main28631-57010i2B,3B..BJ4#198110-198410

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iBJ4#198008-198410

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-55020iBJ4#198008-198301

main83520-60020iBJ4#198301-198410

84001SWITCH ASSY, MAGNET

main38630-60030iBJ4#198008-198410

84210SWITCH ASSY, BACK-UP LAMP

main84210-60010iBJ4#198008-198210

main84210-60021iBJ4#198210-198410

84220SWITCH ASSY, TRANSFER LEVER SELECT

main84210-14010iBJ4#198008-198410

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60010iBJ4#198008-198210

main84222-60020iBJ4#198210-198302

main84222-60021iBJ4#198302-198410

85440SOLENOID ASSY, FRONT DRIVE

main85440-60020iBJ4#198008-198410

85540RESISTANCE ASSY, CIGARETTE LIGHTER

main85540-36030iBJ4#198008-198110

main85540-60010iBJ4#198303-198410

85917RELAY, FRONT DRIVE

main85917-60020iBJ4#198008-198410

89427SWITCH, TEMPERATURE DETECT

main83430-96440iBJ4#..V198008-198410

W/COOLER(THERMO SWITCH)

89429SENSOR, OIL TEMPERATURE

main89422-30020iBJ4#198110-198410

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8889960040COVER, EVAPORATOR

main88899-60040

9011606275

main90116-06275

9011906186

main90119-06186

9011908157

main90119-08157

9017905015

main90179-05015

9017906158

main90179-06158

9018905006

main90189-05006

9020110042

main90201-10042

9043012221

main90430-12221

9043018007

main90430-18007

9046108348

main90461-08348

9046400190

main90464-00190

9048014338

main90480-14338

9165140616

main91651-40616

9165160612

main91651-60612

9165160616

main91651-60616

9165160816

main91651-60816

9411040800

main94110-40800

9451100800

main94511-00800

9461110800

main94611-10800

9461310601

main94613-10601

42 parts on this diagram · 3 diagrams in section
