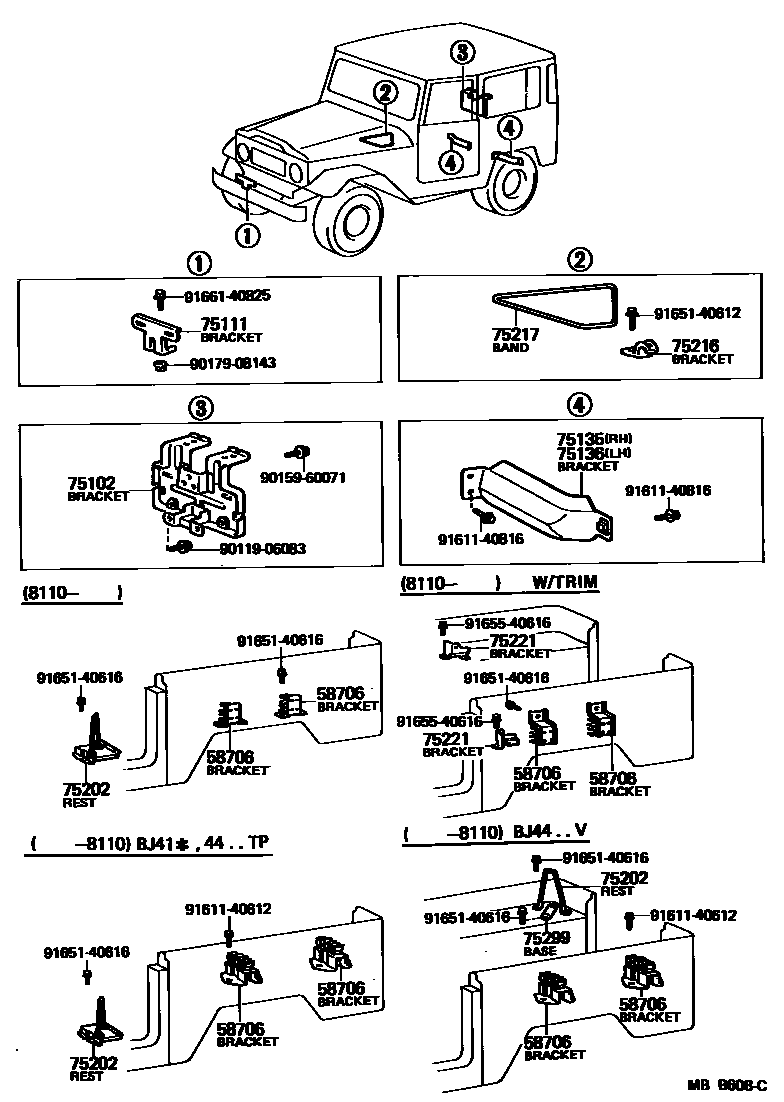

TOOL BOX & LICENSE PLATE BRACKET

58706BRACKET SUB-ASSY, JACK HANDLE

main58305-90301iBJ4#198008-198110

main58706-90800iBJ4#..40K,50K198110-198410

main58706-90802iBJ4#..25K,35K198110-198410

LUXURY SPEC

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-90305iBJ4#..TPC198008-198410

main75102-90306iBJ4#..V198008-198410

75111BRACKET, FRONT LICENSE PLATE

main75101-60011iBJ4#198008-198410

main75101-60020iBJ4#198008-198110

W/WINCH

75135BRACKET, COMBINATION REAR LAMP, RH

main75136-60020iBJ44,46198008-198410

main75136-60040iBJ41,42198008-198410

75136BRACKET, COMBINATION REAR LAMP, LH

main75136-60020iBJ44,46198008-198410

main75138-60020iBJ41,42198008-198410

75202REST SUB-ASSY, JACK

main75202-90300iBJ41,42..40K198008-198410

main75202-90301iBJ44..VKC198008-198110

75216BRACKET, TOOL BAG BAND

main75216-90301iBJ4#..40K,50K198008-198410

75217BAND, TOOL BAG

main75217-90300iBJ4#..40K,50K198008-198410

75221BRACKET, TOOL BOX

main75221-90800iBJ4#..25K,35K198110-198410

RH

main75221-90800iBJ4#..25K,35K198110-198410

LUXURY SPEC,RH

main75222-90800iBJ4#..25K,35K198110-198410

LH

main75222-90800iBJ4#..25K,35K198110-198410

LUXURY SPEC,LH

75299BASE, JACK HOLDER

main75299-90800iBJ44,46..VKC198008-198410

9011906083

main90119-06083

9015960071

main90159-60071

9017908143

main90179-08143

9161140612

main91611-40612

9161140816

main91611-40816

9165140612

main91651-40612

9165140616

main91651-40616

9165540616

main91655-40616

9166140825

main91661-40825

19 parts on this diagram · 1 diagram in section
